RAM-S-D-111U

RAM® Pin-Lock™ Universal Marine Electronic Mount - RAM-S-D-111U

In Stock  - Ships for Free!

OVERVIEW

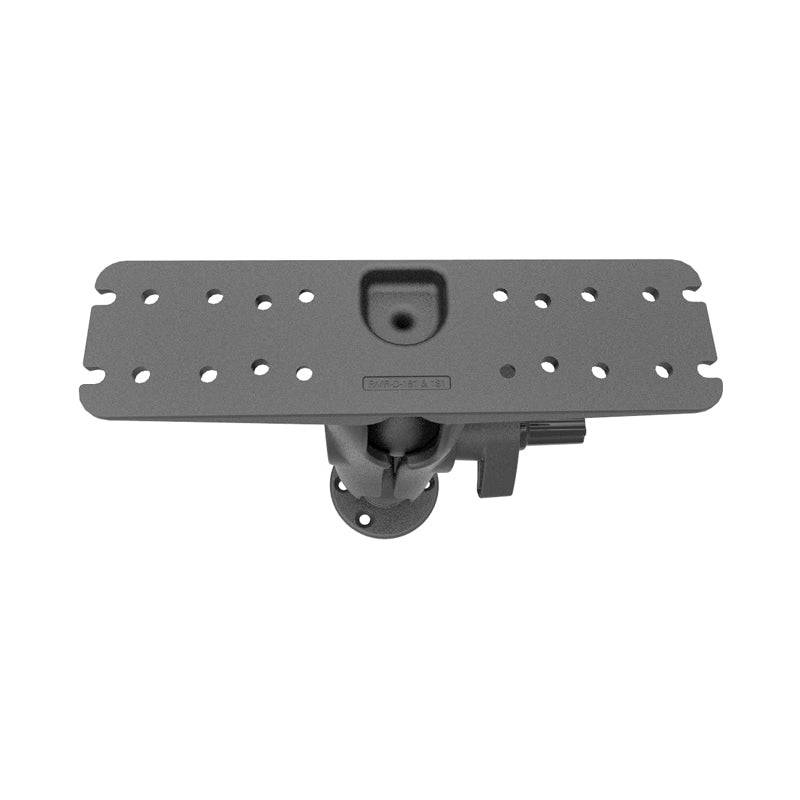

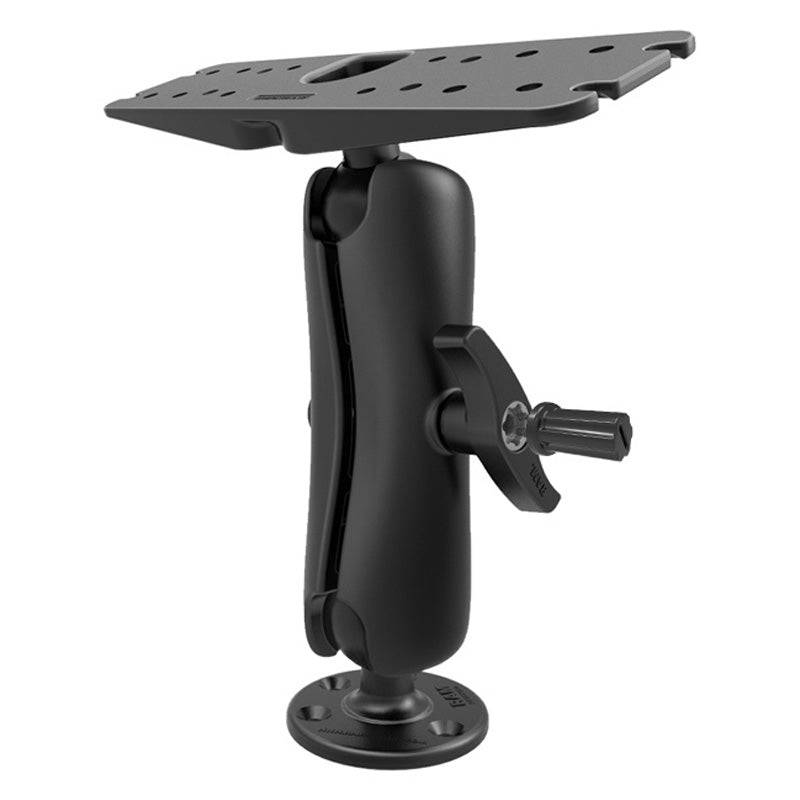

The RAM-S-D-111U consists of a 3.68" diameter round base, STANDARD LENGTH double socket arm, 11" x 3" rectangular base, RAM mixed combination Pin-Lock security nut and key knob. The round base contains pre-drilled holes, including two holes at 180 degrees and three holes at 120 degrees. The rectangle base contains different combinations of pre-drilled holes which will match up to many electronic devices and mounts, including Marine GPS, CB Radios, Ham Radios, Gimbal Brackets and more.

RAM® Pin-Lock security solutions are designed to withstand the harshest environments where RAM® Mounts are commonly used. With an emphasis on aesthetics and function, RAM® security nuts/knobs are low profile and only add a small amount of additional bulk to your system when compared to the standard knob included. At a fraction of the cost of currently available keyed locking knobs, the additional peace of mind and tamper resistance comes at a very affordable price.

Overall Length:
11.5"

Weight Capacity:
Up to 6 lbs.

Pdf1412 Plate Hole Patterns

HARDWARE INCLUDED

(1) RAM Pin-Lock Security Key
(4) .312" x .187" Shoulder Washers

PRODUCT DIMENSIONS

Overall Height: 11.5"

SOCKET-TO-SOCKET LENGTH

6.88"

HOLE PATTERN

See Drawings

PLATE SIZE

Top Plate: 3" x 11"
Bottom Plate: 3.68" Diameter

BALL SIZE

D Size (2.25")

WEIGHT CAPACITY

Standard Use: 6 lbs
Heavy-Duty Use: 5 lbs

MATERIALS

Marine-grade aluminum

PACKAGING TYPE

Poly Bag

WEIGHT

4.47 lbs.

ADDITIONAL INFORMATION

The 11" x 3" rectangle base is a universal mounting bracket with a selection of mounting hole locations. In certain applications additional holes may need to be drilled for proper fit with your electronic device.

Garmin

echoMAP 70DV

ECHOMAP Ultra 122sv

ECHOMAP Ultra 126sv

GPSMAP 740s

GPSMAP 1020xs

GPSMAP 1040xs

GPSMAP 1222/xsv Touch

GPSMAP 1242xsv/Touch

Fishfinders and GPS Chartplotters

Humminbird

800 Series

Fishfinders and GPS Chartplotters

Lowrance

HDS Carbon 9

HDS Carbon 12

Hook²-12

Elite-9 CHIRP

Elite-9 Ti

Elite-9 Ti²

Elite-12 Ti

Elite-12 Ti²

Fishfinders and GPS Chartplotters

Raymarine

Axiom 7

Axiom 9

C120

Fishfinders and GPS Chartplotters
