RAM® Pin-Lock™ Universal Marine Electronic Mount with Gimbal Knob - RAM-SG-D-111U

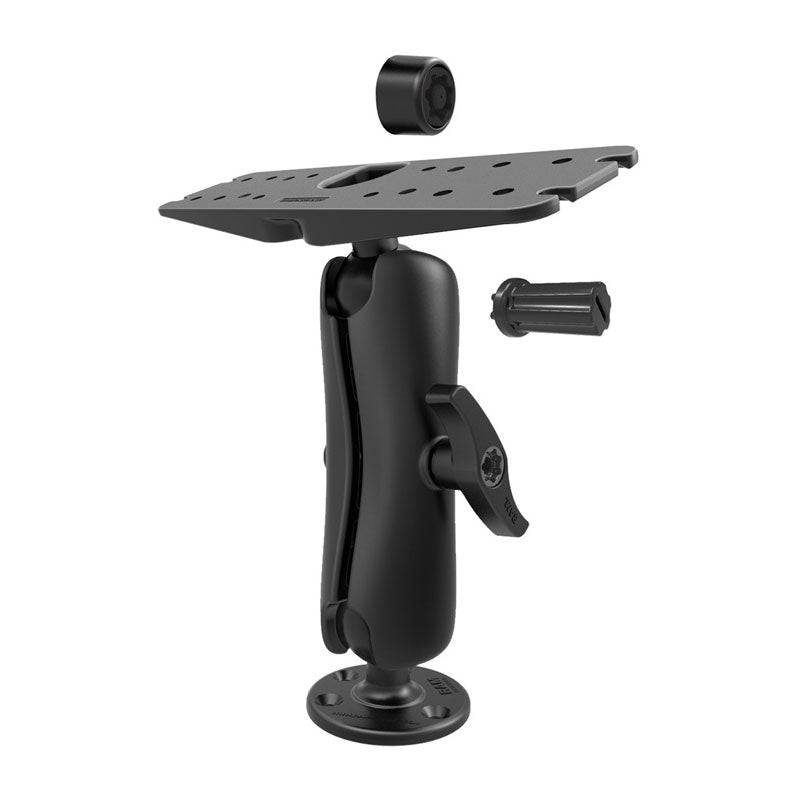

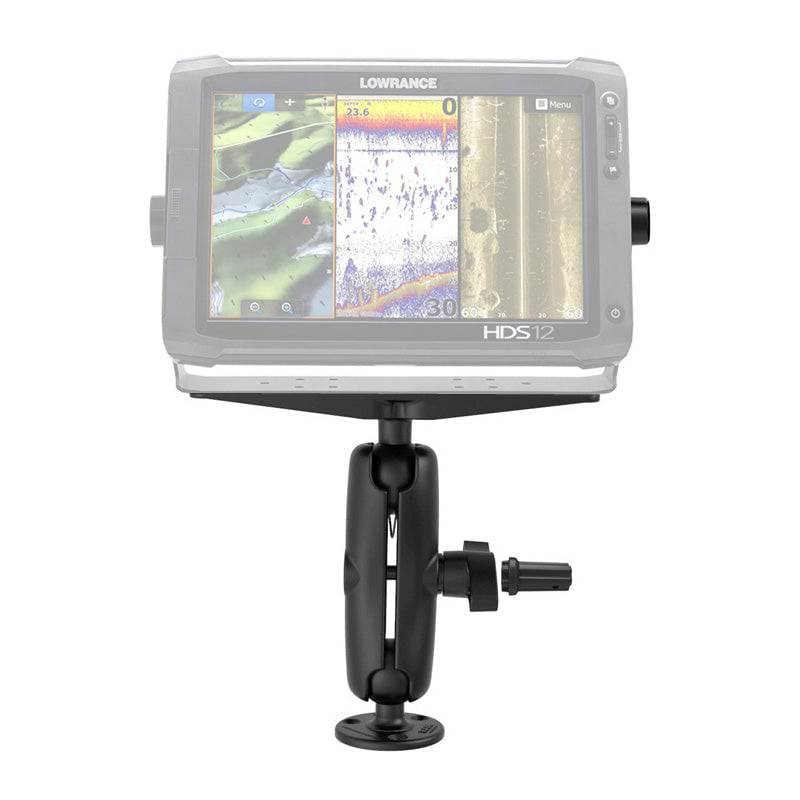

The RAM-SG-D-111U consists of a 3.68" diameter round base, STANDARD LENGTH double socket arm, 11" x 3" rectangular base, RAM mixed combination Pin-Lock^™ security nut/knob and key knob for Gimbal Brackets. The round base contains pre-drilled holes, including two holes at 180 degrees and three holes at 120 degrees. The rectangle base contains different combinations of pre-drilled holes which will match up to many electronic devices and mounts.

Overall Height:
11.125"

Weight Capacity:
Up to 6 lbs.

HARDWARE INCLUDED

(2) RAM Pin-Lock Security Keys
(4) .312" x .187" Shoulder Washers

PRODUCT DIMENSIONS

Overall Height: 11.5"

SOCKET-TO-SOCKET LENGTH

6.88"

HOLE PATTERN

See Drawings

PLATE SIZE

Top Plate: 3" x 11"
Bottom Plate: 3.68" Diameter

BALL/SOCKET SIZE

D Size (2.25")

WEIGHT CAPACITY

Standard Use: 6 lbs
Heavy-Duty Use: 5 lbs

MATERIALS

Marine-grade aluminum

PACKAGING TYPE

Poly Bag

WEIGHT

4.47 lbs.
