RAM-101-B-SAM52PD-V7B1U

RAM® Power & Data Mount for Samsung Tab Active Pro with Backing Plate - RAM-101-B-SAM52PD-V7B1U

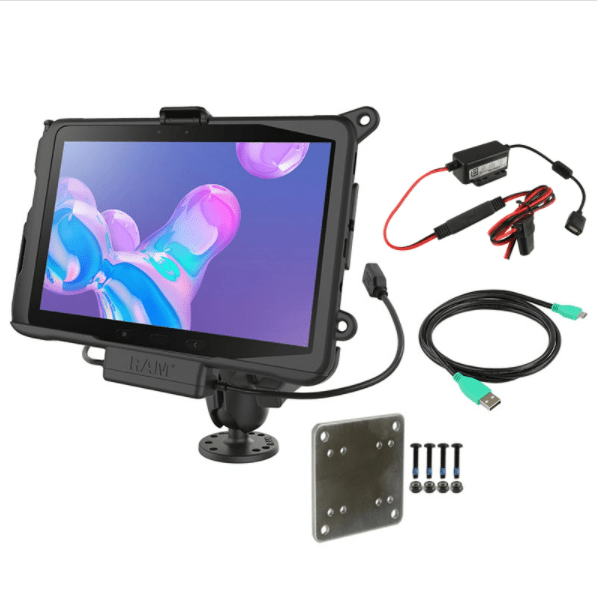

  • Kit includes RAM® EZ-Roll'r™ power and data cradle for Tab Active Pro, C size double ball mount with round plates, backing plate adapter, and charger
  • Powered cradle provides charging and data transfer capabilities for Tab Active Pro through integrated pogo pin connector; can be used in portrait or landscape mode
  • Access to speakers, mics, and headphone jack remain while device is docked
  • Compatible with factory skin and RAM® Skin™
  • Backed by a 3-year warranty

OVERVIEW

This Samsung Tab Active Pro kit includes everything you need to keep the device powered and secure. It includes the RAM® EZ-Roll’r powered/data cradle, C size double ball mount with two round plates and short double socket arm, backing plate adapter, GDS® modular hardwire charger, GDS® USB 2.0 cable, and cable clamp. The RAM® EZ-Roll’r powered/data cradle for the Samsung Tab Active Pro features integrated pogo pins that power the device. These pogo pins are compatible with both the RAM® Skin for the Tab Active Pro and the factory Samsung skin that’s included with the device. In addition, this cradle works perfectly with the RAM® Skin while utilizing the GDS® Hand-Stand or GDS® shoulder strap. While keeping the Tab Active Pro secure, the RAM® EZ-Roll’r powered cradle also leaves the device’s speakers, mics, and headphone jack exposed and usable. For mounting, pair the cradle with RAM® round ball bases. Includes a Type-A female pigtail connector for data or to connect a USB peripheral such as a scanner.

HARDWARE INCLUDED

(1) 3" x 3" Steel Backing Plate
(4) #10-24 x 1" Thread Locking Screws
(4) #10-24 Nylock Nuts


SOCKET-TO-SOCKET LENGTH

2.5"


HOLE PATTERN

4-Hole AMPS: 1.181" x 1.496"
3-Hole 120-Degree: 1.812" Diameter


BALL/SOCKET SIZE

C Size (1.5")


WEIGHT CAPACITY

Standard Use: 4 lbs
Heavy-Duty Use: 3 lbs


MATERIALS

Steel
Marine-grade aluminum
High strength composite


PACKAGING TYPE

Poly Bag


INPUT VOLTAGE

10V - 30V DC


OUTPUT VOLTAGE

5-9VDC


OUTPUT CURRENT

2.5A max


INPUT CONNECTOR

mUSB 2.0


INPUT CABLE LENGTH

.21 Meter


OUTPUT CONNECTOR

USB 1.1 Type A


OUTPUT CABLE LENGTH

.2 Meters


TRANSFER SPEED

12Mbps


OPERATING TEMPERATURE

-10°C to +70°C


STORAGE TEMPERATURE

-40°C to +70°C


COMPLIANCE

Over Voltage Protection
Short Circuit Protection
Reverse Polarity Protection
RoHS Compliance
WEEE Compliance
SAE J-1113-5 Load Dump (Transient Voltage)
Moisture Resistant


CERTIFICATIONS

CE Certification
e-Mark Certification
RCM Certification
FCC Certification


WEIGHT

2.292 lbs.


WARRANTY STATUS

3 year warranty

Samsung

Galaxy Tab Active Pro
