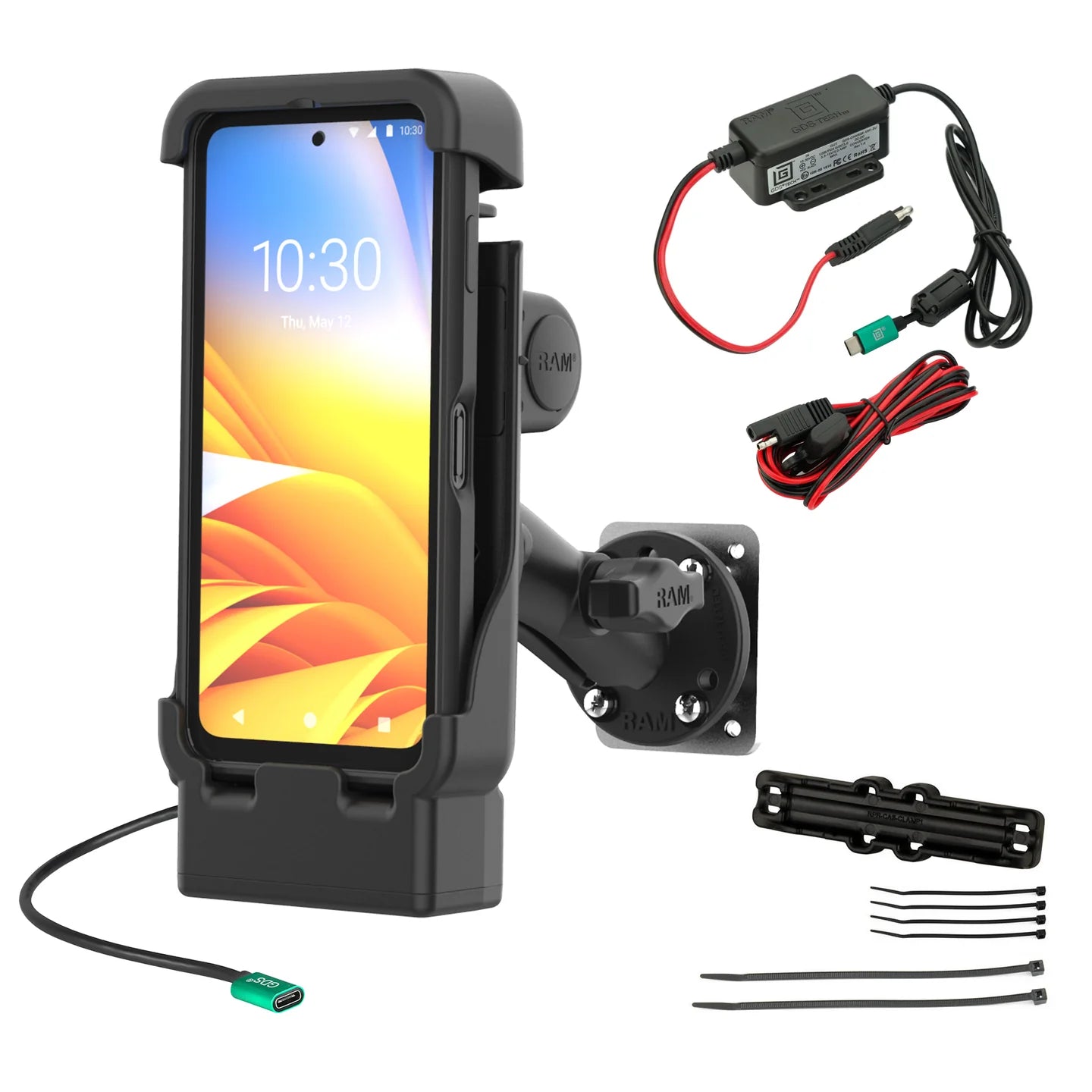

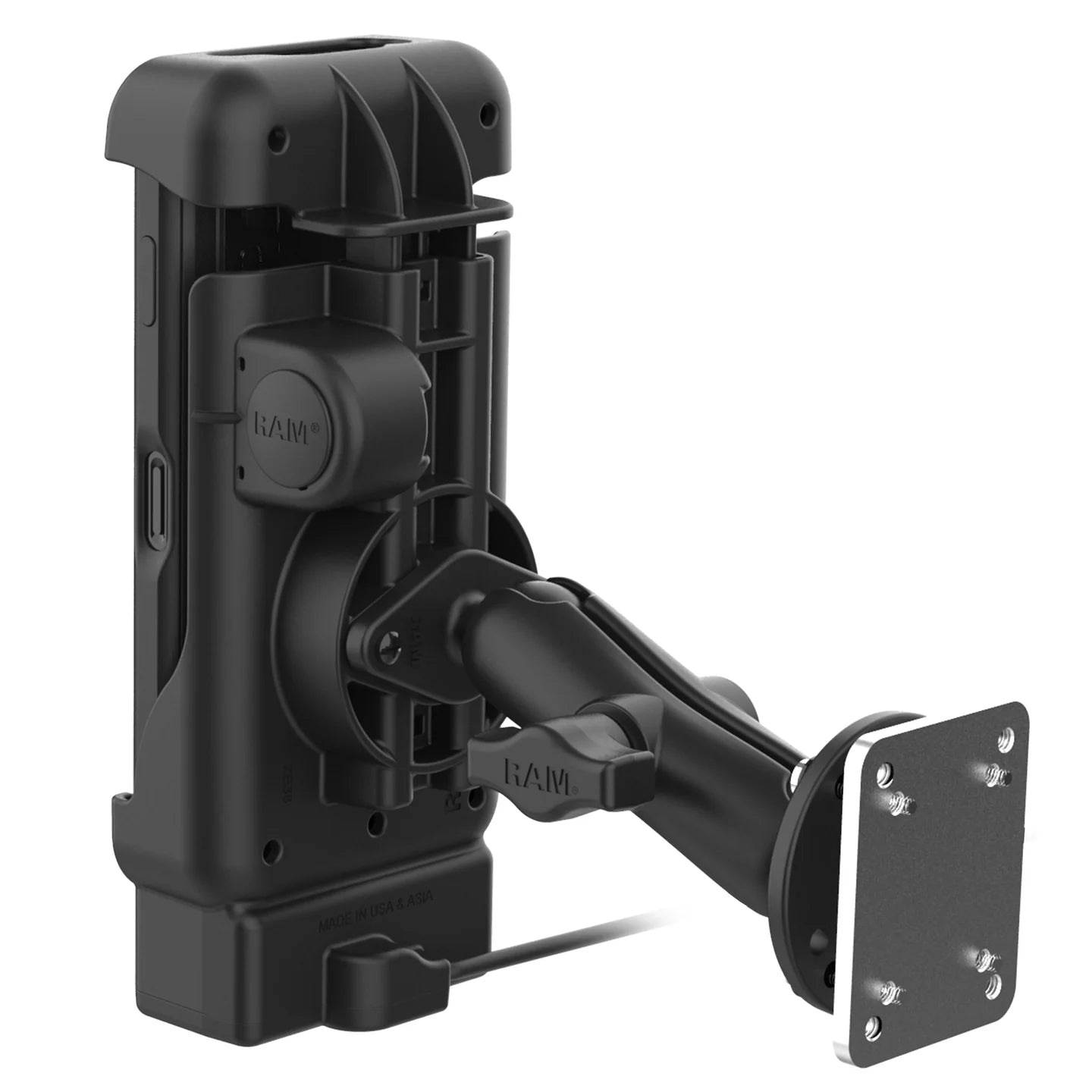

RAM® Powered Dock & Dashboard Mounting Kit for Zebra EM45 - RAM-B-101-225B2-ZE38-V3C-2U

The RAM® Powered Dock & Dashboard Mounting Kit for Zebra EM45 (RAM-B-101-225B2-ZE38-V3C-2U) is a comprehensive kit of everything needed to deploy the Zebra EM45 in your fleet. It contains one RAM® Powered Vehicle Dock and double ball mount with backing plate. The dock uses a USB Type-C female power connector and provides power to the device via direct USB-C connection that's tested for more than 250,000 cycles.

The spring-loaded design of this dock allows for a quick one-handed insertion or removal of your device while the precise design of the dock body minimizes human error and port damage when docking the device onto the USB-C male connector. The RAM® Vehicle Dock is backed by a 3-year warranty.

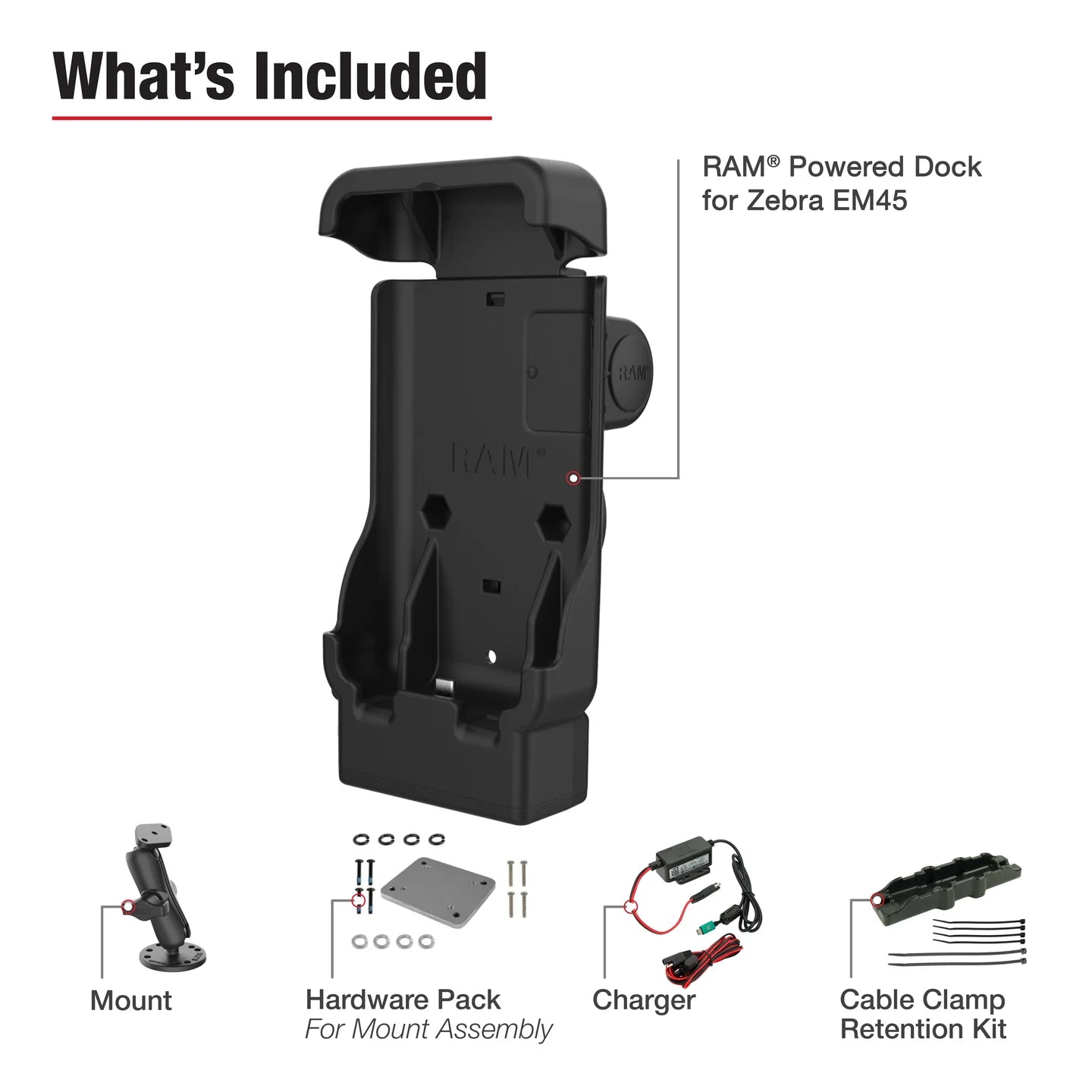

• Bundle includes the RAM® Vehicle Dock, B size double ball mount with medium arm, backing plate adapter, and cable clamp

• Spring-loaded powered dock featuring USB-C device connection designed for the Zebra EM45

• Back cavity accommodates OEM ergonomic accessories

• Made of high-strength composites for durability and reliability in the most demanding environments

• Backed by a 3-year warranty

hardware included:
Assembly Hardware
(1) 2.10" x 2.60" Steel Backing Plate
(4) #8-32 x 1" Screws
(4) #8 Split Lock Washers
(4) #8 Flat Washers

socket to socket length:
3"

ball size:
B Size (1")

weight capacity:
Standard Use: 2 lbs
Heavy-Duty Use: 1 lb

materials:
Steel
Marine-grade aluminum
High strength composite

packaging type:
Poly Bag

input voltage:
10-30VDC

output voltage:
5-15VDC

output current:
3A max

input cable length:
1.2 Meters including 2 pole flat marine connector

operating temperature:
-10°C to +70°C

storage temperature:
-40°C to +70°C

regulatory:
Overvoltage/Load Dump Compliance: Meets SAE J-1113

certifications:
Integrated Short Circuit Protection
FCC, Industry Canada, CE, WEEE, E-Mark and RoHS Compliant
USB 2.0 BC 1.2 DCP Support

Zebra

EM45

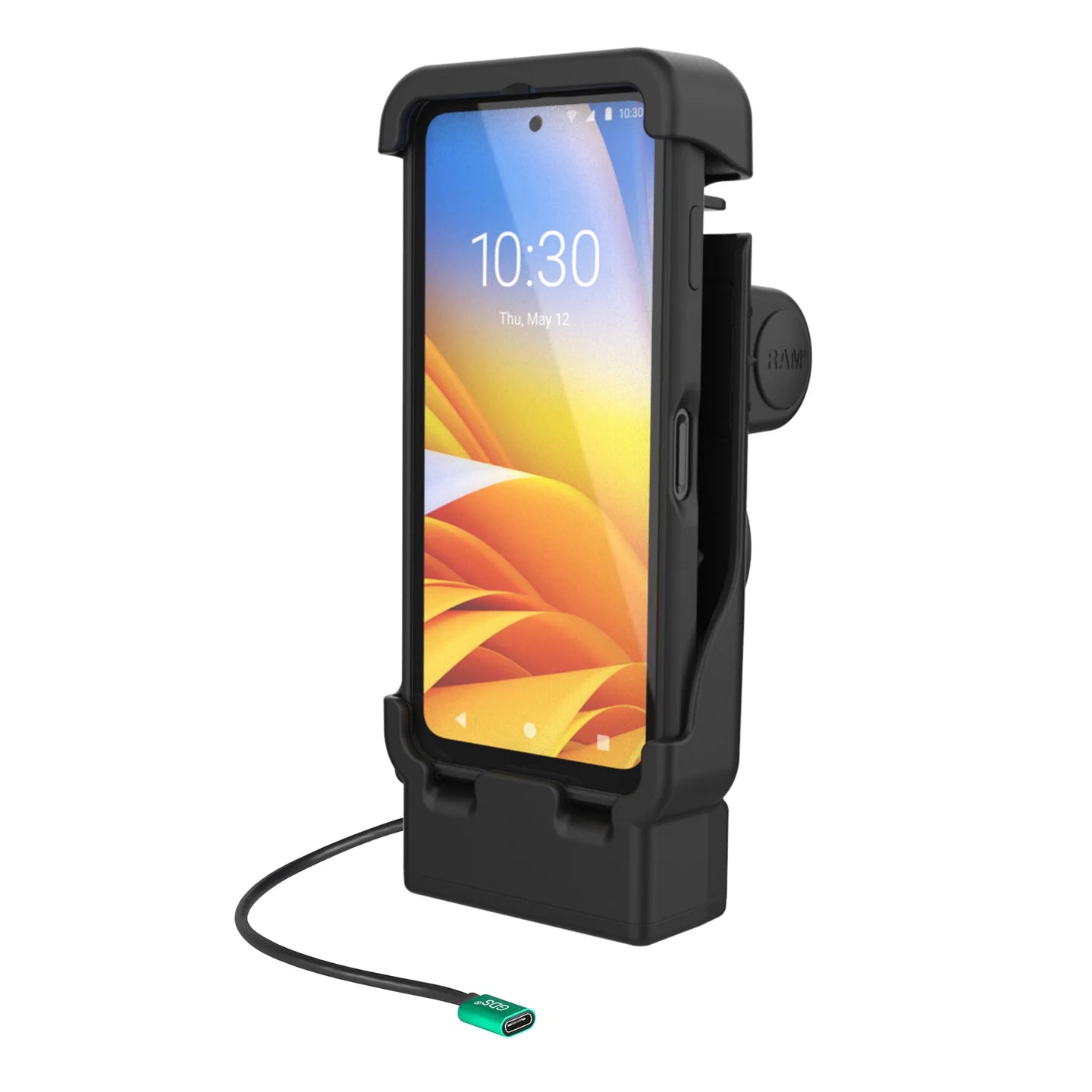

RAM® Powered Vehicle Dock for Zebra EM45 - RAM-HOL-V15-ZE38PU

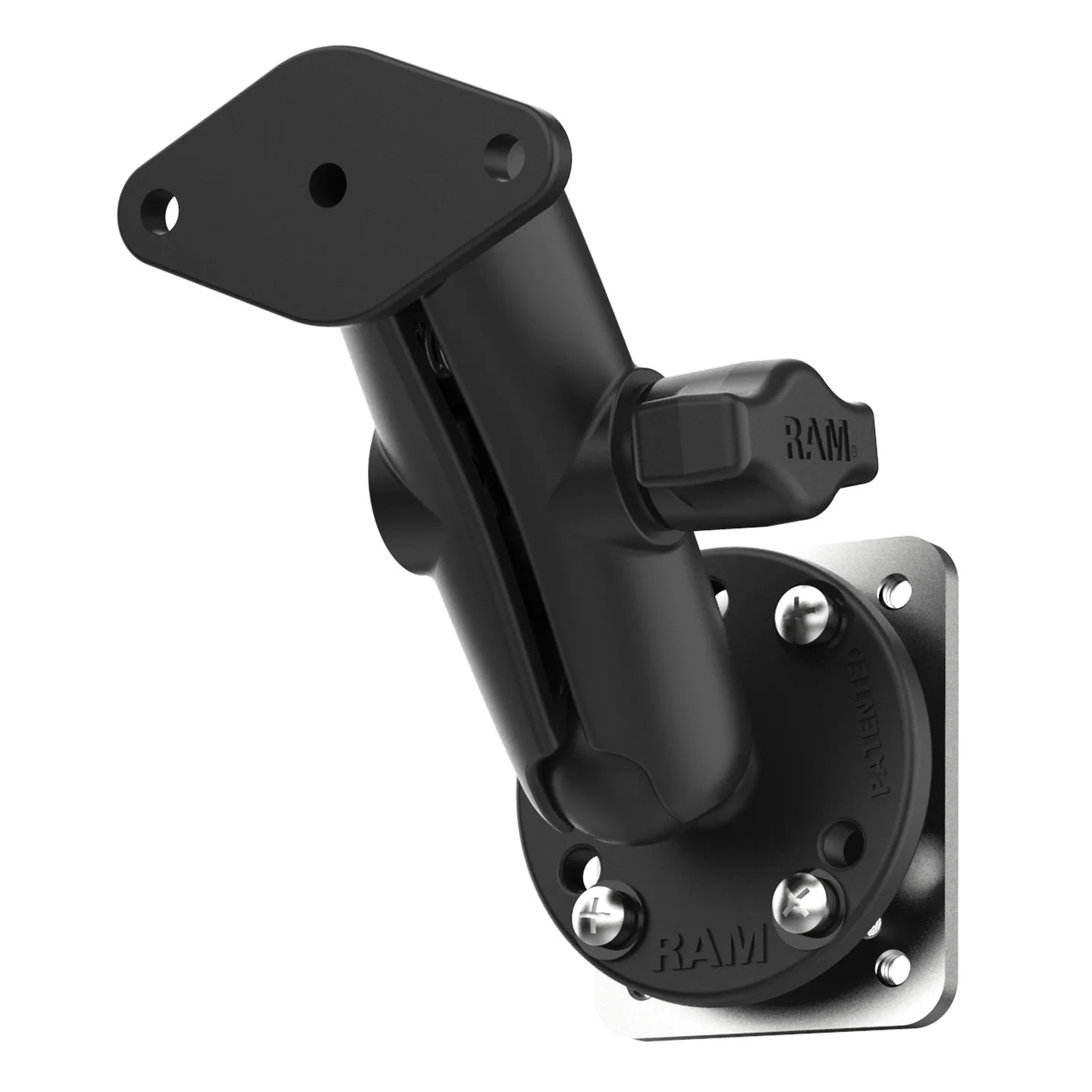

RAM® Double Ball Mount with Backing Plate & Diamond Plate - RAM-B-138U-225B2

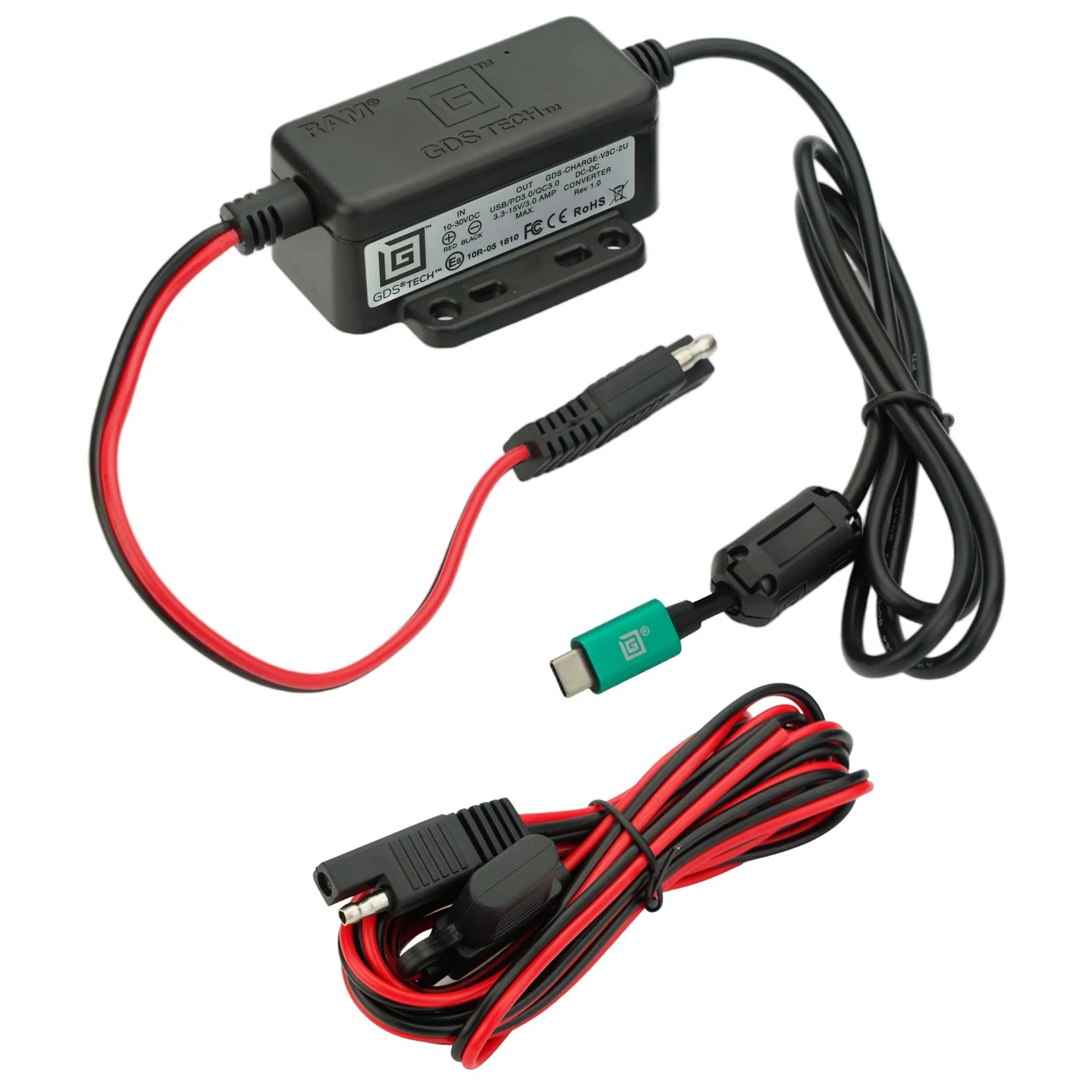

GDS® Modular 10-30V Power Delivery Hardwire Charger with Male USB Type-C - RAM-GDS-CHARGE-V3C-3U

GDS® mUSB & Type-C Cable Clamp - RAM-GDS-CAB-CLAMP1U
