RAM® Powered Dock for Samsung Tab Active5 & 3 with Speaker - RAM-HOL-SAM60PD-AUDU

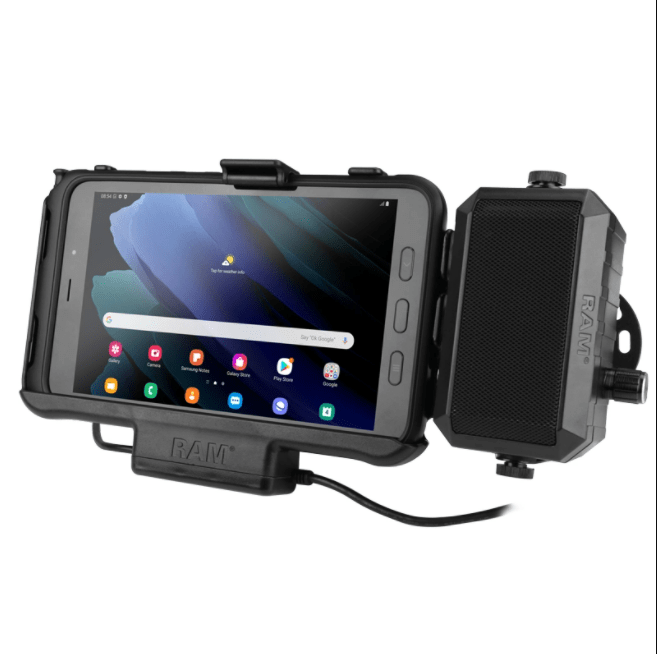

This RAM^® Powered Dock for Samsung Tab Active5, Tab Active3 & 2 will keep your device powered, as well as connected to the GDS^® Audio^™ amplified speaker with Push-to-Talk (PTT) breakout feature. This rugged speaker connects to the dock using a 3.5mm Audio connector to USB Type-A adapter. The USB power and speaker connect the device through the pogo pin interface on the tablet and can be easily rotated for both portrait and landscape operation of the device.

This dock will support factory skin or RAM^® Skin^™, as well as GDS^® Hand-Stand^™ and shoulder strap accessories. Access to the stylus remains while the device is docked. Included is a set of four nuts and bolts to connect the cradle to any RAM^® components containing the universal AMPS hole pattern. Also included is the mUSB female pigtail, GDS^® USB 2.0 cable, cable clamp, and zip ties. Look to the RAM-GDS-CHARGE-V7BU hardwire charger or the RAM-GDS-CHARGE-USB2QCCIG cigarette vehicle charger for supplying power. This powered dock for the Samsung Tab Active5, 3 and 2 has been designed to meet the demands of field workers in a variety of applications including transportation, field sales, logistics, manufacturing, and much more.

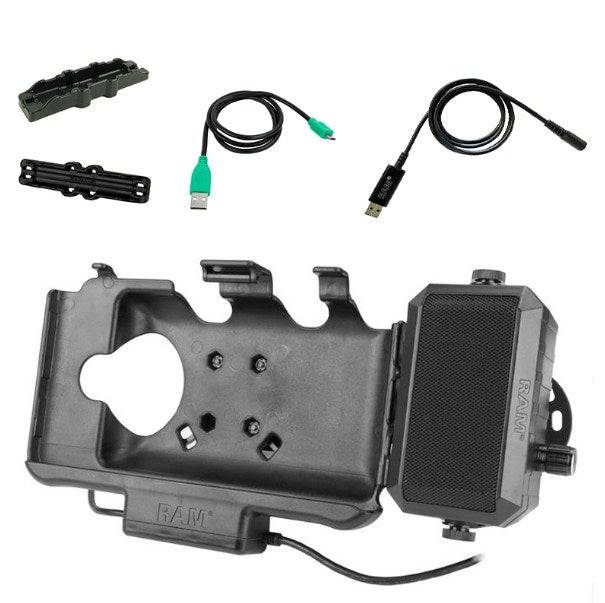

HARDWARE INCLUDED

Assembly Hardware
mUSB 2.0 Cable
(2) USB Cable Clamps
(6) Small Cable Ties
(4) Large Cable Ties

PRODUCT DIMENSIONS

Width: 9.24"
Height: 6.34"
Depth: 2.57"

SPEAKER SPECIFICATIONS

Independently adjustable volume knob
Max volume level: 99dB
8Ω / 10W rated speaker

HOLE PATTERN

4-Hole AMPS: 1.181" x 1.496"

MATERIALS

High strength composite
Powder coated steel

PACKAGING TYPE

Poly Bag

OUTPUT CABLE LENGTH

.21 Meters

WEIGHT

2.35 lbs.
