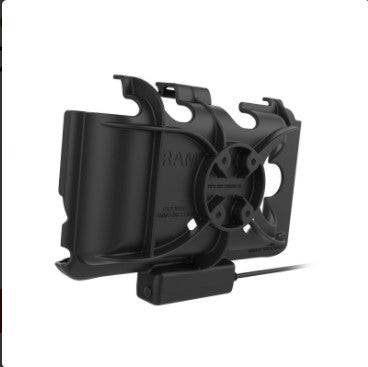

RAM® Powered Holder for Tab Active5 & 3 with CLA Vehicle Charger - RAM-HOL-SAM60P-CIGU

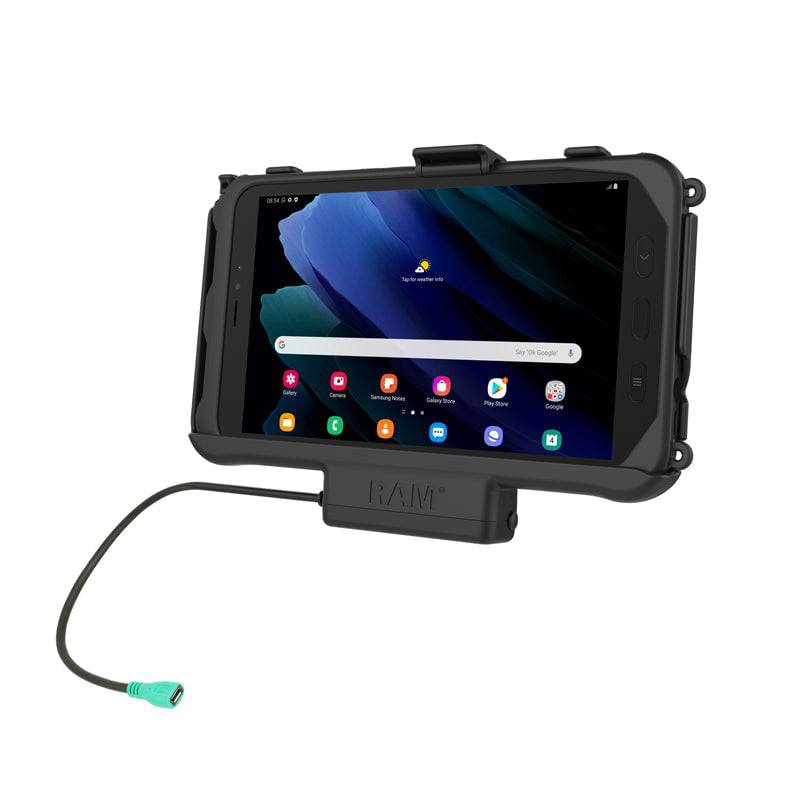

This RAM® EZ-Roll’r™ powered cradle supports continuous charging for the Samsung Tab Active5, Tab Active3 and 2 and has been designed to meet the demands of field workers in a variety of applications including transportation, field sales, logistics, manufacturing, and much more. Power capabilities are provided to the device through integrated pogo pins that match the pogo pads of the Tab Active5, 3 and 2. Included in this bundle is a GDS® 2-port USB Type-A CLA charger, a 0.75 meter long mUSB extension cable, and a cable clamp for an all-in-one powered mounting solution for your Samsung Galaxy Tab Active5, 3 and 2.

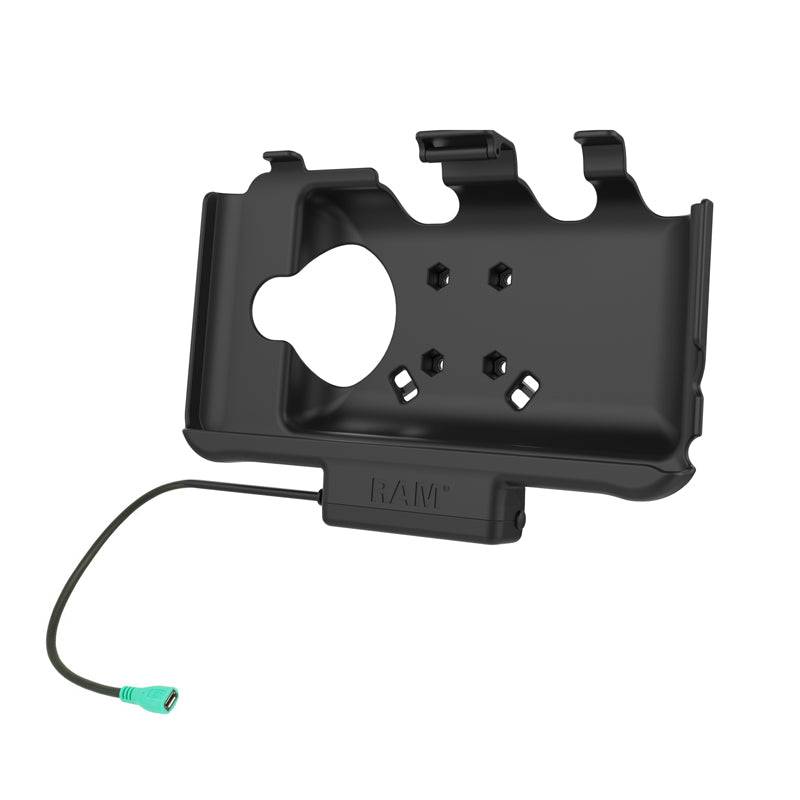

• RAM® EZ-Roll'r™ Powered form-fit cradle provides charging capabilities for the Samsung Galaxy Tab Active5, Tab Active3 and 2 through integrated pogo pin connector and mUSB cable

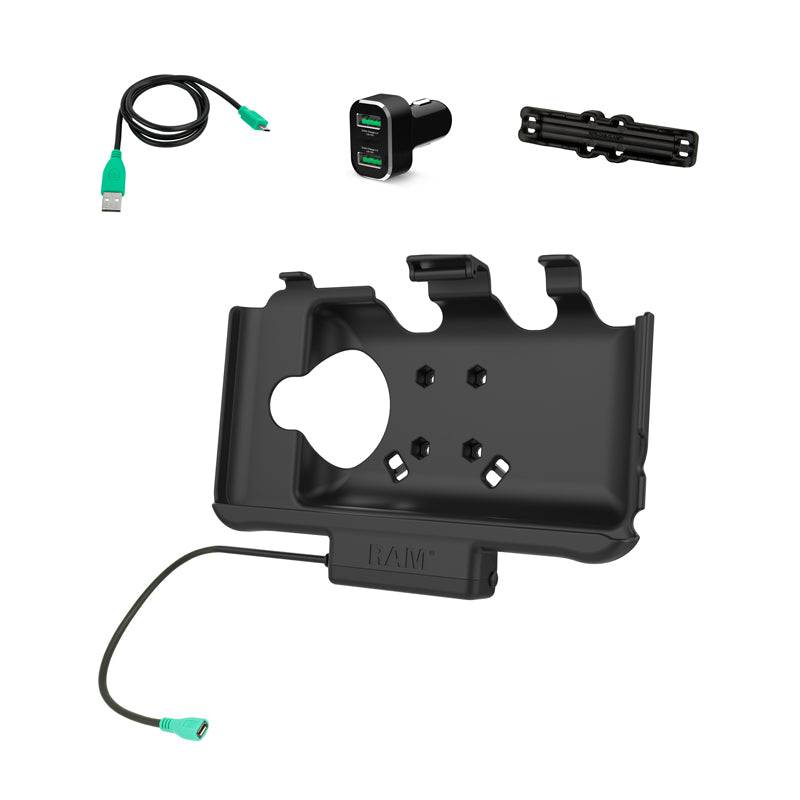

• Includes a GDS® 2-port USB Type-A CLA charger, a 0.75 meter long mUSB extension cable, and a cable clamp
• Compatible with factory protective case, or the RAM® Skin™

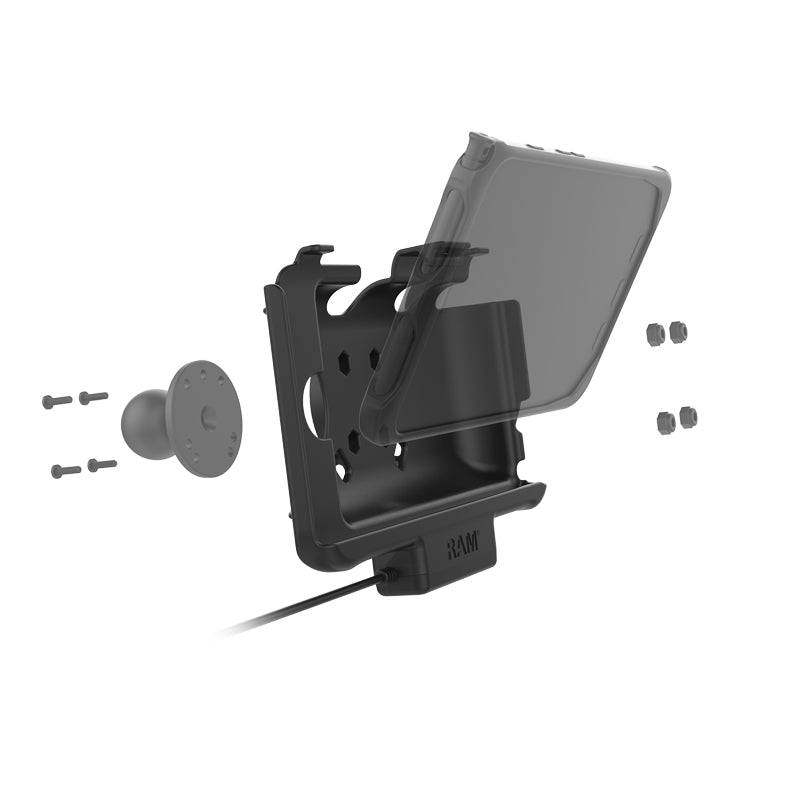

• Can be mounted in portrait or landscape to any flat vertical or horizontal surface
• Compatible with GDS® Hand-Stand™ accessory attachment

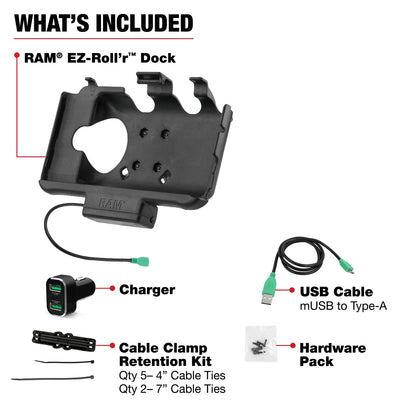

HARDWARE INCLUDED

(4) #8-32 x 5/8" Machine Screws
(4) #8-32 Nylock Nuts
(1) GDS® Genuine USB 2.0 Straight Cable
(1) Optional Cable Clamp Housing
(2) Large Cable Ties
(5) Small Cable Ties
(1) CLA Car Charger

PRODUCT DIMENSIONS

Width: 9.24"
Height: 6.34"
Depth: 2.57"

HOLL PATTERN

4-Hole AMPS: 1.181" x 1.496"

MATERIALS

High strength composite

PACKAGING TYPE

Poly Bag

INPUT VOLTAGE

12V - 18V DC

POWER OUTPUT

36W

PORTS

(2) USB Type-A Female

CERTIFICATIONS

FCC, CE, WEEE, and RoHS Compliant

WEIGHT

0.85 lbs.

WARRANTY STATUS

3 year warranty
