      Home / Products / RAM® Powered Mount for Samsung Tab Active Pro with Backing Plate - RAM-101-B-SAM52P-V7B1U
      RAM® Powered Mount for Samsung Tab Active Pro with Backing Plate - RAM-101-B-SAM52P-V7B1U - OC Mounts

      RAM-101-B-SAM52P-V7B1U

      RAM® Powered Mount for Samsung Tab Active Pro with Backing Plate - RAM-101-B-SAM52P-V7B1U

      Out of Stock    ( Chat Live to get an ETA )

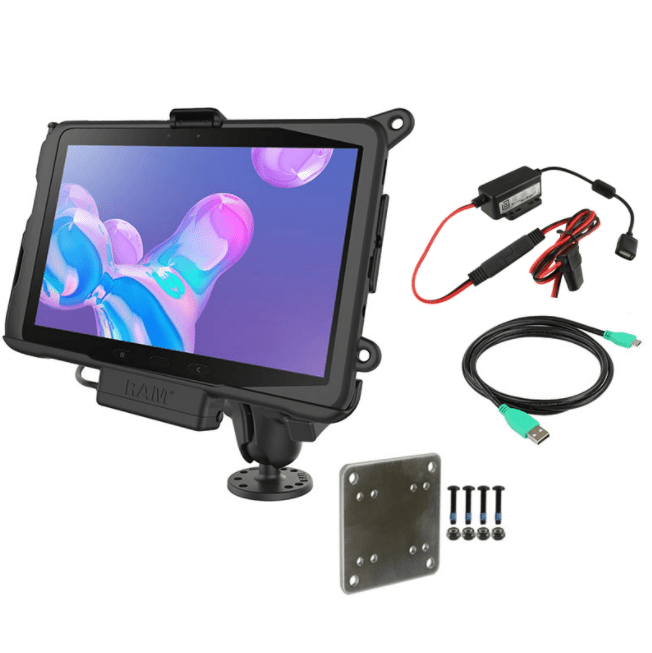

      • Kit includes RAM® EZ-Roll'r™ powered cradle for Tab Active Pro, C size double ball mount with round plates, backing plate adapter, and charger
      • Powered cradle provides charging capabilities for Tab Active Pro through integrated pogo pin connector; can be used in portrait or landscape mode
      • Access to speakers, mics, and headphone jack remain while device is docked
      • Compatible with factory skin and RAM® Skin™
      • Backed by a 3-year warranty

      OVERVIEW

      This Samsung Tab Active Pro kit includes everything you need to keep the device powered and secure. It includes the RAM® EZ-Roll’r™ powered cradle, C size double ball mount with two round plates and short double socket arm, backing plate adapter, GDS® modular hardwire charger, GDS® USB 2.0 cable, and cable clamp. The RAM® EZ-Roll’r™ powered cradle for the Samsung Tab Active Pro features integrated pogo pins that power the device. These pogo pins are compatible with both the RAM® Skin™ for the Tab Active Pro and the factory Samsung skin that’s included with the device. In addition, this cradle works perfectly with the RAM® Skin™ while utilizing the GDS® Hand-Stand™ or GDS® shoulder strap. While keeping the Tab Active Pro secure, the RAM® EZ-Roll’r™ powered cradle also leaves the device’s speakers, mics, and headphone jack exposed and usable. For mounting, pair the cradle with RAM® round ball bases. Includes a mUSB female pigtail for power.

      HARDWARE INCLUDED

       (1) 3" x 3" Steel Backing Plate
      (4) #10-24 x 1" Thread Locking Screws
      (4) #10-24 Nylock Nuts

      SOCKET-TO-SOCKET LENGTH

       2.5"


      HOLE PATTERN

       4-Hole AMPS: 1.181" x 1.496"
      3-Hole 120-Degree: 1.812" Diameter


      BALL/SOCKET SIZE

       C Size (1.5")


      WEIGHT CAPACITY

       Standard Use: 4 lbs
      Heavy-Duty Use: 3 lbs


      MATERIALS

       Steel
      Marine-grade aluminum
      High strength composite


      PACKAGING TYPE

       Poly Bag


      INPUT VOLTAGE

       10V - 30V DC


      OUTPUT VOLTAGE

       5-9VDC


      OUTPUT CURRENT

       2.5A max


      INPUT CONNECTOR

       mUSB 2.0


      INPUT CABLE LENGTH

       1.2 Meter


      OPERATING TEMPERATURE

       -10°C to +70°C


      STORAGE TEMPERATURE

       -40°C to +70°C


      COMPLIANCE

       Over Voltage Protection
      Short Circuit Protection
      Reverse Polarity Protection
      RoHS Compliance
      WEEE Compliance
      SAE J-1113-5 Load Dump (Transient Voltage)
      Moisture Resistant


      CERTIFICATIONS

       CE Certification
      e-Mark Certification
      RCM Certification
      FCC Certification


      WEIGHT

       2.25 lbs.


      WARRANTY STATUS

       3 year warranty
      RAM® EZ-Roll'r™ Powered Cradle For Samsung Galaxy Tab Active Pro - RAM-HOL-SAM52PU RAM C Size 1.5" Ball Mount With Short Double Socket Arm & 2/2.5" Round Plate AMPs Hole Pattern - RAM-101U-B 3 X 3 Backer Plate W/ AMPS And 1.5" X 2" Hole Patterns With Hardware - RAM-202-225BU GDS® Modular 10-30V Hardwire Charger With Female USB Type A Connector - RAM-GDS-CHARGE-V7B1U

      Samsung

      Galaxy Tab Active Pro

      Instructions for Modular Hardwire Charger

      KNOB W LOCK & 5/16"-18 BRASS HOLE C SIZE - RAM-KNOB5LU

      Mixed Combination RAM® Pin-Lock™ Security Knob And Key Knob For 1.5" Diameter C Size Arms - RAP-S-KNOB5U
