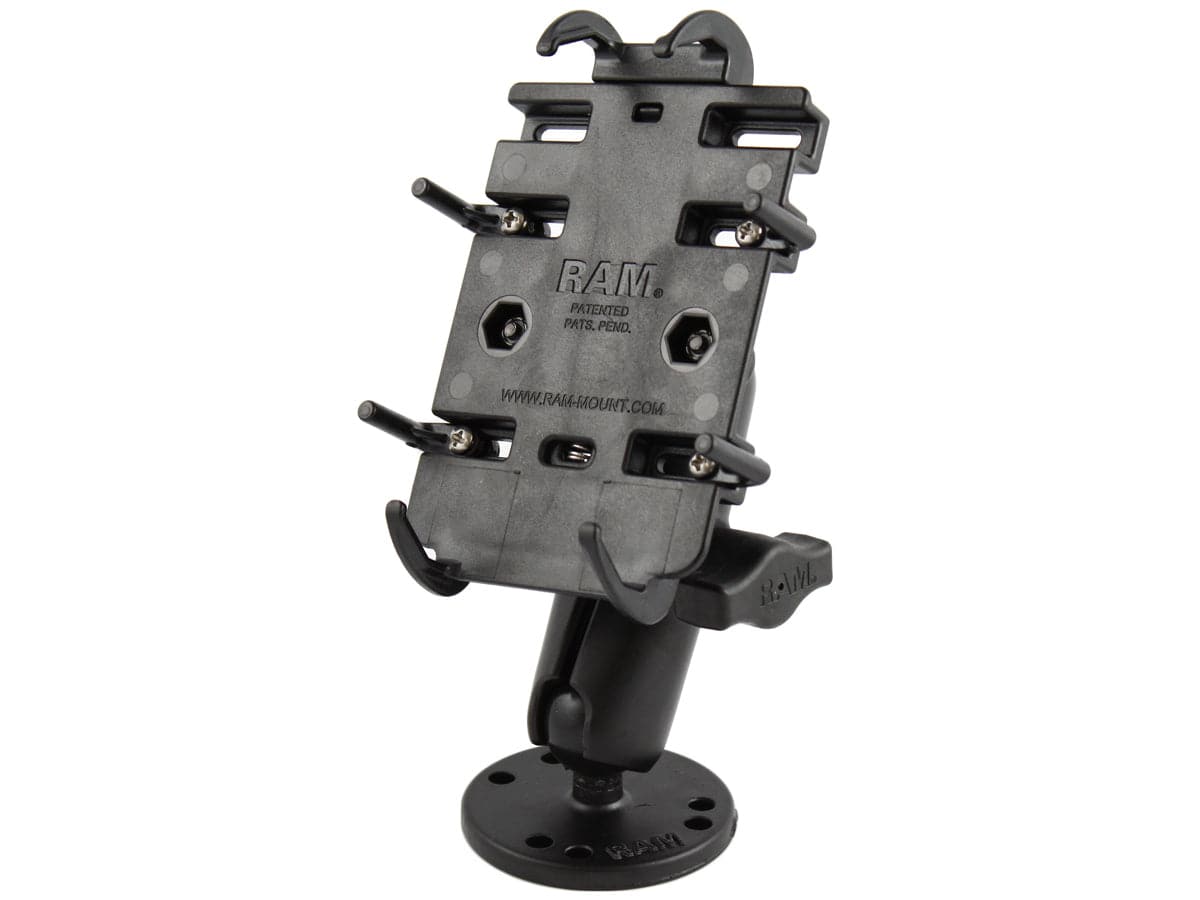

RAM® Quick-Grip™ Spring-Loaded Phone Mount with Drill-Down Base - RAM-B-138-PD3

OVERVIEW

The RAM Quick-Grip^™ device mount is capable of holding a broad range of electronic devices. The spring loaded mechanism and the adjustable side keepers allow for a secure grip on your device. Whether it is a cell, GPS, blue tooth speaker or anything that will fit in the dimensions of the cradle, your electronics will be secure. The mount is designed with a B size 1" diameter rubber ball and socket system that has adjustment points at both ends of the double socket arm; this allowing for almost infinite adjustment and perfect viewing angles.

HARDWARE INCLUDED

Assembly Hardware

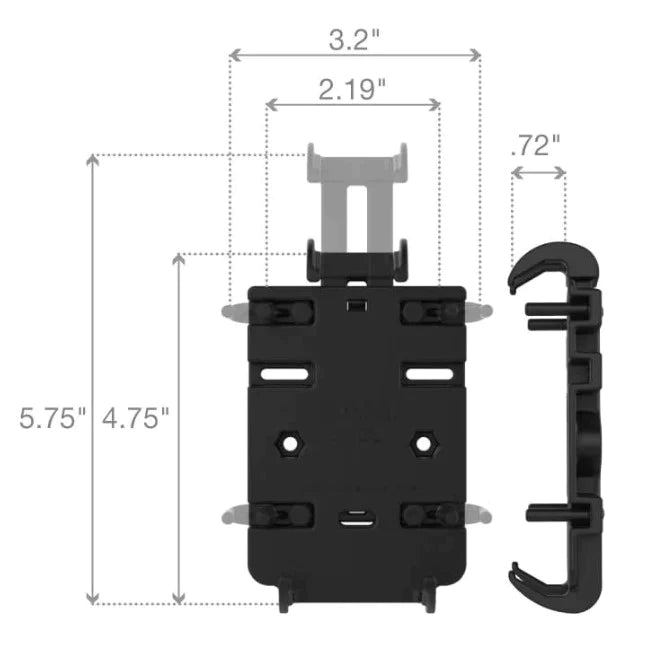

HOLDER DIMENSIONS

Height Range: 4.75" - 5.75"
Width Range: 2.19" - 3.25"
Max Depth: .72"

SOCKET-TO-SOCKET LENGTH

3"

HOLL PATTERN

4-Hole AMPS: 1.181" x 1.496"
3-Hole 120-Degree: 1.812" Diameter

PLATE SIZE

2.5" Diameter

BALL/SOCKET SIZE

B Size (1")

WEIGHT CAPACITY

Standard Use: 2 lbs
Heavy-Duty Use: 1 lb

MATERIALS

Marine-grade aluminum
High strength composite

PACKAGING TYPE

Retail Bag

WEIGHT

0.7 lbs.

ADDITIONAL INFORMATION

Exposure to vibrations, like those generated by high-powered motorcycle engines, might impact iPhone cameras. Click here to learn more.

Apple

 RAM® Quick-Grip™ Assembly Guide - PDF
