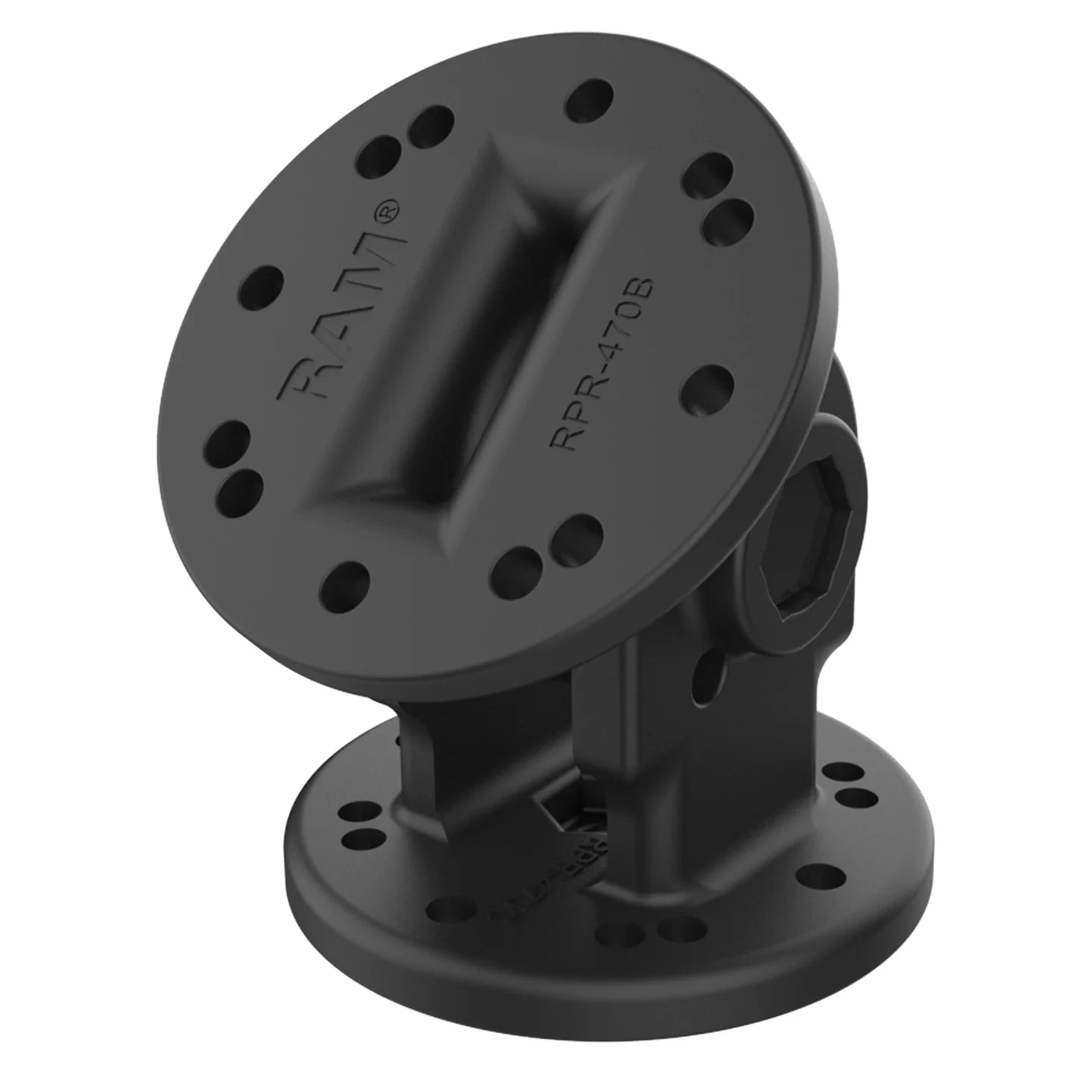

RAM® Single Pivot Mount - RAP-101-PV4-NKU

The RAM® Single Pivot Mount (RAP-101-PV4-NKU) is a low-profile, drill-down mounting solution. Each end features 2-hole and 4-hole AMPS patterns to easily install any RAM® holder or GDS® dock and secure the mount to any surface. This solution uses tooth-lock washers to allow users to pivot their device up to 180-degrees and utilizes a barrel nut instead of traditional adjustment knobs to provide tamper resistance, ideal for high-traffic environments.

• Low-profile, drill-down mounting solution for heavy-duty environments

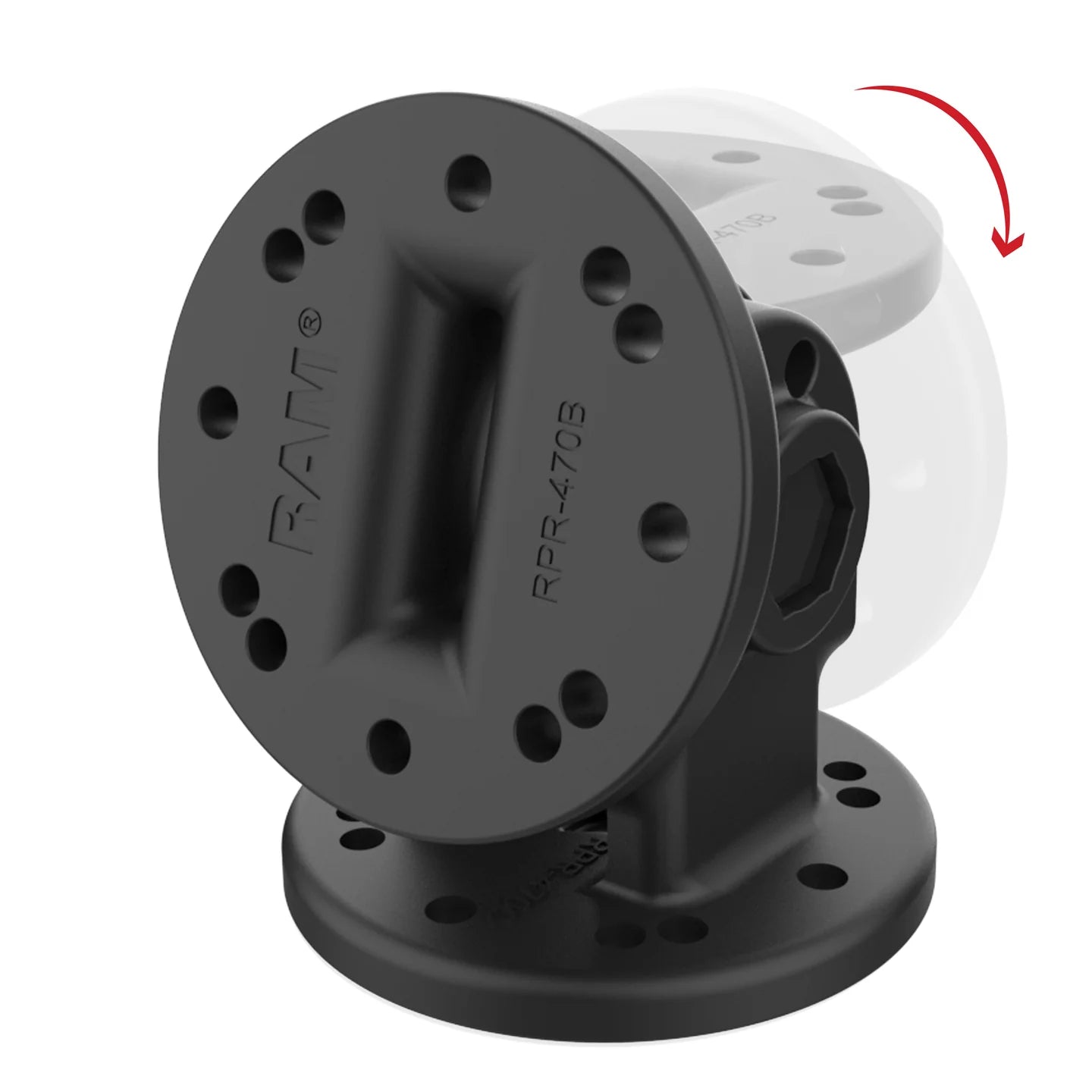

• Single articulation joint pivots up to 180-degrees; barrel nut provide tamper resistance

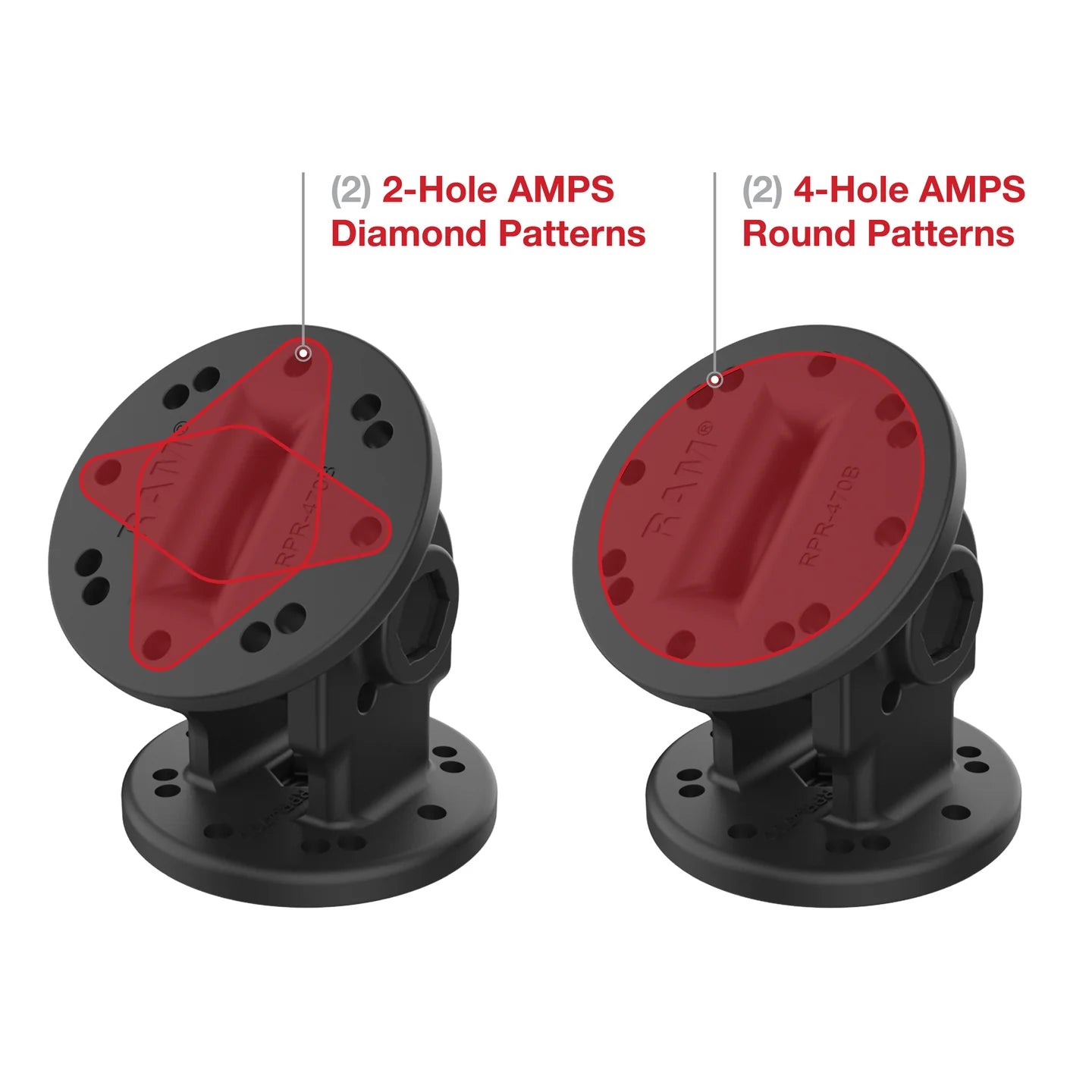

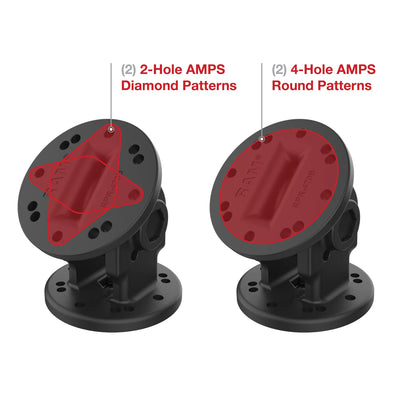

• Each end features two 2-hole AMPS and two 4-hole AMPS patterns; secure your device to one end and the other to your preferred surface

• Made of high-strength composites for durability and reliability in the most demanding environments

• Backed by a lifetime warranty

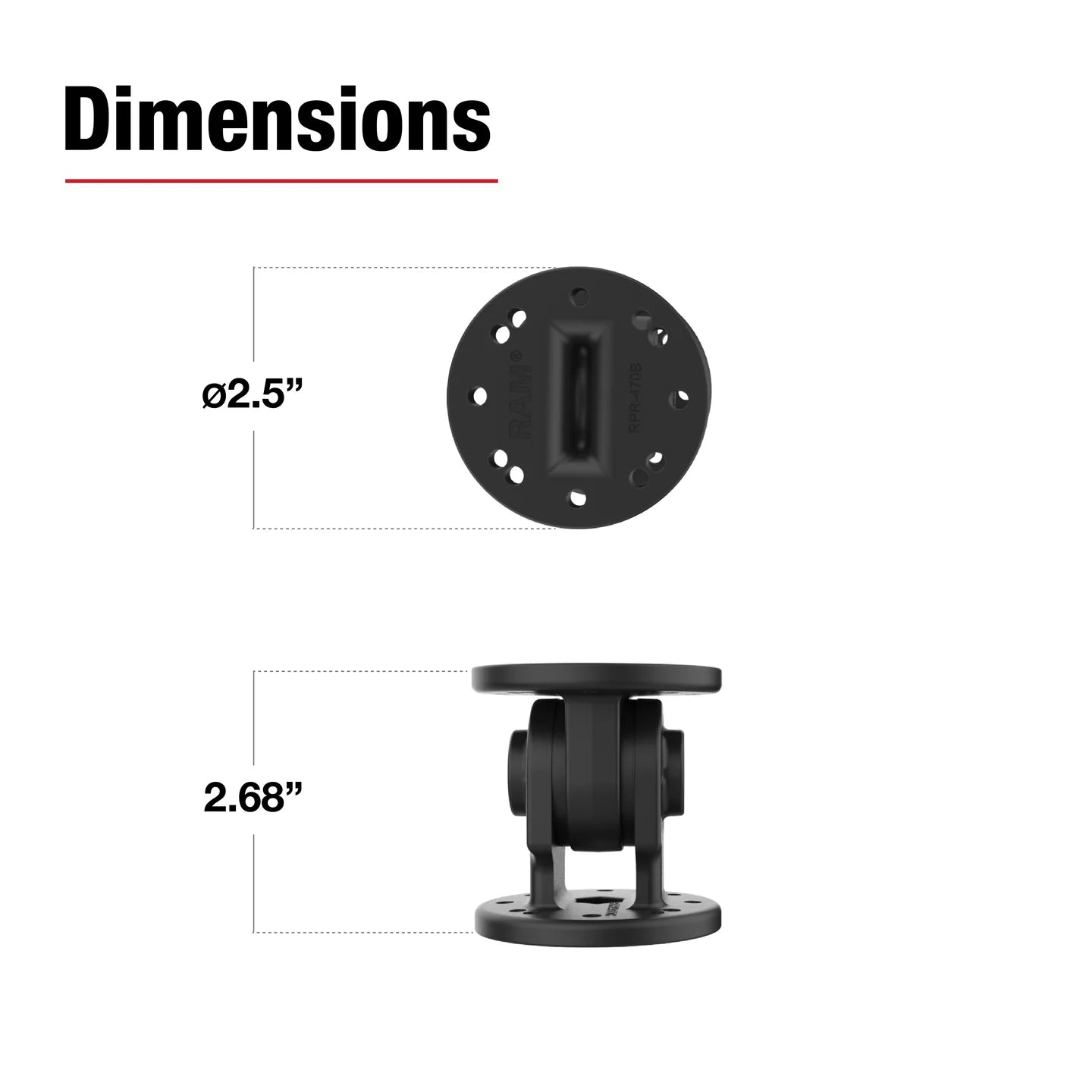

product dimensions:
Overall Height: 2.68"

hole pattern:
4-Hole AMPS: 1.181" x 1.496"
2-Hole AMPS: 1.912"

plate size:
2.5" Diameter

materials:
High strength composite

packaging type:
Poly Bag

Weight:
0.27 lb
