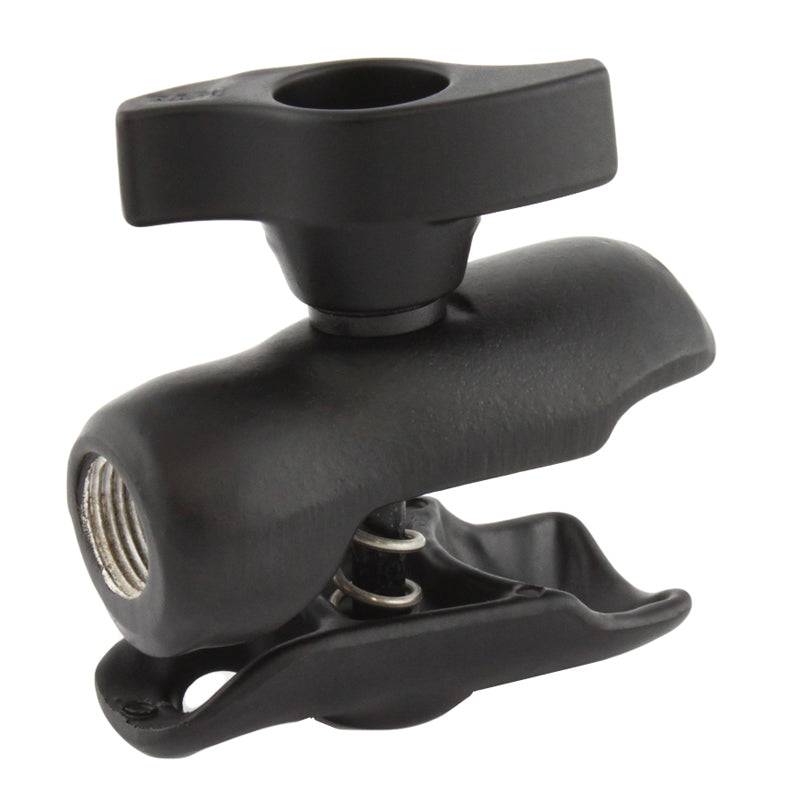

RAM-200-1MU
$54.99 $61.99
In Stock
- Ships for Free! C Size (1.5") Standard Use: 4 lbs Marine-grade aluminum Poly Bag 0.63 lbs. Note: NPT (National Pipe Thread) is a standard used in joining pipes and fittings that have a tapered thread. As a general rule, the NPT inch size is the inside diameter of the threaded pipe and is known as the NPS (Nominal Pipe Size). The outer diameter (OD) of the pipe is shown in the table below.
PRODUCT INFORMATION
BALL SIZE
WEIGHT CAPACITY
Heavy-Duty Use: 3 lbsMATERIALS
PACKAGING TYPE
WEIGHT
ADDITIONAL INFORMATION
NPT Size
(NPS) Pipe Outer Dia. (OD)
Threads per inch
1/4"
0.540"
18
1/2"
0.840"
14
1"
1.315"
11.5
