RAM® Small Gas Tank Mount with Diamond Plate - RAM-B-410-A-238U

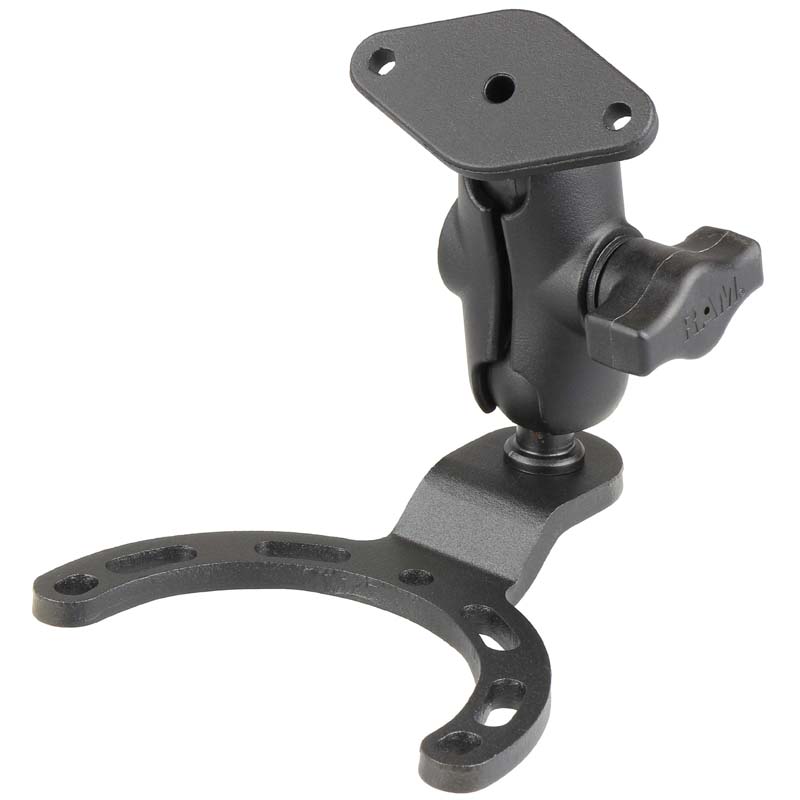

The RAM Gas Tank base is a low-profile way to get a unique perspective from your camera or to attach your electronic device where it can be quickly accessible. This powder coated aluminum base mounts directly to the stock gas tank of any listed compatible motorcycles. We include the hardware you need to mount to the fill port as well. Included is the B size 1" ball on a diamond plate to mount RAM GPS cradles or any other mount that uses the diamond connection.

HARDWARE INCLUDED

Assembly Hardware
(3) M6-1.0 x 25mm Socket Head Cap Screw
(3) M5-.8 x 35mm Socket Head Cap Screw
(4) M5-.8 x 45mm Socket Head Cap Screw
(3) M5-.8 x 25mm Socket Head Cap Screw
(3) M5-.8 x 20mm Socket Head Cap Screw
(3) M5-.8 x 16mm Socket Head Cap Screw
(4) M5 Stainless Steel Washers
(3) M6 Stainless Steel Washers

SOCKET-TO-SOCKET LENGTH

1.75"

HOLE PATTERN

2-Hole AMPS: 1.912"
See Drawing

BALL SIZE

B Size (1")

WEIGHT CAPACITY

Standard Use: 2 lbs
Heavy-Duty Use: 1 lb

MATERIALS

Marine-grade aluminum

PACKAGING TYPE

Poly Bag

ADDITIONAL INFORMATION

Note:

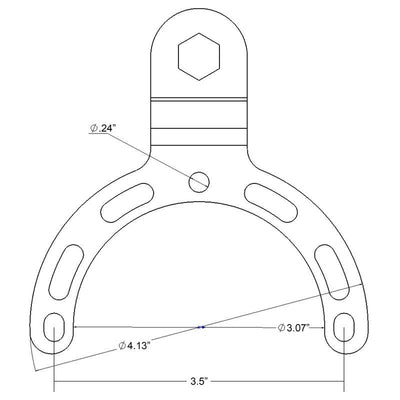

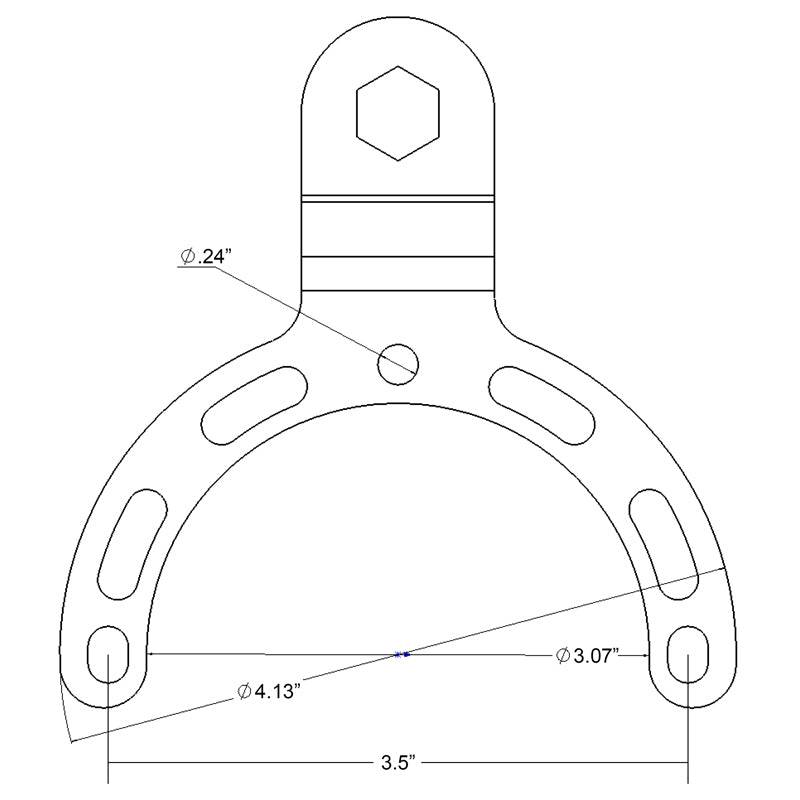

To ensure proper fit use the measuring guide. Tank bolts distance, for this part will be 3.5".
