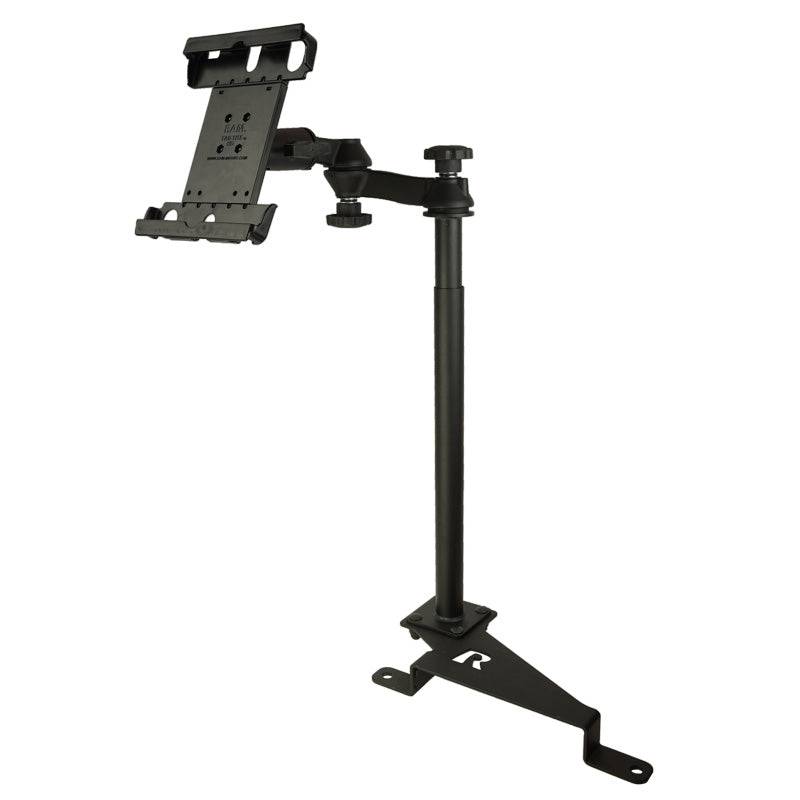

RAM® Tab-Tite™ 9-10.5" Tablet Mount for '15-23 Ford F-150, 2022 F-250 + More - RAM-VB-195-TAB20

• Spring-loaded holder secures most 9"-10.5" tablets with heavy-duty cases; interchangeable end cups allow you to modify the holder when upgrading devices
• RAM® No-Drill™, dual articulating swing arm, custom vehicle mount designed specifically for 2015-2023 Ford F-150, 2017-2022 F-250, and much more
• Made of powder coated steel, marine-grade aluminum and high-strength composites for durability and reliability in the most demanding environments
• Backed by a lifetime warranty

OVERVIEW

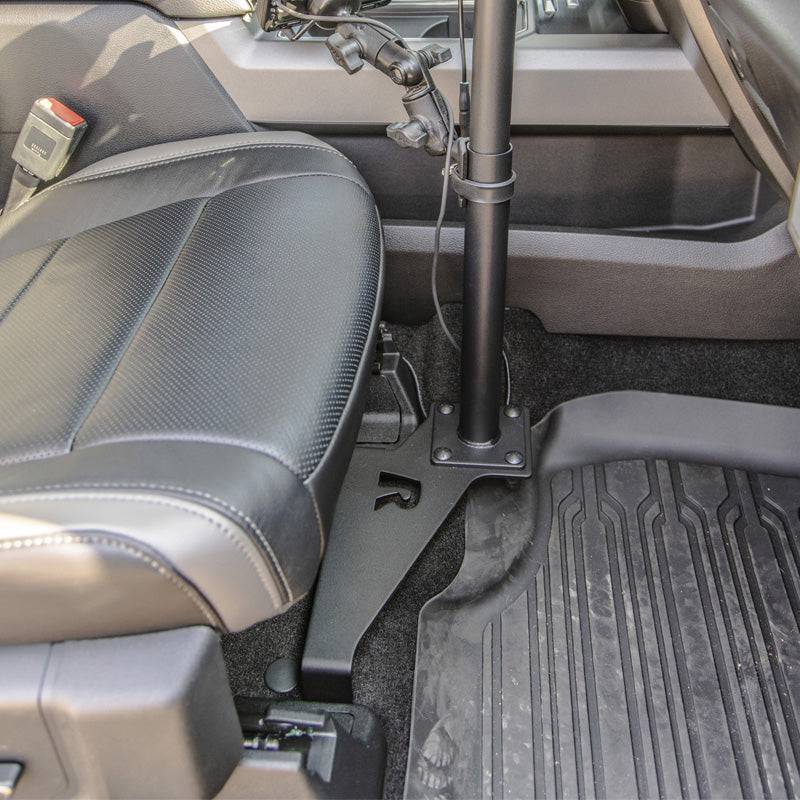

The RAM^® Tab-Tite^™ spring-loaded, quick release holder offers a secure fit with easy access to the mounted tablet. Included is the RAM^® No-Drill^™ mounting system which installs quickly and easily into a range of Dodge, Ford, and Jeep vehicles using the existing hardware of the passenger side seat rails. The spring-loaded design makes it easy to insert and remove your tablet, while keeping it secure in a variety of applications. The custom end cups are designed to optimize the functionality of your tablet, enabling access to all buttons, ports, and tablet functions.

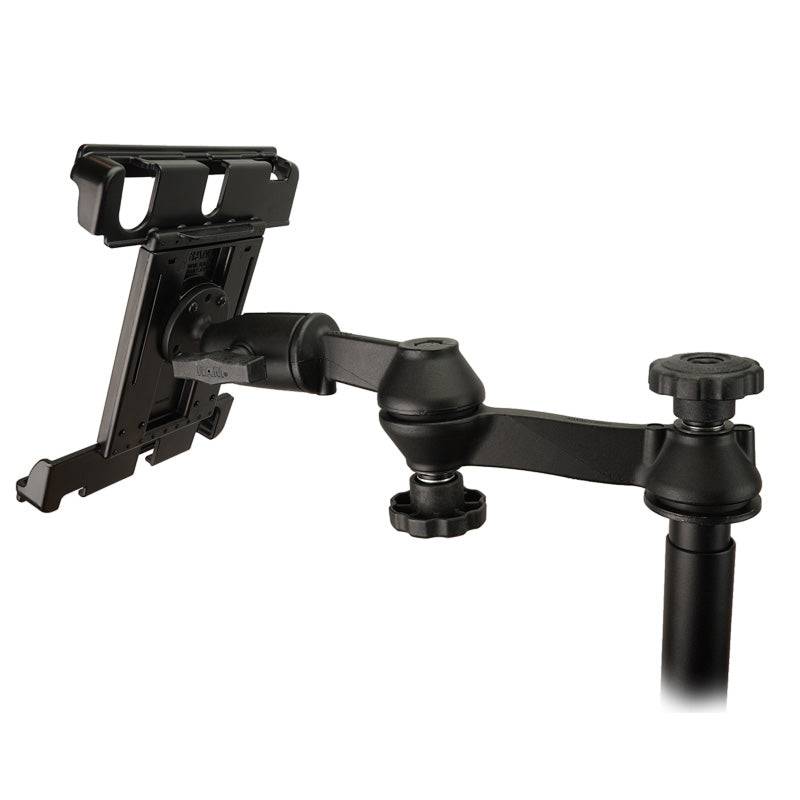

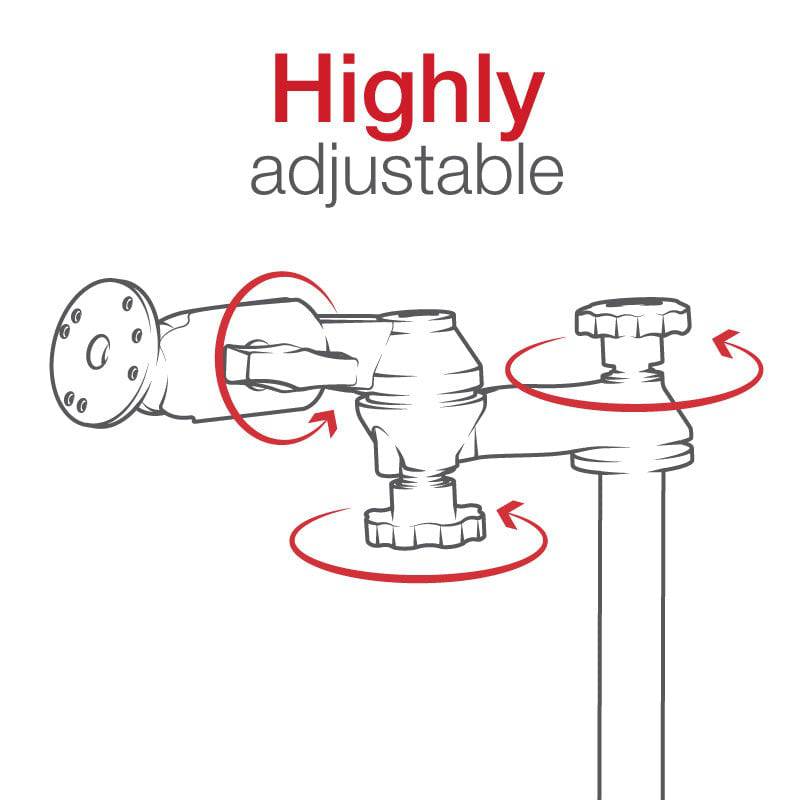

Included is a set of four nuts and bolts to attach the holder to any RAM^® components that contain the universal AMPS hole pattern. For off road environments and use in open cockpit applications, we recommended the use of a tether to assist in securing your device. The RAM^® Tab-Tite^™ holder is compatible with any tablet within the listed dimensions. Dual swing arms provide articulation and 12” of reach for passenger and driver access to the mounted device. The round ball base attached to the end of the swing arm supports a variety of tablet and laptop holders, while RAM^® rubber ball and socket technology provides additional adjustability as well as shock and vibration isolation.

HARDWARE INCLUDED

Assembly Hardware
Stabilizer Foot

HOLDER DIMENSIONS

Height Range: 9.5" - 12.125"
Width Range: 6.55" - 7.43"
Depth Range: .3" - .875"

BALL SIZE

C Size (1.5")

WEIGHT CAPACITY

Standard Use: 4 lbs
Heavy-Duty Use: 3 lbs

MATERIALS

Powder coated steel
Marine grade-aluminum
High strength composite

PACKAGING TYPE

Box

WEIGHT

11.69 lbs.

 RAM No-Drill™ Laptop Base for the 2015 - 2023 Ford F-150 & Transit Connect - RAM-VB-195

RAM 18" Long Lower Female Tele-Pole™ - RAM-VP-TBF18U

RAM Double Swing Arm with 8" Male Tele-Pole™ & 2.5" Round Base AMPs Hole Pattern - RAM-VP-SW1-8

RAM Tab-Tite™ Cradle for the Apple iPad Air 1-2 & 9.7" Tablets WITH CASE, SKIN OR SLEEVE - RAM-HOL-TAB20U

Apple

Dodge

Journey (2011-2020)

Ford

 RAM® Tab-Tite™ Assembly Guide - PDF

 RAM No-Drill Seat Bases Instructions 195 Series - PDF

 Upper Tele-Pole Assembly Guide - PDF
