RAM-138-TAB8U

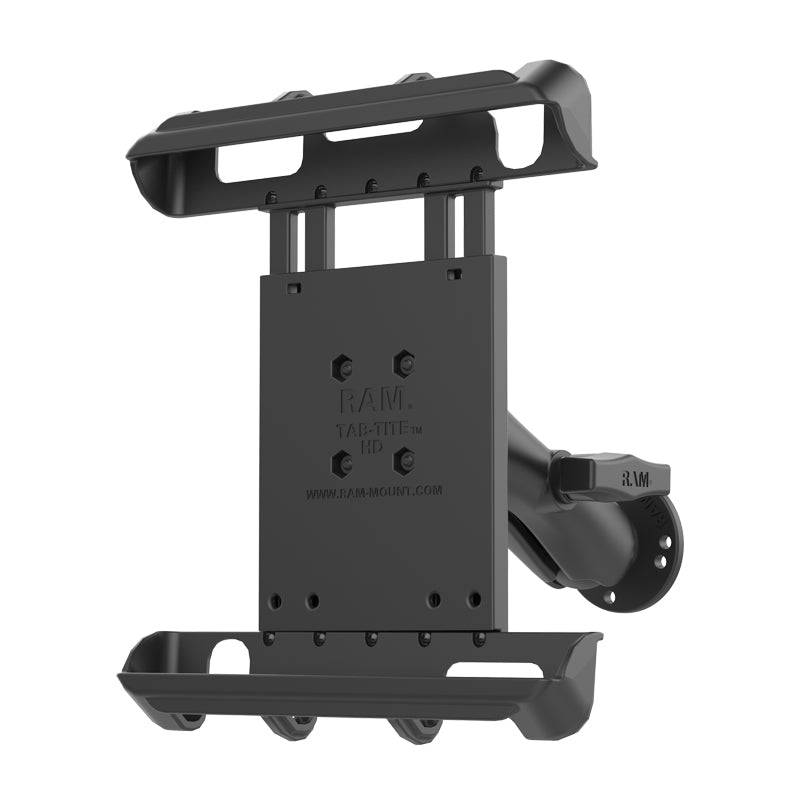

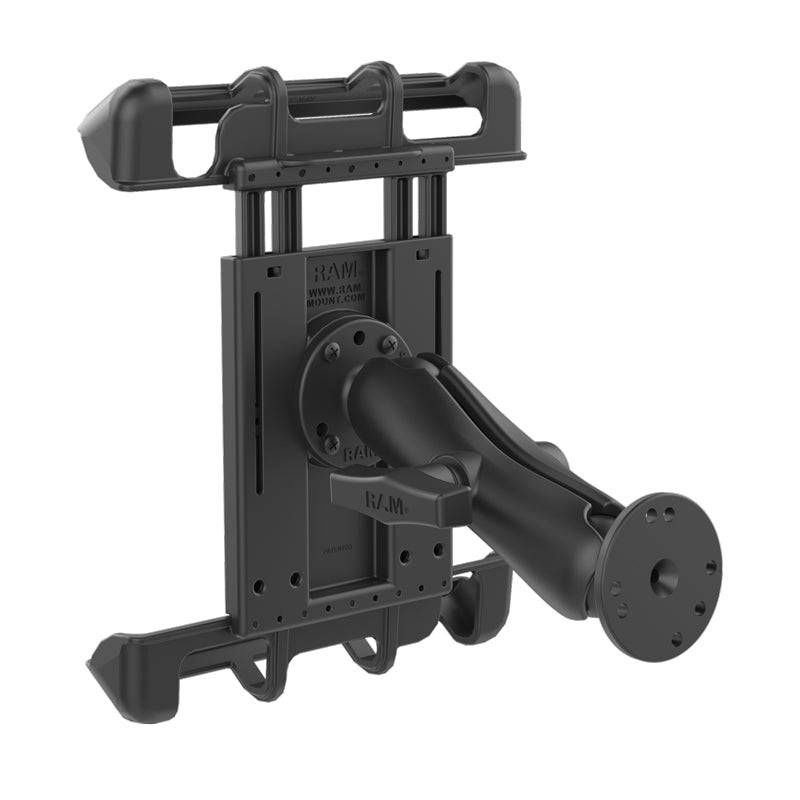

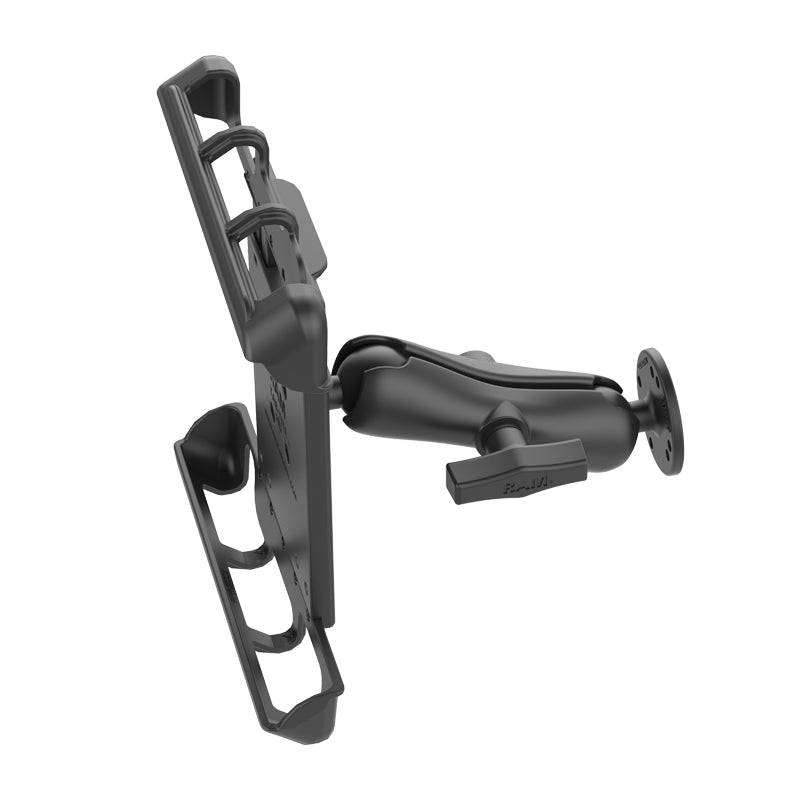

RAM® Tab-Tite™ Large Tablet Holder with Flat Surface Mount - RAM-138-TAB8U

  • Spring-loaded holder secures most 10" tablets with heavy-duty cases; interchangeable end cups allow you to modify the holder when upgrading devices
  • Includes C size double ball and socket mount with drill-down base; 4-hole AMPS pattern
  • Made of powder-coated, marine-grade aluminum and high-strength composites for durability and reliability in the most demanding environments
  • Backed by a lifetime warranty

OVERVIEW

The RAM® Tab-Tite drill-down mount for large tablets consists of a 2.5" diameter C size round base with the universal AMPS hole pattern, double socket arm, round base adapter and RAM® Tab-Tite universal clamping cradle. The mount is designed with a RAM® 1.5" diameter patented rubber ball and socket system that has adjustment points at both ends of the double socket arm; this allowing for almost infinite adjustment and perfect viewing angles. The included Tab-Tite cradle includes a spring loaded back plate and custom support cups for 10" screen tablets with heavy duty cases. The spring loaded design makes it easy to load and unload your tablet, along with keeping it secure while on the go. Interchangeable cup ends are designed to optimize the functionality of your tablet, allowing access to audio jacks, usb, power, and other ports, your tablet can be used just as it was intended. The RAM® Tab-Tite cradle is compatible with any tablet that will fit the dimensions listed below. It is important to verify the dimensions of your tablet when determining the overall size.

HARDWARE INCLUDED

Assembly Hardware


HOLDER DIMENSIONS

Height Range: 9" - 11.5"
Width Range: 6.38" - 8.31"
Depth Range: .13" - 1.12"


SOCKET-TO-SOCKET LENGTH

4.66"


HOLE PATTERN

4-Hole AMPS: 1.181" x 1.496"
3-Hole 120-Degree: 1.812" Diameter


PLATE SIZE

2.5" Diameter


BALL/SOCKET SIZE

C Size (1.5")


WEIGHT CAPACITY

Standard Use: 4 lbs
Heavy-Duty Use: 3 lbs


MATERIALS

Marine-grade aluminum
High strength composite


PACKAGING TYPE

Poly Bag

Apple

iPad Pro 9.7 (1st Generation) with Case
