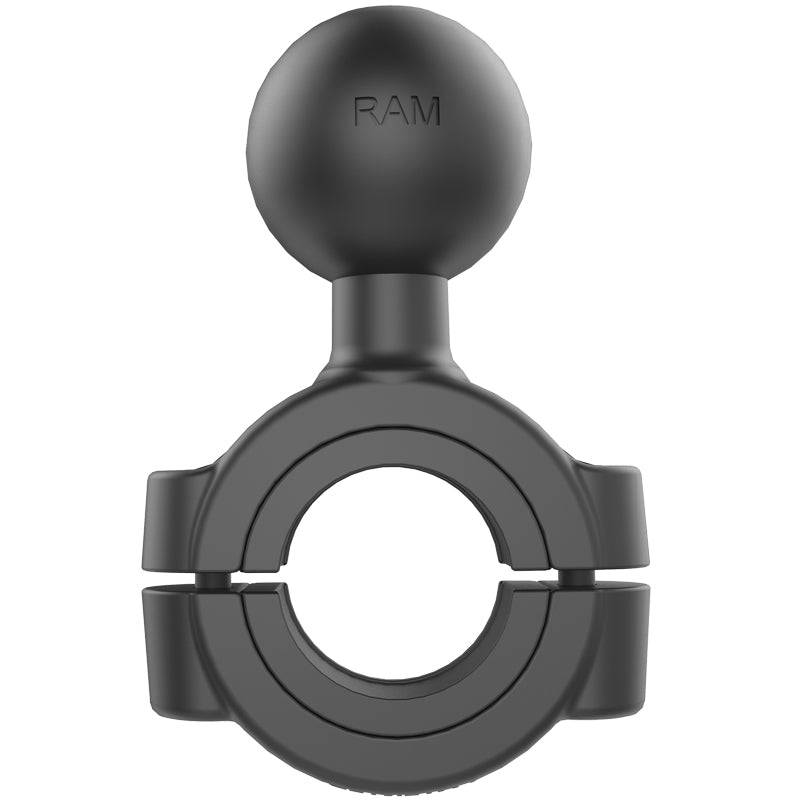

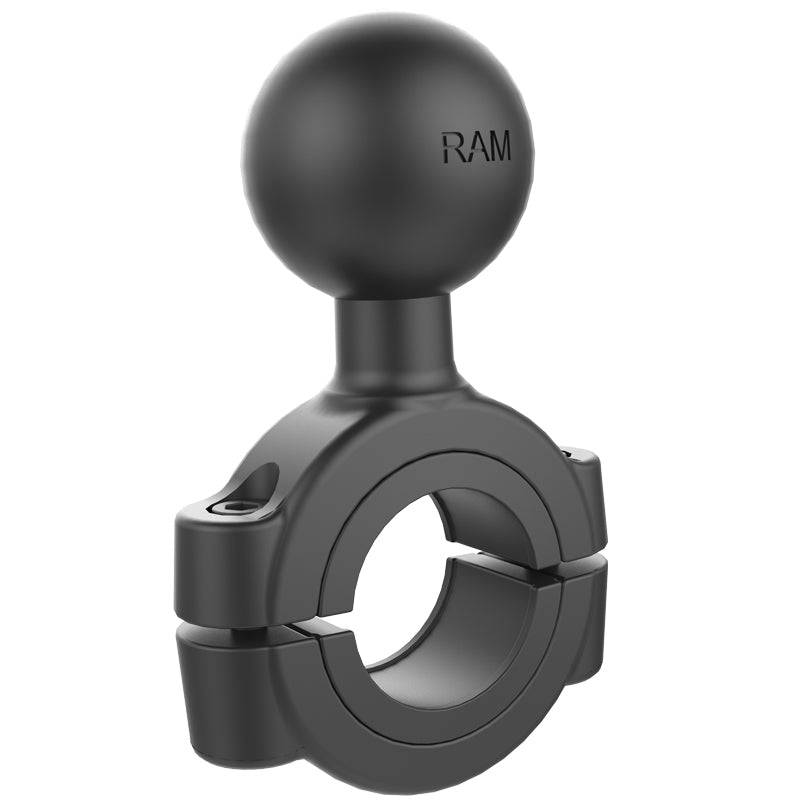

RAM® Torque™ 1 1/8" - 1 1/2" Diameter Handlebar/Rail Base with C Size 1.5" Ball - RAM-408-112-15U

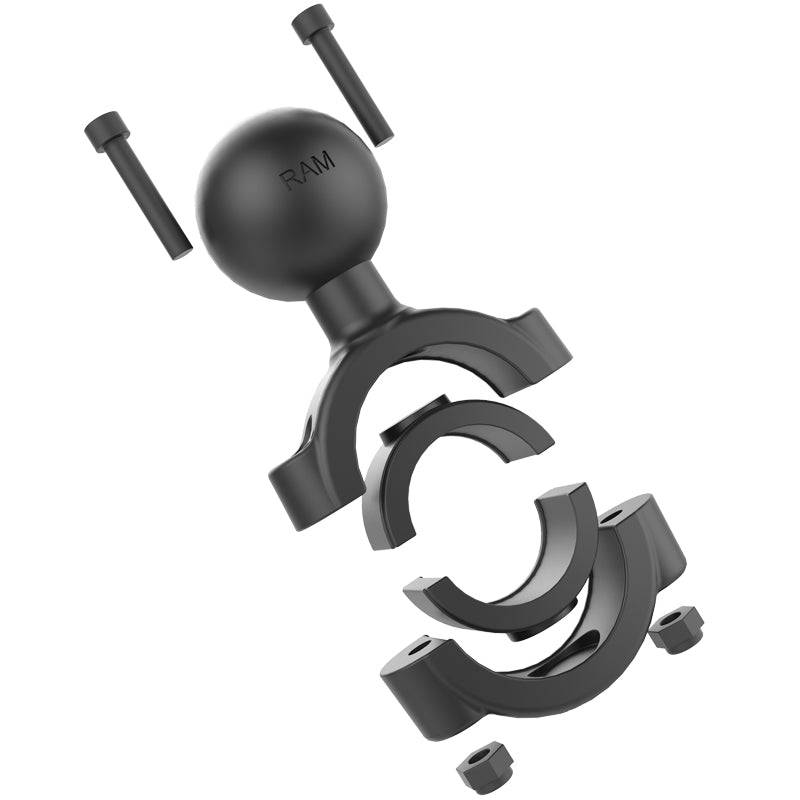

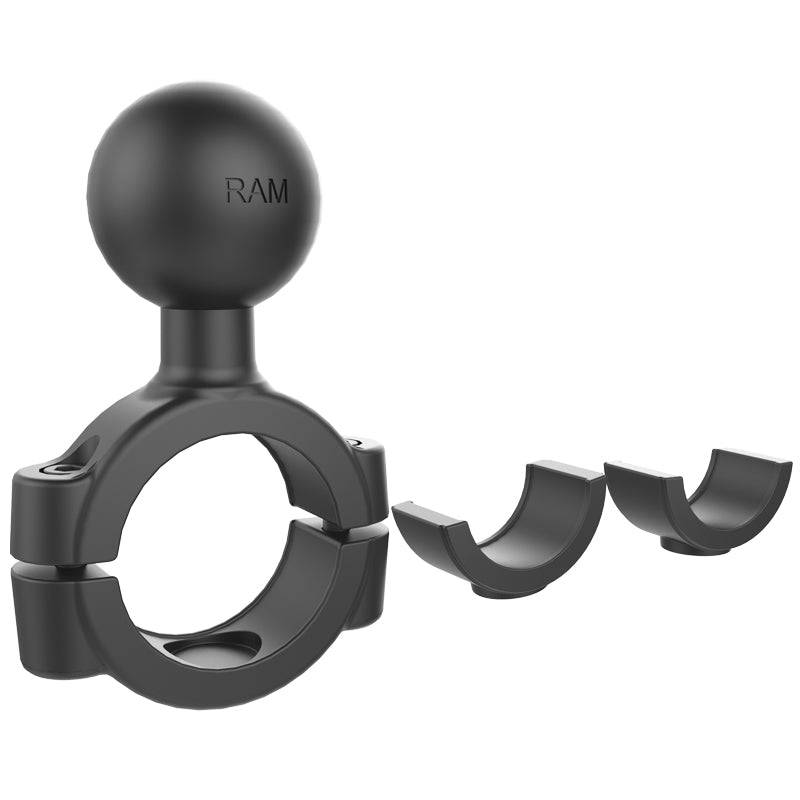

The RAM^® Torque^™ handlebar and rail mounting base has a 1.5” rubber ball and accommodates bars 1 1/8” to 1 1/2” in diameter. Sizing inserts are included to provide a snug fit and protection of the rail. The mount utilizes nylon-insert locknuts to prevent loosening in high vibration environments.

Mounting Base Dimensions:
Accommodates rails 1 1/8" to 1 1/2" in diameter.

Material:
Powder Coated Marine Grade Aluminum

Ball Size:
1.5" Rubber Ball "C" Size

Note:
The "U" in the part number reflects product packaged in poly bag.

Weight:
0.34 lbs.

Torque Base Installation Guide - PDF
