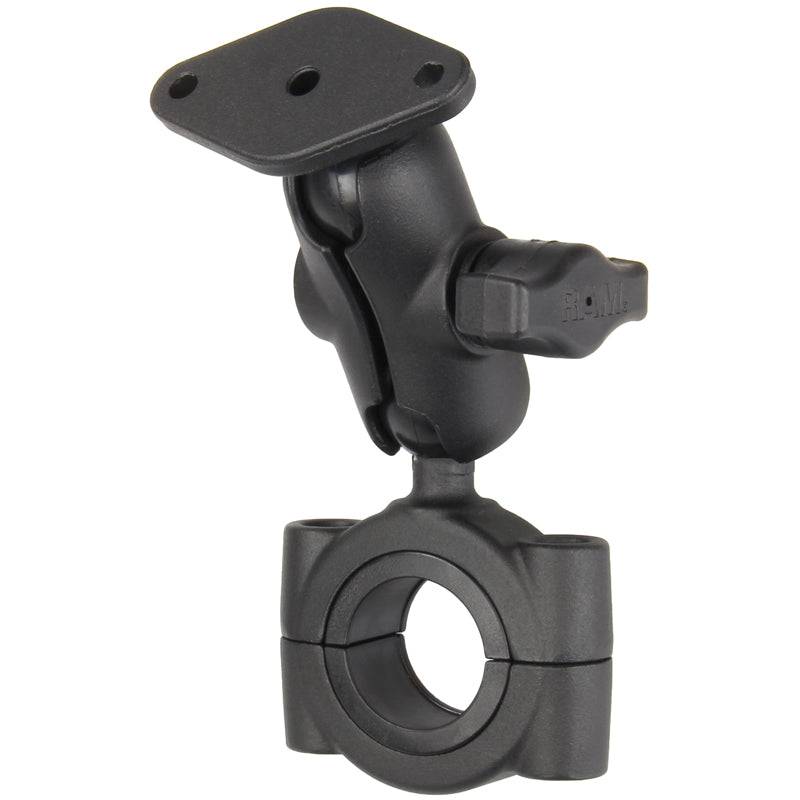

RAM® Torque™ Large Rail Base with Diamond Plate - RAM-B-408-112-15-A-238U

The RAM^® Torque^™ handlebar and rail mounting base has a 1” rubber ball and accommodates bars 1 1/8” to 1 1/2” in diameter. Sizing inserts are included to provide a snug fit and protection of the rail. The mount utilizes nylon-insert locknuts to prevent loosening in high vibration environments. Included is a short double socket arm and a diamond plate for mounting to RAM mounting cradles.

HARDWARE INCLUDED

(2) #10-24 x 1" Socket Head Cap Screws
(2) #10-24 Nylock Nuts
(2) 1.12" Split Reducing Bushings
(2) 1.27" Split Reducing Bushings
(1) 5/32" Hex Key Wrench
(1) 127mm x 17mm Rubber Adhesive Strip

CLAMP RANGE

1.125" - 1.5" diameter

SOCKET-TO- SOCKET LENGTH

1.75"

HOLE PATTERN

2-Hole AMPS: 1.912"

BALL/SOCKET SIZE

B Size (1")

WEIGHT CAPACITY

2 lbs

MATERIALS

Marine-grade aluminum

PACKAGING TYPE

Poly Bag

WEIGHT

0.6 lbs.

RAM® Torque™ 1 1/8" - 1 1/2" Diameter Handlebar/Rail Base With 1" Ball - RAM-B-408-112-15U

RAM Short Double Socket Arm for B Size 1" Balls - RAM-B-201U-A

RAM Diamond Plate 2.43" x 1.31" with B Size 1" Ball - RAM-B-238U
