RAM-101B-TC-SAM29-V7B1U

RAM® Tough-Case™ Bundle for Samsung Tab Active3 and Tab Active2 - RAM-101B-TC-SAM29-V7B1U

  • RAM® Tough-Case™ provides a tethered USB Type-C to USB Type A connection providing charging capabilities for the Samsung Galaxy Tab Active3 and Tab Active2

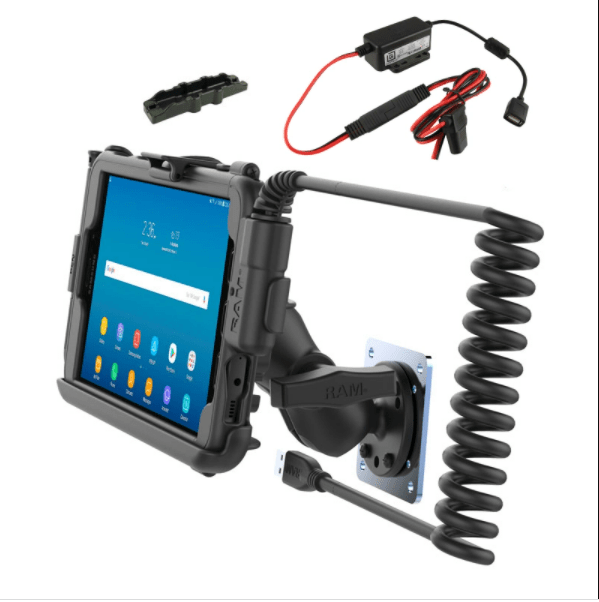

  • Includes RAM® Tough-Case™ holder, RAM® C size double ball mount, backing plate and hardwire charger for dashboard installation
  • RAM® Tough-Case™ has integrated 7ft coiled cable and durable oversized strain relief to keep the tablet connected to the power source while undocked
  • Integrated S Pen holder

OVERVIEW

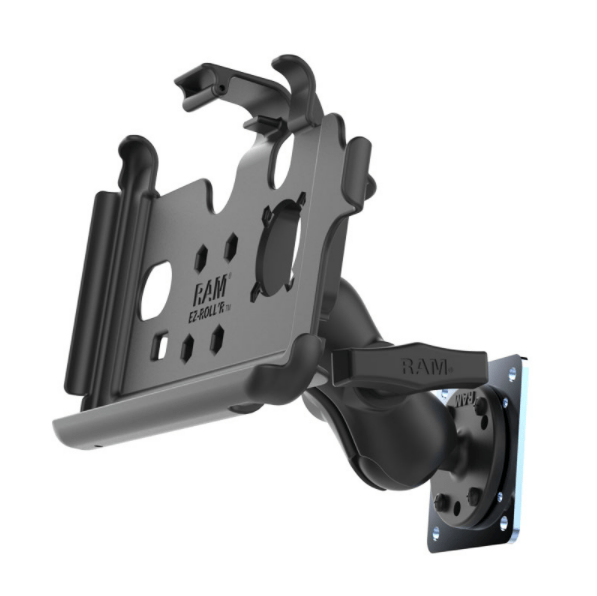

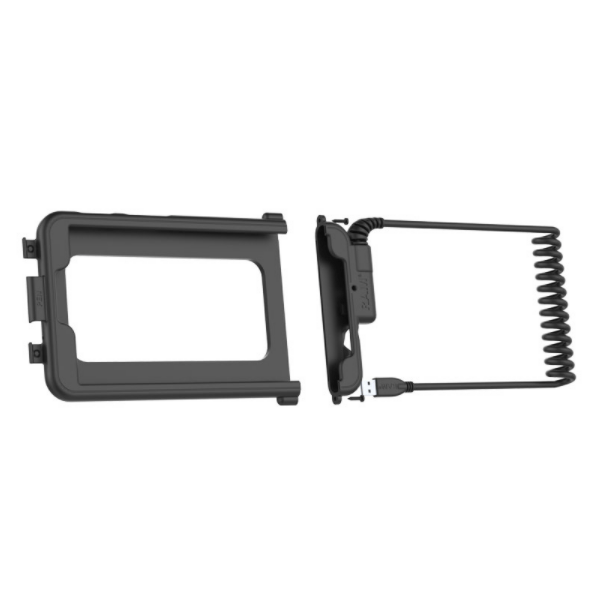

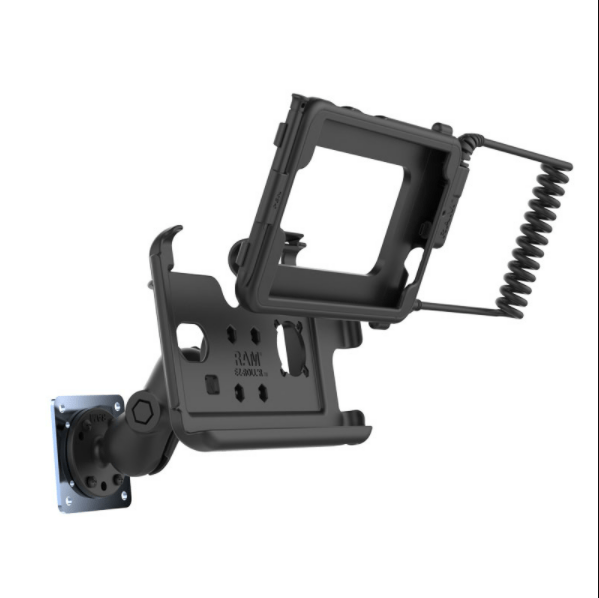

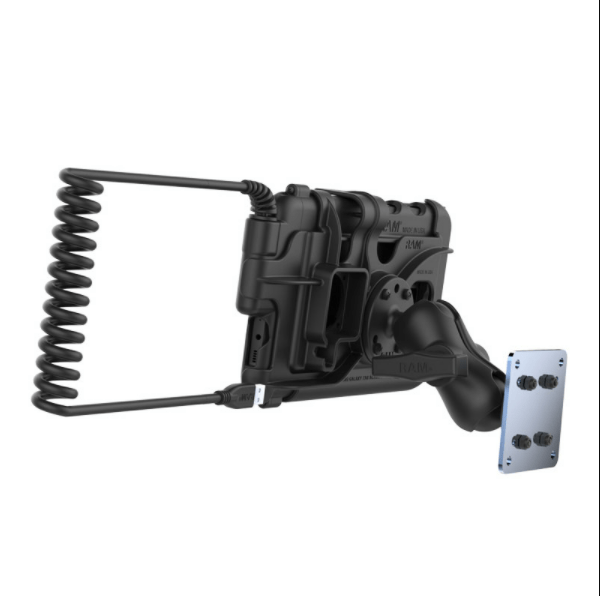

The RAM® Tough-Case bundle is a rugged mount including the RAM® Tough-Case, Tough-Case holder, C size double ball mount, backing plate and hardwire charger. The RAM® Tough-Case bundle is a two-piece enclosure for the Samsung Galaxy Tab Active3 and Tab Active2 that tethers the device inside of any vehicle with the help of the double ball mount and backing plate, meeting the demands of the transportation industry with ELD compliance. This ultra-low cost bundle provides power to the device through an internal USB Type-C charging connector to the device. The back of the tablet remains well exposed to allow heat to flow from the device to help maintain temperature levels. Unique features include access to the NFC reader while in the cradle for scanning NFC tags as well as the stylus. This complete mounting kit includes a 3” x 3” steel backing plate with #10-24 threaded holes, two 2.5” round ball plates, medium length double socket arm, and a GDS® modular hardwire charger – an ideal solution for providing power to the Galaxy Tab Active3 and Tab Active2. Get the Heat Out! with RAM® Tough-Case.

HARDWARE INCLUDED

Assembly Hardware
(1) 3" x 3" Steel Backing Plate
(4) #10-24 x 1" Thread Locking Screws
(4) #10-24 Nylock Nuts
Modular Hardwire Charger


SOCKET-TO-SOCKET LENGTH

2.5"


HOLE PATTERN

4-Hole AMPS: 1.181" x 1.496"
3-Hole 120-Degree: 1.812" Diameter


BALL/SOCKET SIZE

C Size (1.5")


WEIGHT CAPACITY

Standard Use: 4 lbs
Heavy-Duty Use: 3 lbs

MATERIALS

Marine-grade aluminum
High strength composite

PACKAGING TYPE

Poly Bag


INPUT VOLTAGE

10V - 30V DC

OUTPUT VOLTAGE

5-9VDC


OUTPUT CURRENT

2.5A max

INPUT CONNECTOR

Charger: Female USB Type A

INPUT CABLE LENGTH

1.2 Meters including 2 Pole Flat Marine Connector

OUTPUT CABLE LENGTH

.2 Meters

OPERATING TEMPERATURE

-10°C to +70°C

STORAGE TEMPERATURE

-40°C to +70°C

COMPLIANCE

Over Voltage Protection
Short Circuit Protection
Reverse Polarity Protection
RoHS Compliance
WEEE Compliance
SAE J-1113-5 Load Dump (Transient Voltage)
Moisture Resistant

CERTIFICATIONS

CE Certification
e-Mark Certification
RCM Certification
FCC Certification

WARRANTY STATUS

3 year warranty

Samsung

Tab Active2

Tab Active3
