RAM-101B-TC-SAM54-V7B1U
Out of Stock

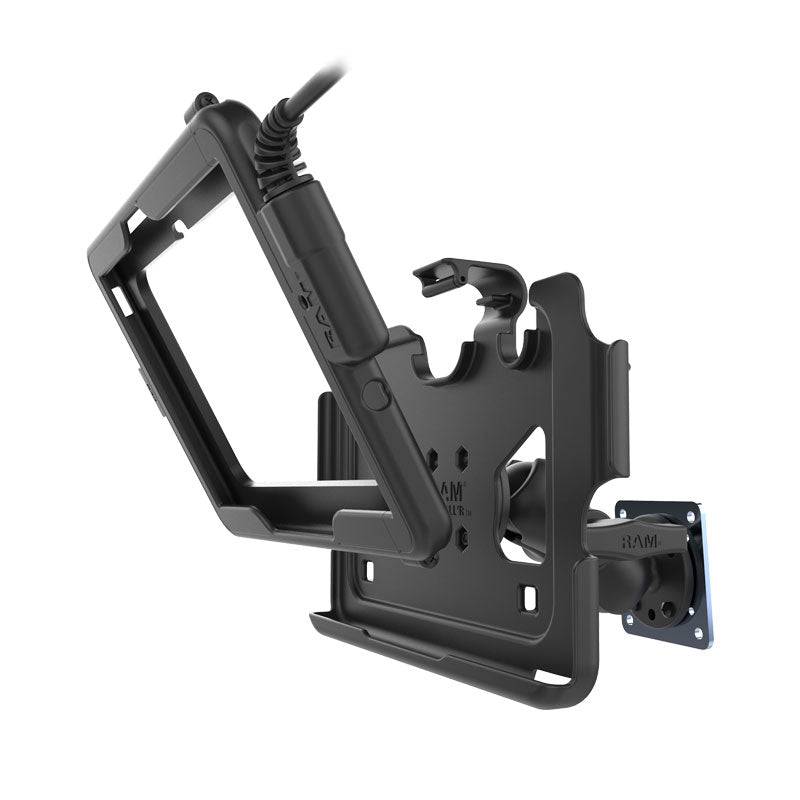

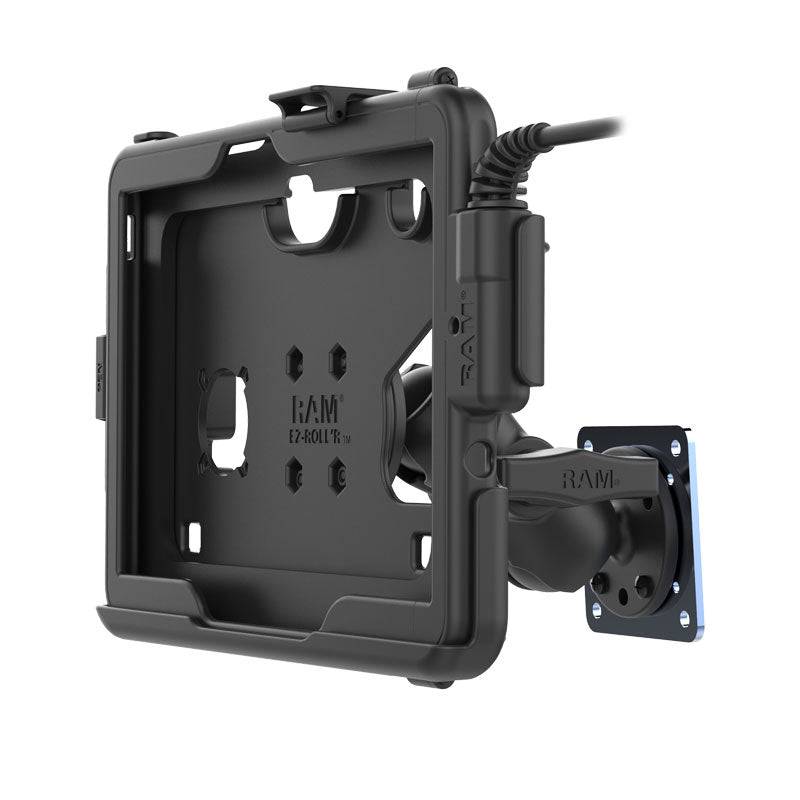

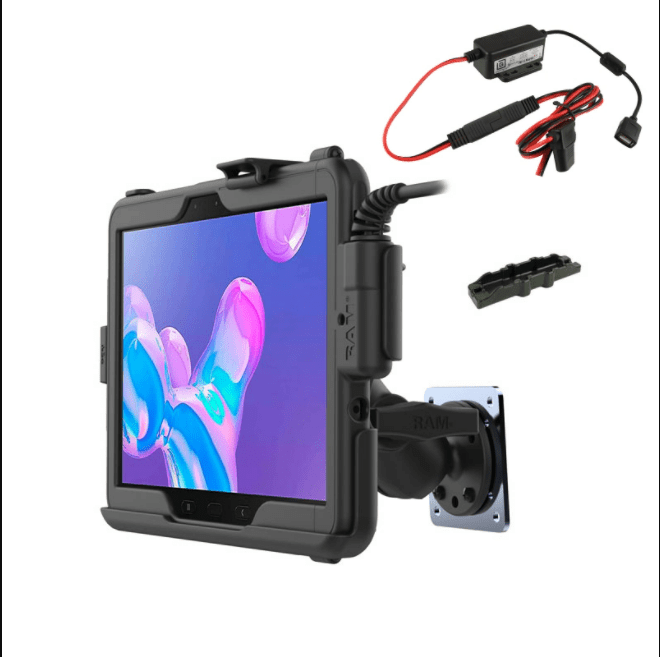

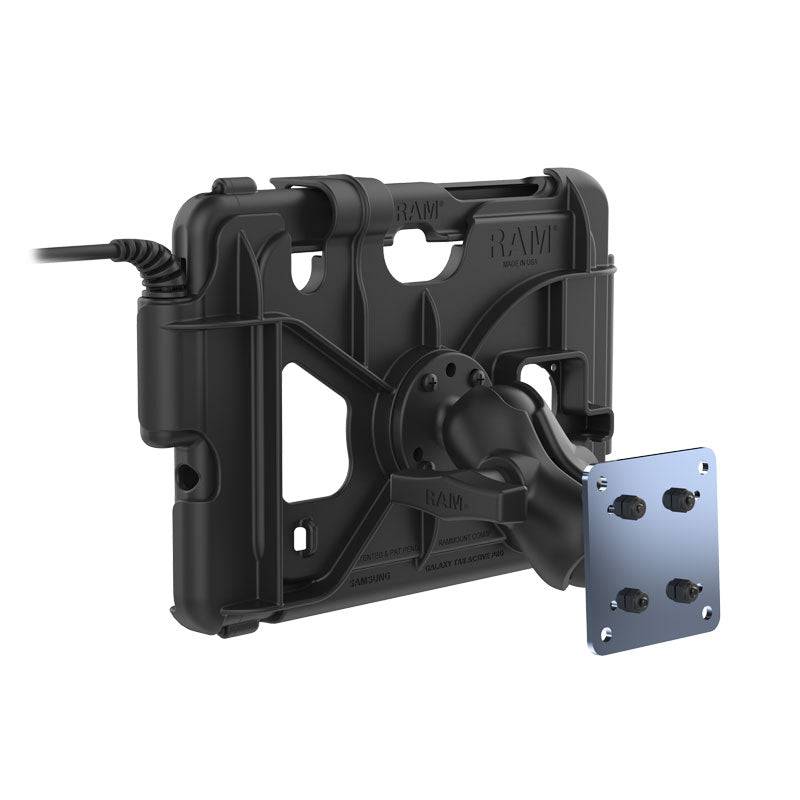

( Chat Live to get an ETA ) $191.73 The RAM® Tough-Case™ bundle is a rugged mount including the RAM® Tough-Case™, Tough-Case™ holder, C size double ball mount, backing plate and hardwire charger. The RAM® Tough-Case™ bundle is a two-piece enclosure for the Samsung Galaxy Tab Active Pro that tethers the device inside of any vehicle with the help of the double ball mount and backing plate, meeting the demands of the transportation industry with ELD compliance. This ultra-low cost bundle provides power to the device through an internal USB Type-C charging connector to the device. The back of the tablet remains well exposed to allow heat to flow from the device to help maintain temperature levels. Unique features include access to the NFC reader while in the cradle for scanning NFC tags as well as the stylus. This complete mounting kit includes a 3” x 3” steel backing plate with #10-24 threaded holes, two 2.5” round ball plates, medium length double socket arm, and a GDS® modular hardwire charger – an ideal solution for providing power to the Samsung Galaxy Tab Active Pro. Get the Heat Out!™ with RAM® Tough-Case™. Marine-grade aluminum
SPECS & FEATURES
PRODUCT INFORMATION
OVERVIEW
HARDWARE INCLUDED
Assembly Hardware
(1) 3" x 3" Steel Backing Plate
(4) #10-24 x 1" Thread Locking Screws
(4) #10-24 Nylock Nuts
Modular Hardwire Charger
SOCKET-TO-SOCKET LENGTH
2.5"
4-Hole AMPS: 1.181" x 1.496"
HOLE PATTERN
3-Hole 120-Degree: 1.812" Diameter
C Size (1.5")
BALL/SOCKET SIZE
Standard Use: 4 lbs
WEIGHT CAPACITY
Heavy-Duty Use: 3 lbs
MATERIALS
High strength compositePACKAGING TYPE
Poly Bag
INPUT VOLTAGE
10V - 30V DC
5-9VDC
OUTPUT VOLTAGE
2.5A max
OUTPUT CURRENT
INPUT CONNECTOR
Charger: Female USB Type A
1.2 Meters including 2 Pole Flat Marine Connector
INPUT CABLE LENGTH
.2 Meters
OUTPUT CABLE LENGTH
-10°C to +70°C
OPERATING TEMPERATURE
-40°C to +70°C
STORAGE TEMPERATURE
COMPLIANCE
Over Voltage Protection
Short Circuit Protection
Reverse Polarity Protection
RoHS Compliance
WEEE Compliance
SAE J-1113-5 Load Dump (Transient Voltage)
Moisture Resistant
CE Certification
CERTIFICATIONS
e-Mark Certification
RCM Certification
FCC Certification
2.95 lbs.
WEIGHT
WARRANTY STATUS
3 year warranty
COMPONENTS
RAM® Tough-Case™ For Samsung Tab Active Pro - Type A Male USB - RAM-TC-SAM54U
RAM® Tough-Case™ Holder For Samsung Tab Active Pro - RAM-HOL-TC-SAM54U
3 X 3 Backer Plate W/ AMPS And 1.5" X 2" Hole Patterns With Hardware - RAM-202-225BU
GDS® Modular 10-30V Hardwire Charger With Female USB Type A Connector - RAM-GDS-CHARGE-V7B1U
GDS® USB Cable Clamp For Rugged Aluminum USB Housings - RAM-GDS-CAB-CLAMP3U
COMPATIBLE DEVICES
