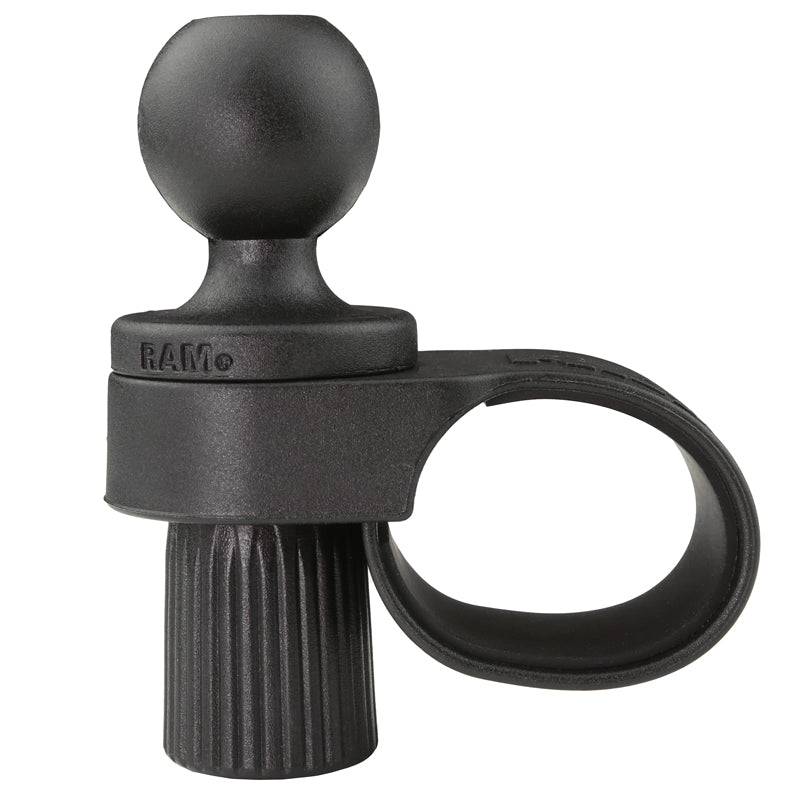

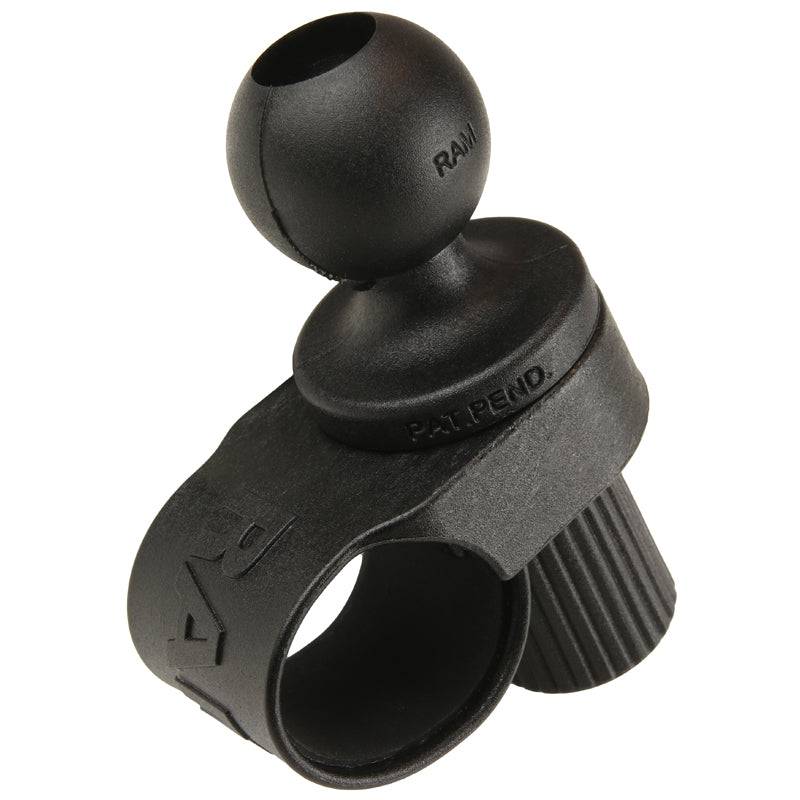

RAM® Tough-Strap™ Handlebar Ball Base - RAP-B-460U

• Low profile handlebar mount featuring the new RAM® Tough-Strap™, easily attaching to your handlebar with the turn of a single knob

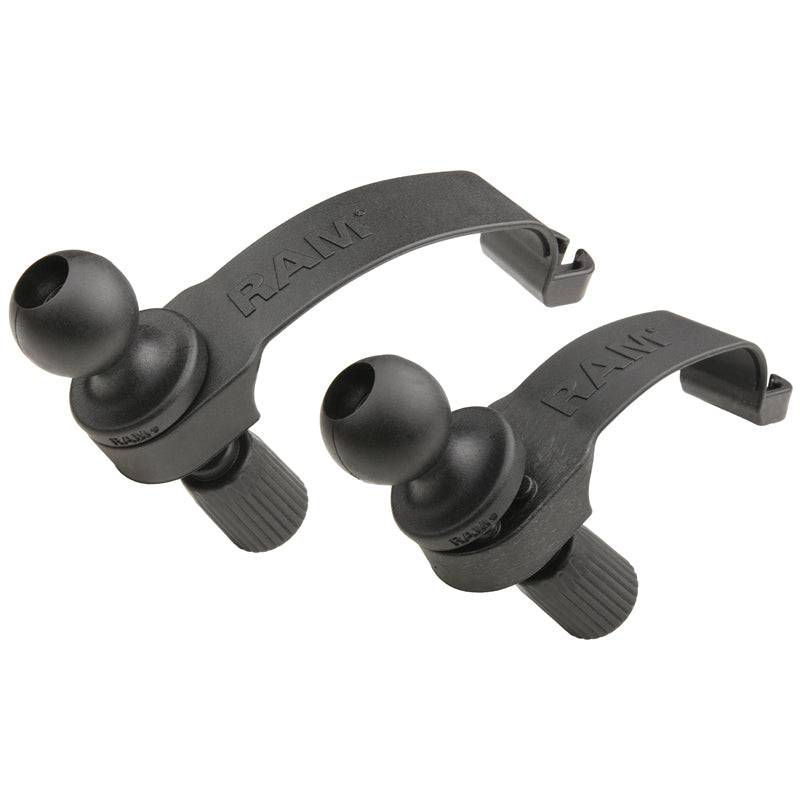

• Includes two different strap sizes for handlebars; Long strap ranges from 1.25"-1.38" diameter and small strap ranges from 0.875"-1" diameter, with an extra rubber strap for a more custom fit ranging from 1"-1.25"

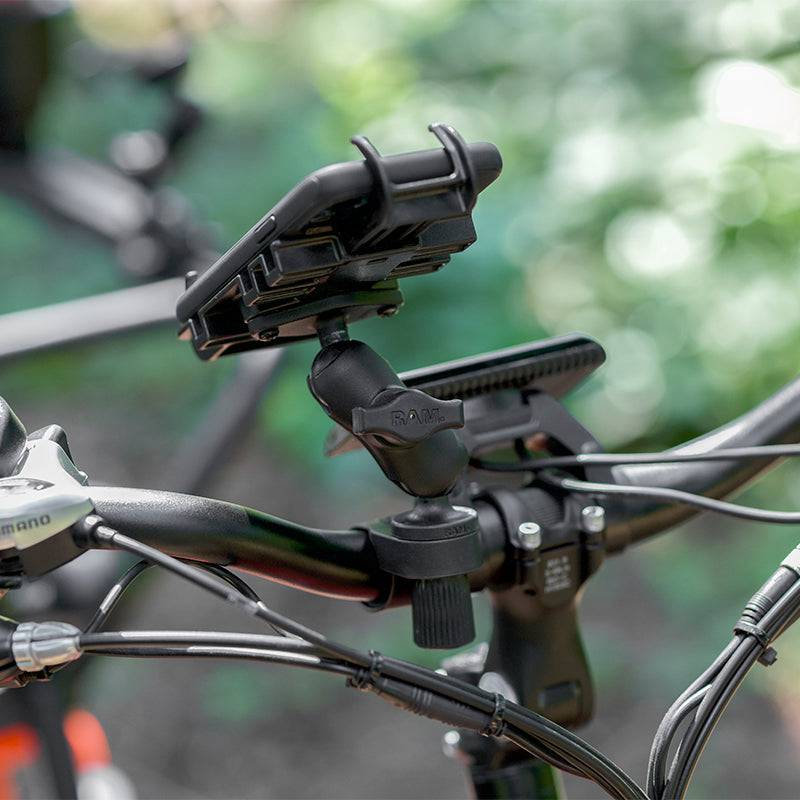

• Attach any RAM® B size socket arm and desired device holder for an ideal handlebar mount for all bike types, including mountain bikes, road bikes and e-bikes
• Made of high-strength composite and stainless steel hardware for durability and reliability in the most demanding environments
• Backed by a lifetime warranty

OVERVIEW

The RAM^® Tough-Strap^™ is lowest profile rugged mounting solution for any bike or motorcycle handlebars. With two different size straps, easily install the RAM^® Tough-Strap^™ on any mountain bike, road bike or e-bike with a simple twist of a knob. This RAM^® Tough-Strap^™ Handlebar Mount includes a B size ball base so you can attach any RAM^® B size socket arm and your desired device holder to complete your solution. The long strap is used for bar diameters ranging from 1.25"-1.38" while the short strap is used for diameters ranging from 0.875"-1". Utilize the extra rubber strip to cut down to the diameter range of 1"-1.125" for a more custom fit. Take the RAM^® Tough-Strap^™ on your next adventure on and off the road.

HARDWARE INCLUDED

(1) #10-24 x 2.5" Machine Screw
(1) Long Strap
(1) Short Strap
(1) Long Rubber Strip
(1) Short Rubber Strip
(1) Tightening Knob

CLAMP RANGE

0.875" - 1.38"

BALL/SOCKET SIZE

B Size (1")

WEIGHT CAPACITY

Standard Use: 2 lbs
Heavy-Duty Use: 1 lb

MATERIALS

High strength composite

PACKAGING TYPE

Poly Bag

WEIGHT

0.25 lbs.

RAM® Tough-Strap™ Assembly Guide - PDF
