RAM® Twist-Lock™ Suction Cup and Composite Yoke Clamp Mount - RAP-B-121-224-1U

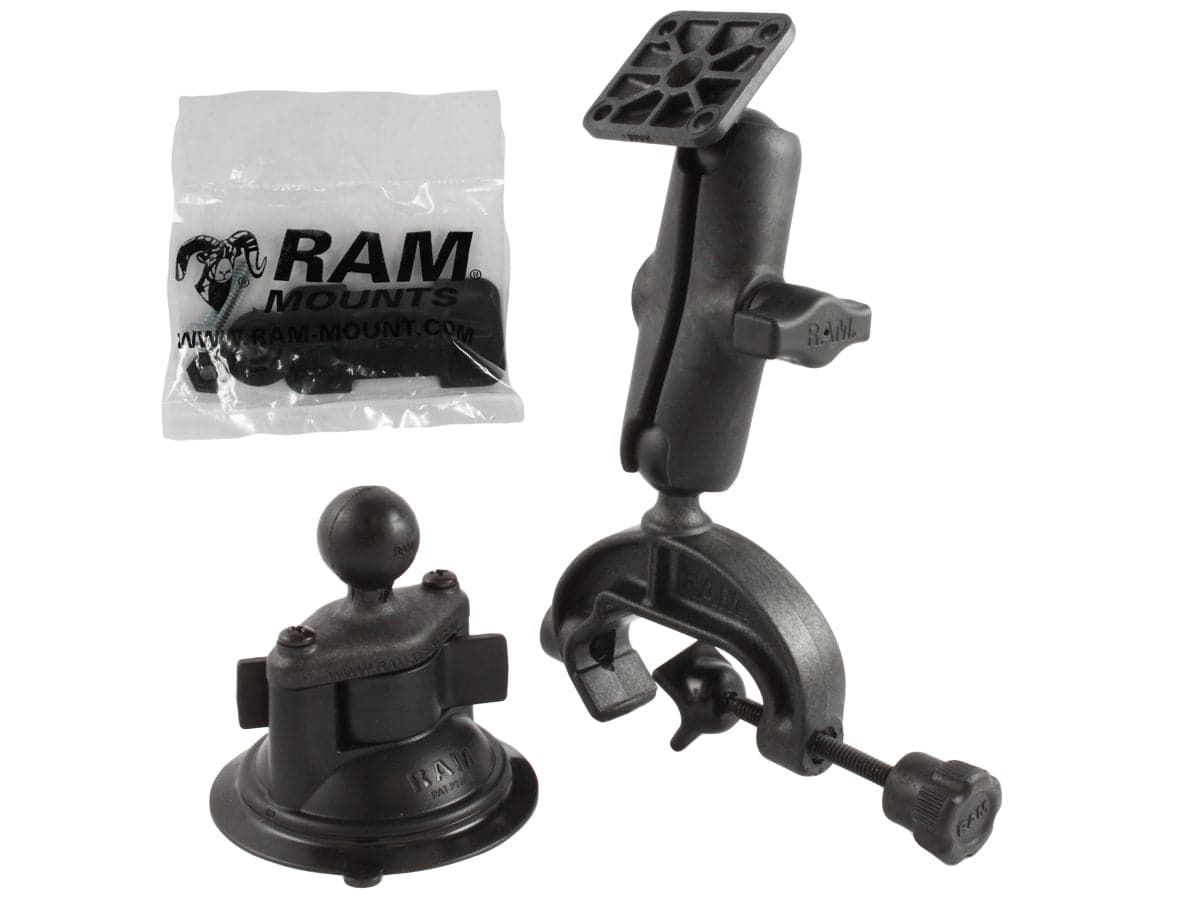

The RAP-B-121-224-1U consists of a yoke clamp base, 3.3" diameter suction cup base, standard length double socket arm and 2" x 1.7" square base that contains the universal AMPs hole pattern. The yoke clamp base will fit rails in diameter from 0.625" to a maximum of 1.25". The 1" rubber ball is at a right angle to the plane of the mount; when connected to a rail, the ball sits parallel to the rail. The suction cup is designed to have an extra strong hold on any smooth non-porous surface, but for best result, mount the suction cup on a glass or non-porous plastic surface.

Clamp Base Dimensions:
Accommodates rails from 0.625" to 1.25" in diameter

HARDWARE INCLUDED

Assembly Hardware
Flat Clamp Hardware Adapter

CLAMP RANGE

.625" - 1.25"

SUCTION SIZE

3.3" Diameter

SOCKET-TO-SOCKET LENGTH

3"

HOLE PATTERN

4-Hole AMPS: 1.181" x 1.496"

BALL/SOCKET SIZE

B Size (1")

WEIGHT CAPACITY

Standard Use: 2 lbs
Heavy-Duty Use: 1 lb

MATERIALS

High strength composite

PACKAGING TYPE

Poly Bag

WEIGHT

0.8 lbs.
