RAM-B-166-G4

RAM® Twist-Lock™ Suction Cup Mount for Garmin echo™ 100, 150 & 300c - RAM-B-166-G4

In Stock  - Ships for Free!

OVERVIEW

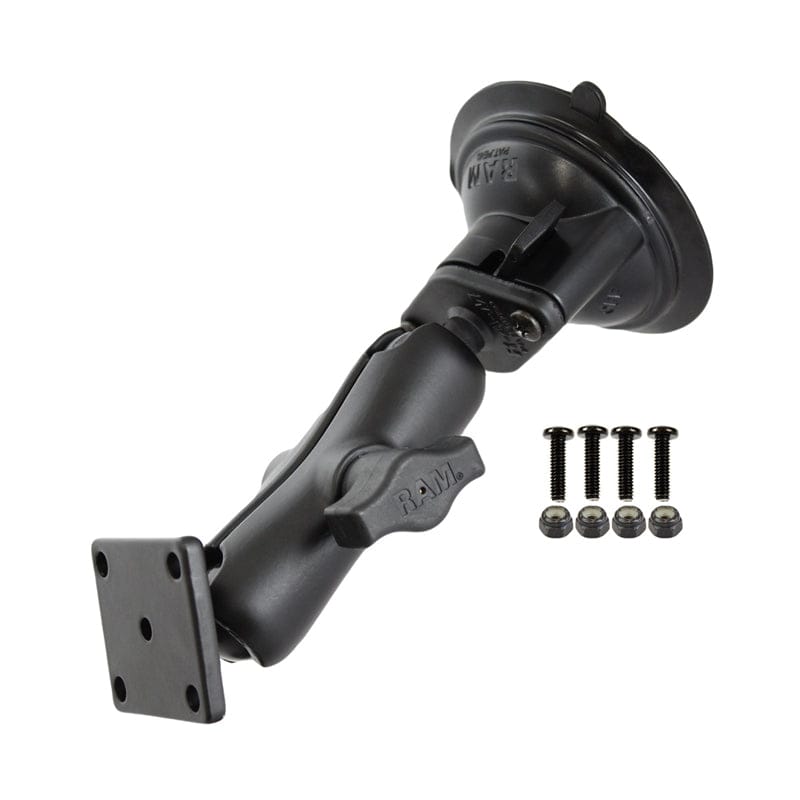

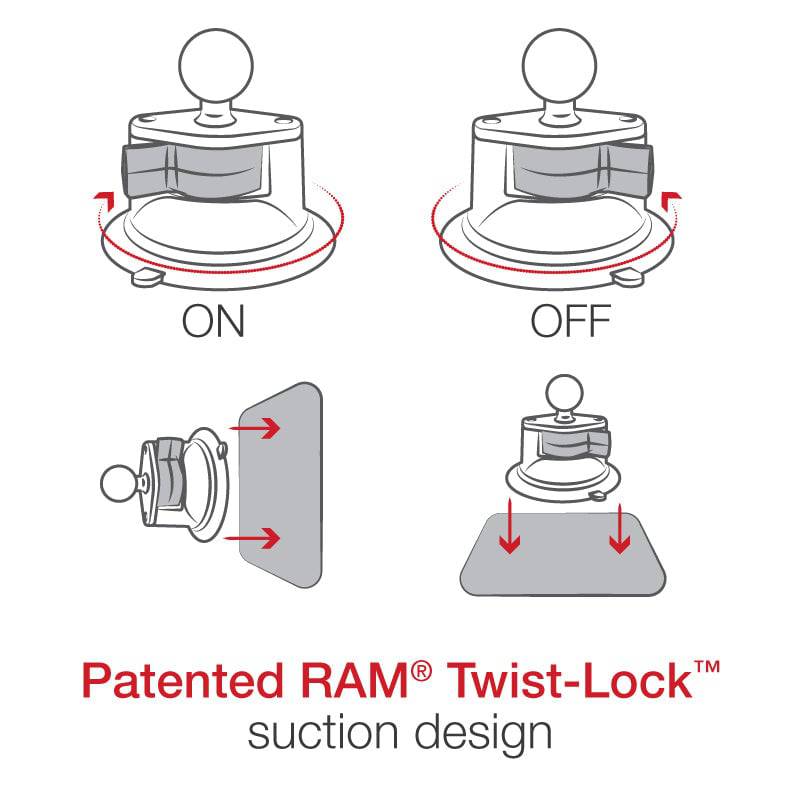

The RAM-B-166-G4 consists of a 3.3" suction cup twist lock base, double socket arm, 2" x 1.7" plate and custom hardware for the Garmin GPSMAP. The mount is designed with a RAM 1" diameter patented rubber ball and socket system that has adjustment points at both ends of the double socket arm; this allowing for almost infinite adjustment and perfect viewing angles. Simply attach the suction cup base to the windshield of your vehicle for an easy and safe way to view your handheld device in your vehicle. The included hardware allows your device to attach directly to the mount.

HARDWARE INCLUDED

Assembly Hardware
(3) #8-32 x 5/8" Machine Screws
(3) #8-32 Nylock Nuts


PRODUCT DIMENSIONS

Overall Height: 6.69"


SUCTION SIZE

3.3" Diameter


SOCKET-TO-SOCKET LENGTH

3"


HOLE PATTERN

4-Hole AMPS: 1.181" x 1.496"
3-Hole 120-Degree: 1.812" Diameter


BALL/SOCKET SIZE

B Size (1")


WEIGHT CAPACITY

Standard Use: 2 lbs
Heavy-Duty Use: 1 lb


MATERIALS

Marine-grade aluminum
High strength composite


PACKAGING TYPE

Retail Bag


WEIGHT

0.8 lbs.

Garmin

Striker 4

Striker 4dv

Striker Plus 4cv

Striker Vivid 4cv

echo 100

echo 150

echo 300c

ECHOMAP Plus 42cv

ECHOMAP Plus 43cv

ECHOMAP Plus 44cv

ECHOMAP Plus 45cv
