RAM-B-166-G1

RAM® Twist-Lock™ Suction Cup Mount for Garmin GPSMAP 195 & 295 - RAM-B-166-G1

OVERVIEW

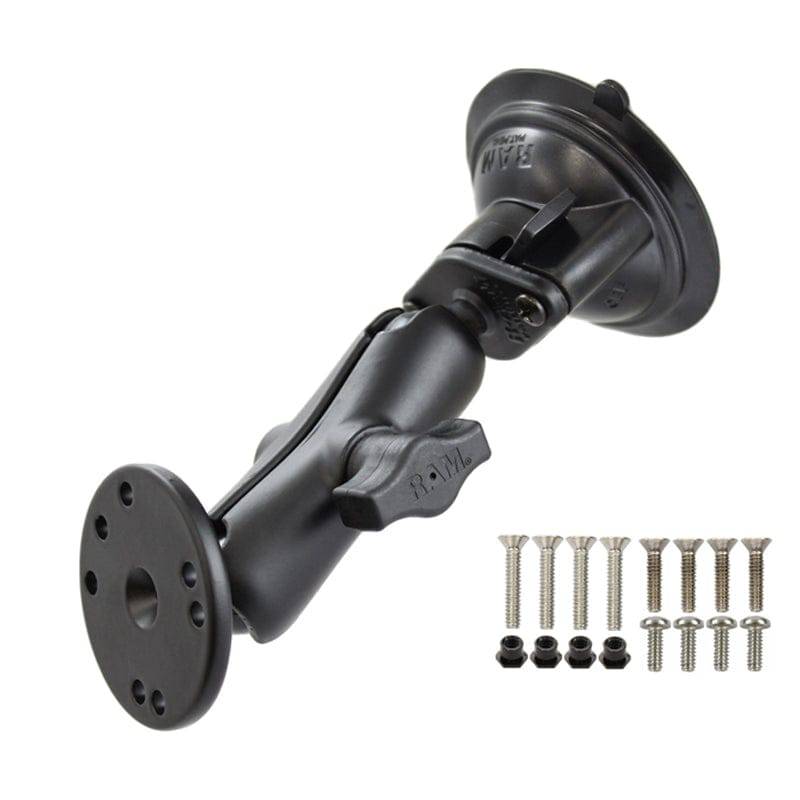

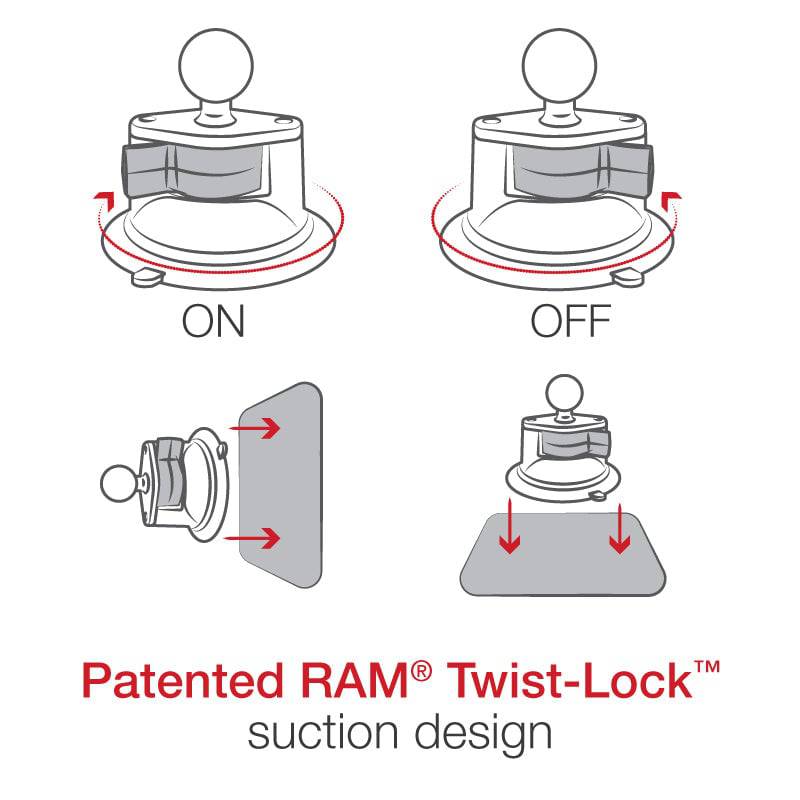

The RAM-B-166-G1, twist lock suction cup mount consists of a 3.3" suction cup locking base, socket system and 2.5" round base for connecting to the Garmin factory GPSMAP and StreetPilot cradle. The mount is designed with a RAM 1" diameter patented rubber ball and socket system that has adjustment points at both ends of the double socket arm; this allowing for almost infinite adjustment and perfect viewing angles. Simply attach the suction cup base to the windshield of your vehicle for an easy and safe way to view your handheld device in your vehicle. High quality materials ensure your electronic device is safe, secure, and within easy reach. RAM’s patented design also dampens shock and vibration helping to extend the life of your mobile device.

HARDWARE INCLUDED

Assembly Hardware
(4) #6-32 x 5/8" Machine Screws
(4) #6-32 x 7/8" Machine Screws
(4) #6-32 x 3/8" Machine Screws
(4) #6-32 Nut Inserts


PRODUCT DIMENSIONS

Overall Height: 6.69"


SUCTION SIZE

3.3" Diameter


SOCKET-TO-SOCKET LENGTH

3"


HOLE PATTERN

4-Hole AMPS: 1.181" x 1.496"
3-Hole 120-Degree: 1.812" Diameter


BALL/SOCKET SIZE

B Size (1")


WEIGHT CAPACITY

Standard Use: 2 lbs
Heavy-Duty Use: 1 lb


MATERIALS

Marine-grade aluminum
High strength composite


PACKAGING TYPE

Retail Bag


WEIGHT

0.8 lbs.

Garmin

StreetPilot III

GPSMAP 172-250
