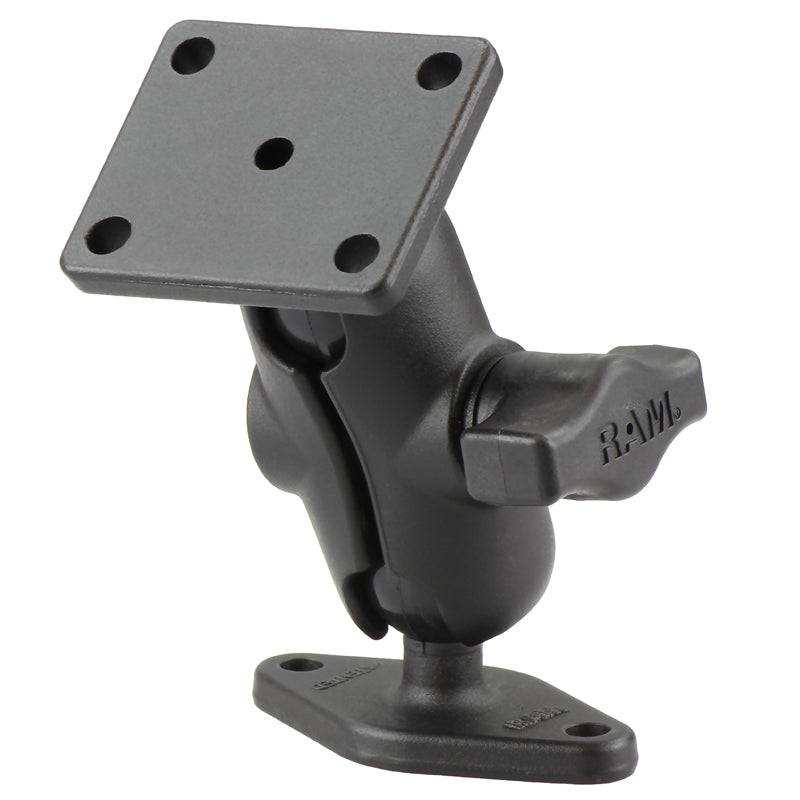

RAM® Universal Double Ball Mount with 2-Hole & 4-Hole AMPS Plates - RAM-B-140U-A

The RAM-B-140U-A consists of a short double socket arm, a 2" X 1.7" ball plate with the 4 hole AMPS hole pattern, and a diamond ball plate with the 2 hole AMPS hole pattern. The mount is designed with a 1" diameter patented rubber ball and socket system that has adjustment points at both ends of the double socket arm; this allowing for almost infinite adjustment and perfect viewing angles. The AMPS hole pattern on each plate will connect to most any RAM cradle or holder.

PRODUCT DIMENSIONS

Overall Height: 3.75"

SOCKET-TO-SOCKET LENGTH

1.75"

HOLE PATTERN

Diamond Plate: 2-Hole AMPS: 1.912"
Rectangular Plate: 4-Hole AMPS: 1.181" x 1.496"

BALL/SOCKET SIZE

B Size (1")

WEIGHT CAPACITY

Standard Use: 2 lbs
Heavy-Duty Use: 1 lb

MATERIALS

Marine-grade aluminum

PACKAGING TYPE

Poly Bag
