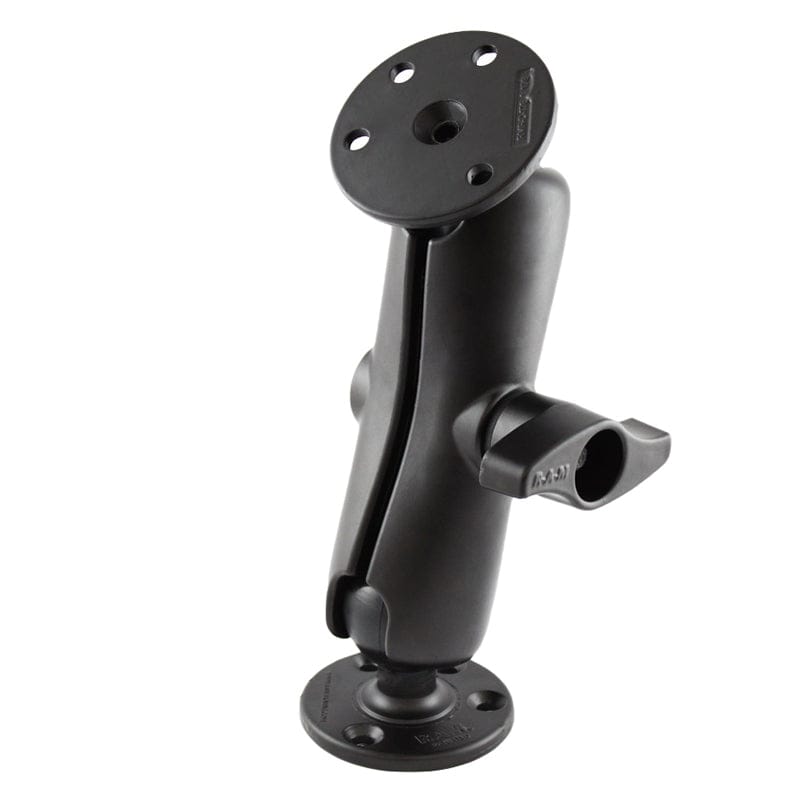

RAM® Universal Double Ball Mount with Two Large Round Plates - RAM-D-101U

The RAM-D-101U consists of (2 qty) 3.68" diameter round bases and STANDARD length double socket arm. The 3.68" diameter round bases have pre-drilled holes, including two holes at 180 degrees and three holes at 120 degrees. Designed into the mount is a 2.25" diameter patented rubber ball and socket system with adjustment points at both socket ends of the arm.

PRODUCT DIMENSIONS

Overall Height: 11.125"

SOCKET-TO-SOCKET LENGTH

6.88"

HOLE PATTERN

See Drawing

PLATE SIZE

3.68" Diameter

BALL/SOCKET SIZE

D Size (2.25")

WEIGHT CAPACITY

Standard Use: 6 lbs
Heavy-Duty Use: 5 lbs

MATERIALS

Marine-grade aluminum

PACKAGING TYPE

Poly Bag

WEIGHT

3.95 lbs.
