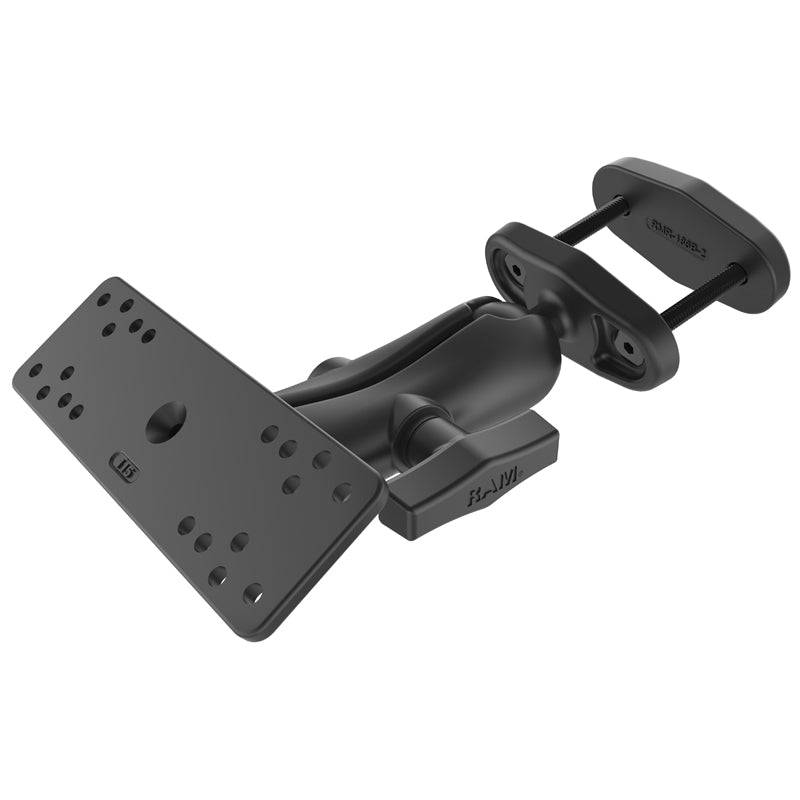

RAM® Universal Marine Electronic Mount for Square Posts up to 2" Wide - RAM-111-247U-2

The RAM-111-247-2U with clamp base, consists of the 1.5 inch diameter ball and socket system with RAM universal rectangular 6.25 x 2 inch base. This mount is designed to be a universal mounting solution for large and heavy electronic devices, including GPS, CB Radios, Ham Radios and more. The hole pattern found on the rectangular base will connect to a large variety of third party cradle, gimbal brackets and mounts. The mounting base is a perfect solution for mounting to the cabin frame work on a fork lift, or any other square post up to 2 inches square.

Dimensions:
Overall Length: 17.63"
Overall Height: 8.89"
Length from bottom of base to top of knob: 7.08"

Material:
Powder Coated Marine Grade Aluminum
Ball Size:
C Size 1.5" Rubber Ball

Note:
The "U" in the part number reflects product packaged in poly bag. The included plate is a universal mounting bracket with a selection of mounting hole locations. In certain applications additional holes may need to be drilled for proper fit with your electronic device.

Weight Capacity:
Up to 4 lbs

Weight:
5.0 lbs.

 Square Post Clamp Base Assembly Guide - PDF
