RAM® USB-C Powered Dock + USB-A & RJ45 Data for Samsung Tab Active5 & 3 - RAM-HOL-SAM60CP-RJ45AU

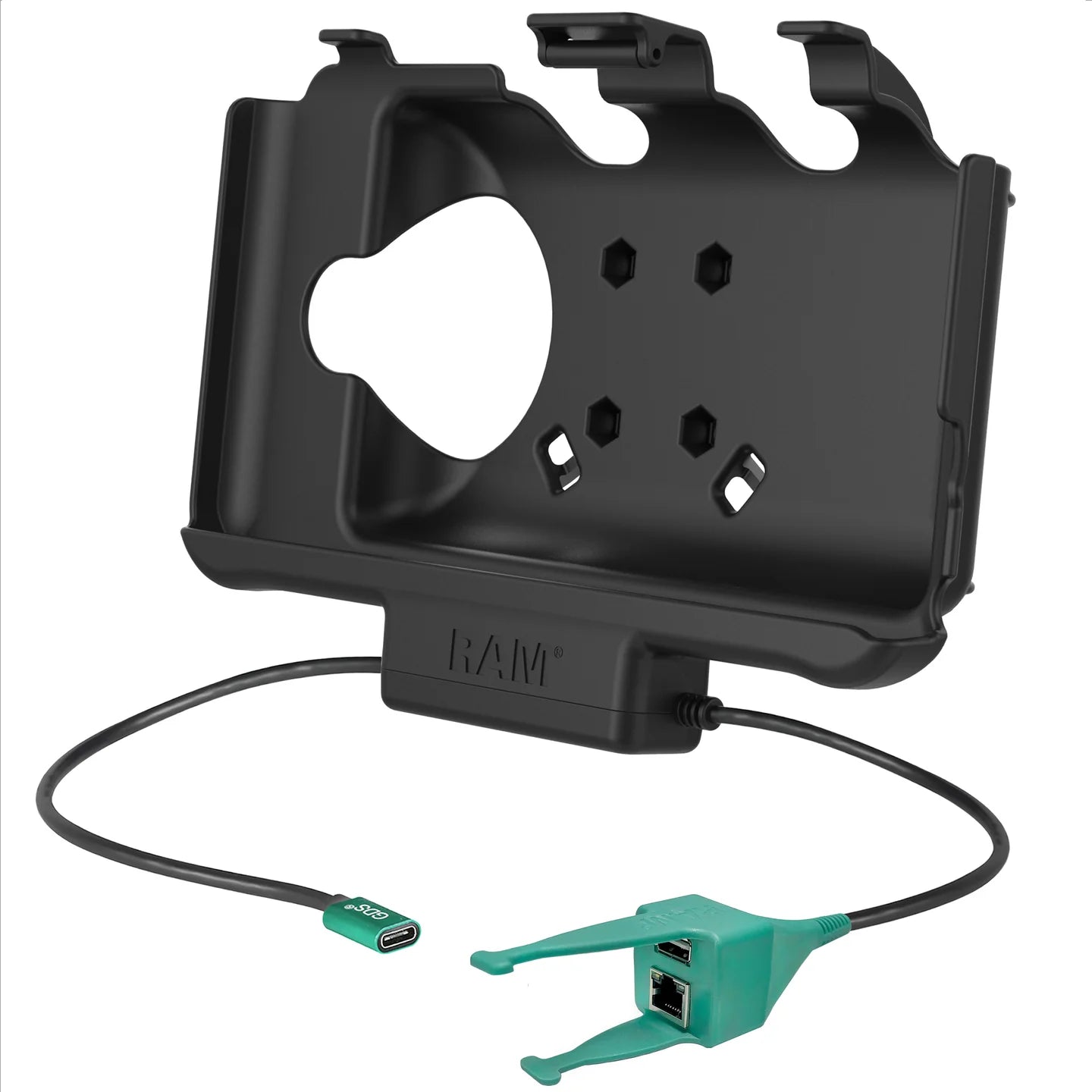

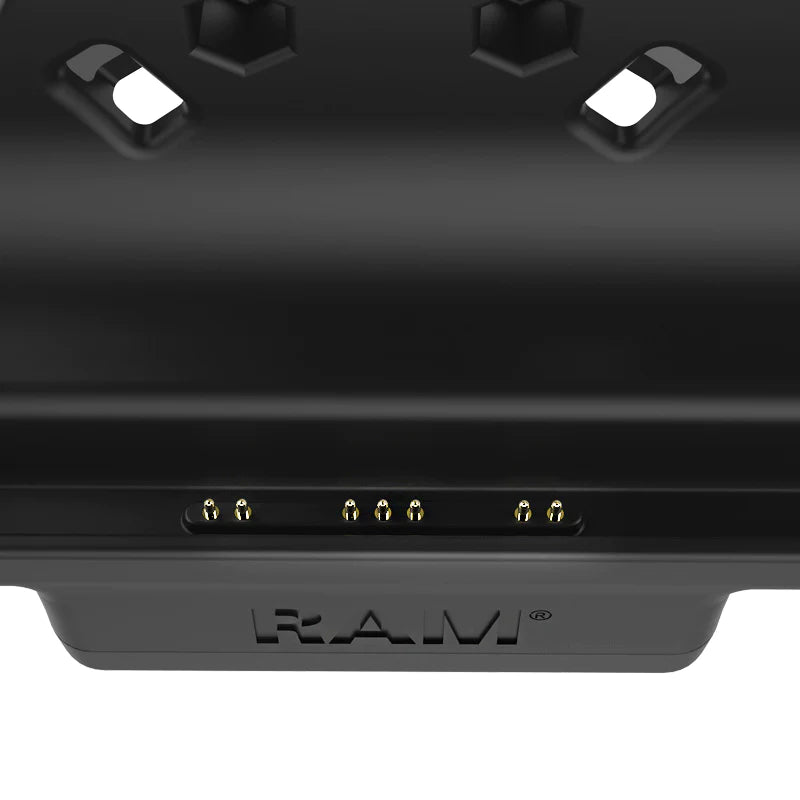

The RAM^® USB-C Powered Dock + USB-C & RJ45 Data for Samsung Tab Active5 & Tab Active3 (RAM-HOL-SAM60CP-RJ45AU) was thoughtfully designed to meet the demands of commercial truck drivers, field service technicians, pupil transporters, logistics managers, forklift operators, and more. Power and data sync capabilities are provided to the device through GDS^® pogo pins while taking advantage of this dock's dual USB Type-A and RJ45 (ethernet) pigtail to support up to two additional peripheral devices, making this the ideal, compact mounting solution for your mobile workstation.

This modular dock is compatible with the RAM^® Skin^™, factory device skin, and GDS^® Hand-Stand^™. Access to the stylus remains while the device is docked. Included is a set of four nuts and bolts to connect the dock to any RAM^® components containing the universal AMPS hole pattern along with cable clamps and zip ties for cable retention.

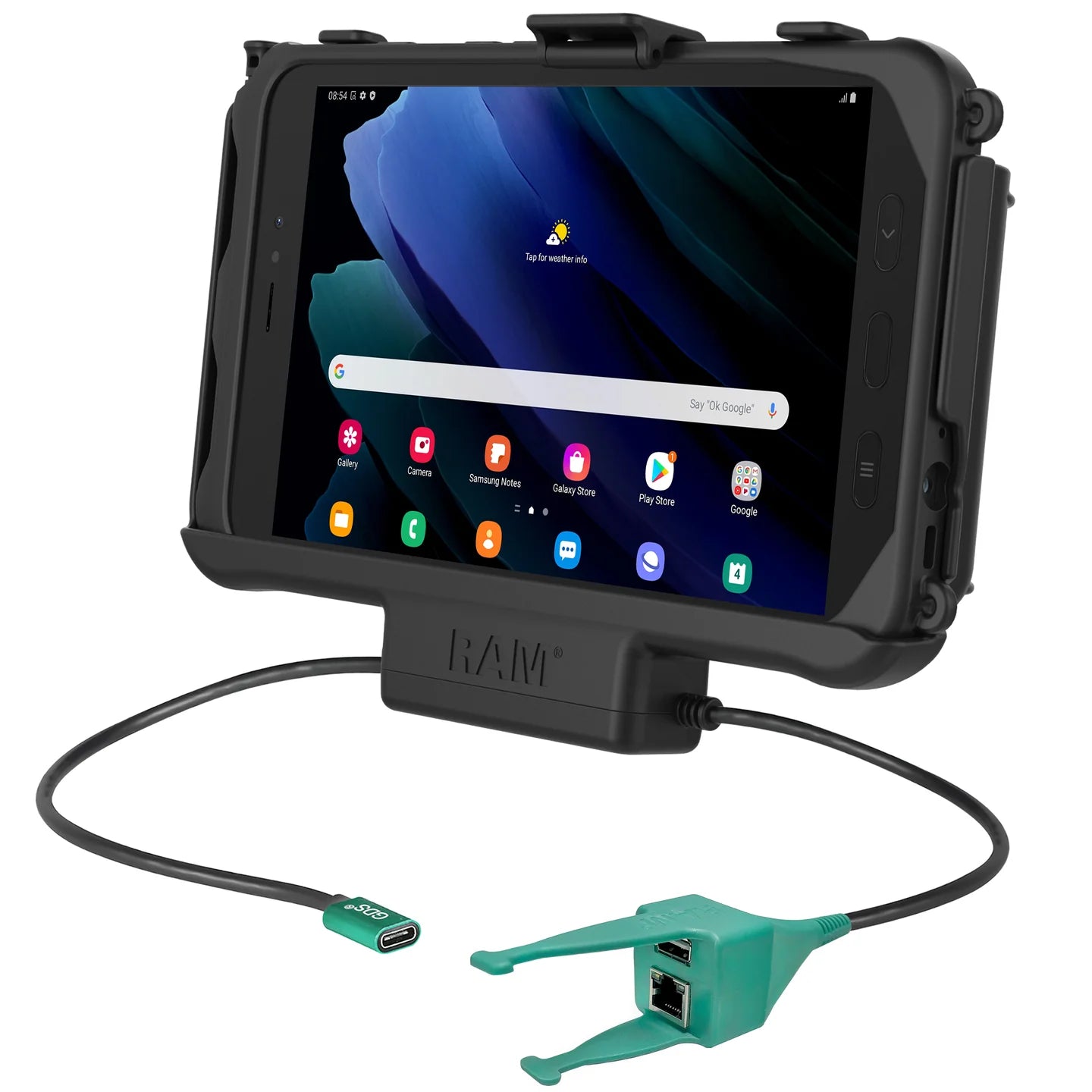

• RAM® EZ-Roll'r™ form-fit powered dock designed specifically for the Samsung Galaxy Tab Active5 & 3; provides charging through an integrated pogo pin connection and USB-C cable

• Compatible with the Samsung OEM skin as well as the RAM® Skin™; built-in cavity in the back allows for GDS® Hand-Stand™ compatibility

• Connect one additional peripheral device via USB Type-A and ethernet via RJ45 ports

• Access to speakers, mics, and headphone jack remain while device is docked; allows access to the GDS® shoulder strap loops on RAM® Skin™

• Backed by a 3-year warranty

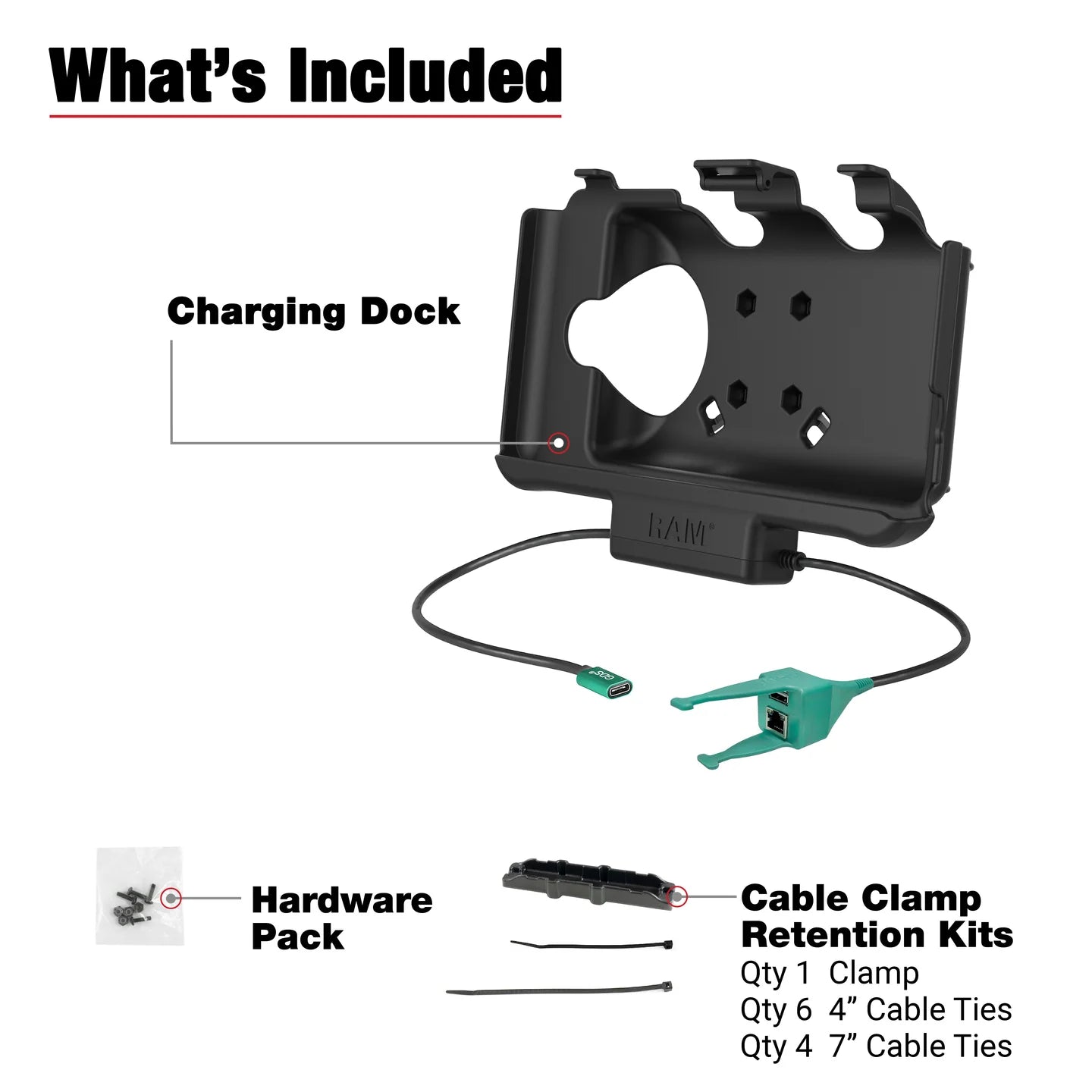

HARDWARE INCLUDED
(4) #8-32 x 5/8" Machine Screws
(4) #8-32 Nylock Nuts
(1) Cable Clamp
(4) Large Cable Ties
(6) Small Cable Ties

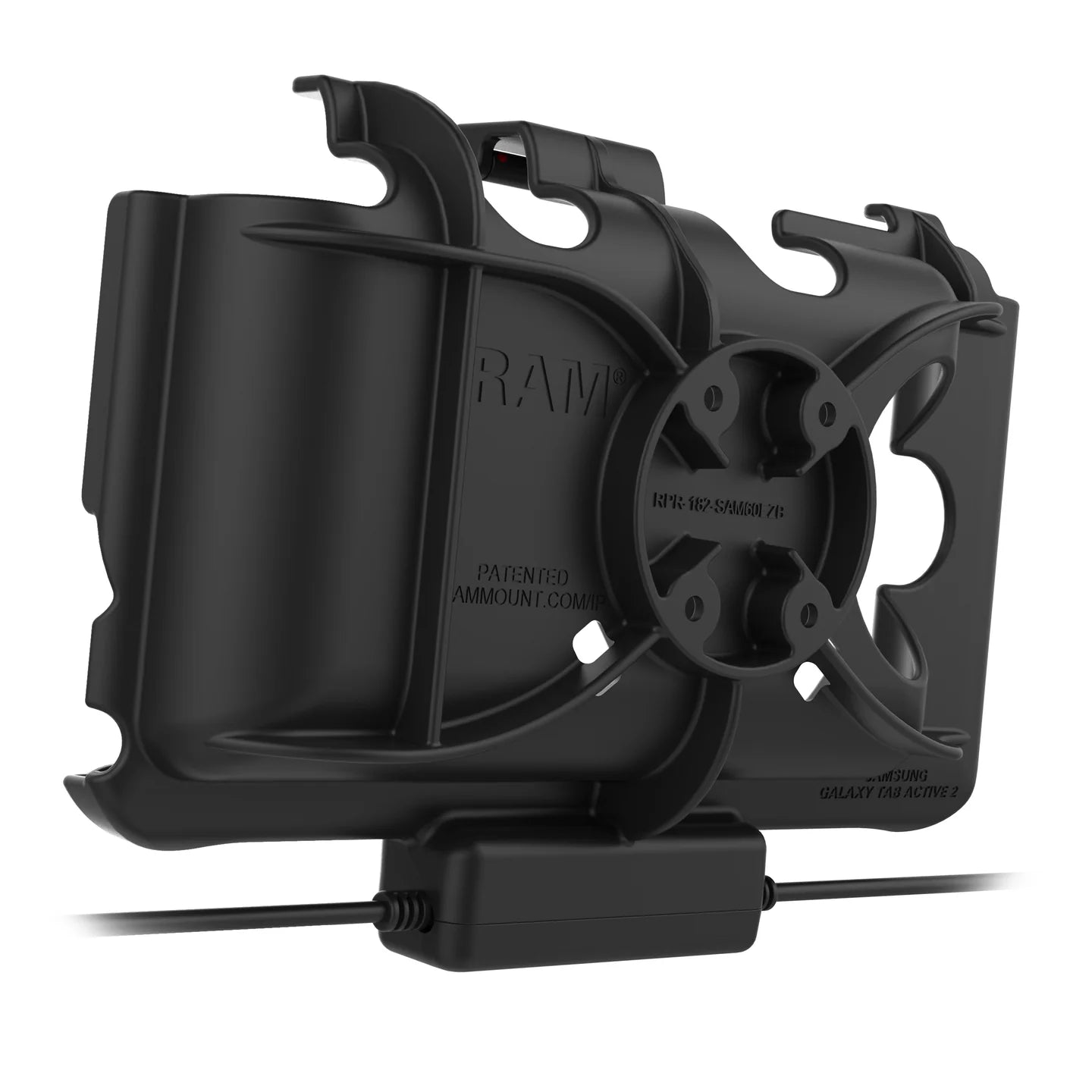

HOLE PATTERN
4-Hole AMPS: 1.181" x 1.496"

MATERIALS
High strength composite

INPUT VOLTAGE
5.3-5.4VDC

OUTPUT VOLTAGE
5VDC

POWER OUTPUT
500mA

INPUT CONNECTOR
USB Type-C Female

INPUT CABLE LENGTH
215mm

OUTPUT CONNECTOR
(1) USB-A Female
(1) RJ45

OUTPUT CABLE LENGTH
215mm

TRANSFER SPEED
480Mbps

Samsung Tab Active3

Samsung Tab Active5
