RAM-VPR-107-1

RAM® Vehicle Pole Mount for Mobile Printers with Rear Feed - RAM-VPR-107-1

$107.49 $120.49

In Stock - Ships for Free!

SPECS & FEATURES
PRODUCT INFORMATION
COMPONENTS
COMPATIBLE DEVICES
ACCESSORIES

SPECS & FEATURES

Spring-loaded RAM® Quick-Draw™ holder provides easy removal of your Zebra, Intermec or Printronix printer (check compatibility section)
Double U-bolt base is compatible with rails and bars ranging from 1.25" to 1.5" in diameter
Made of powder-coated, marine-grade aluminum, stainless steel, and high-strength composite for durability and reliability in the most demanding environments
Backed by a lifetime warranty

PRODUCT INFORMATION

OVERVIEW

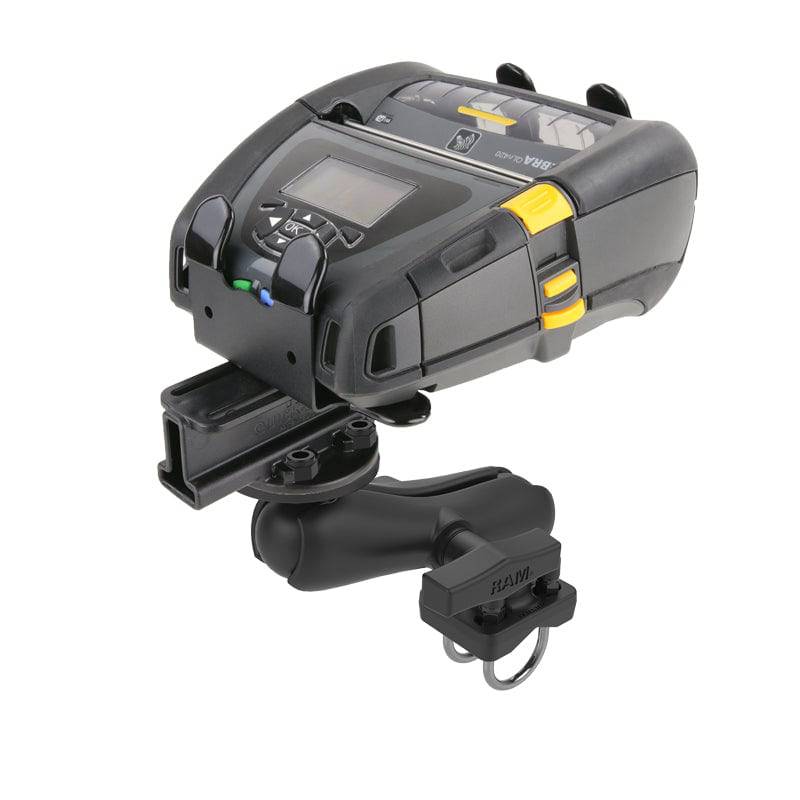

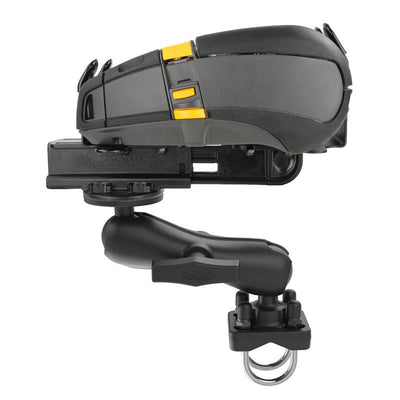

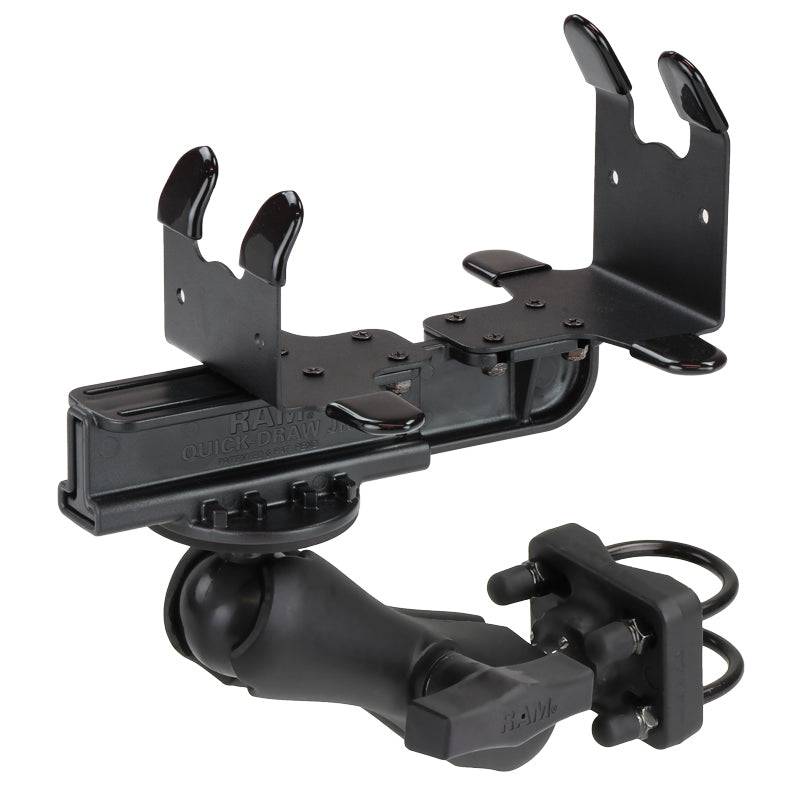

The RAM-VPR-107-1 uses a unique spring loaded mechanism that holds strong, yet provides easy removal for printer storage. At each end of the spring loaded cradle are small side clamp plates that are designed to fit cleanly around either edge of the printer. Included is a standard length arm and round pipe base, which will connect to any RAM^® Tele-Pole^™ and other poles with a diameter from 1.25" to 1.5".

HARDWARE INCLUDED

Assembly Hardware
(2) 1/4"-20 U-Bolts for 1.25" - 1.5" Rails
(4) 1/4"-20 Nylock Nuts
(4) Rubber Caps

HOLDER DIMENSIONS

Max Height: 2.5" (tall side)
Max Height: 1.75" (short side)
Width Range: 6.125" - 10"

CLAMP RANGE

1.25" - 1.5" diameter

SOCKET-TO-SOCKET LENGTH

4.66"

BALL/SOCKET SIZE

C Size (1.5")

WEIGHT CAPACITY

Standard Use: 4 lbs
Heavy-Duty Use: 3 lbs

MATERIALS

Powder coated steel
Marine-grade aluminum
High strength composite

PACKAGING TYPE

Poly Bag

WEIGHT

2.3 lbs.

COMPONENTS

RAM Printer Cradle For Portable Printers With Rear Feed Paper - RAM-VPR-107

RAM C Size 1.5" Ball Rail Mount With Double U-Bolt Base & 2.5" Round Plate AMPs Hole Pattern - RAM-101U-235-1

COMPATIBLE DEVICES

Citizen

CMP-30

CMP-40

Honeywell

PB50

PB51

Printronix

M4L

Intermec

PB50

PB51

ACCESSORIES

Mixed Combination RAM® Pin-Lock™ Security Knob And Key Knob For 1.5" Diameter C Size Arms - RAP-S-KNOB5U
