RAM® X-Grip® Mount with Glare Shield Clamp Base for 7"-8" Tablets - RAM-B-177-UN8U

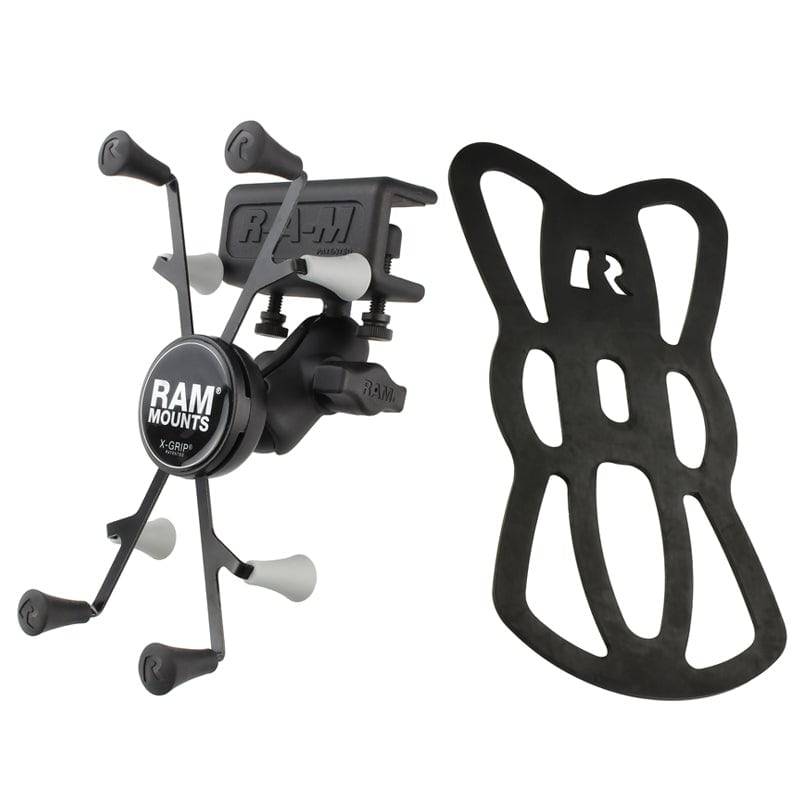

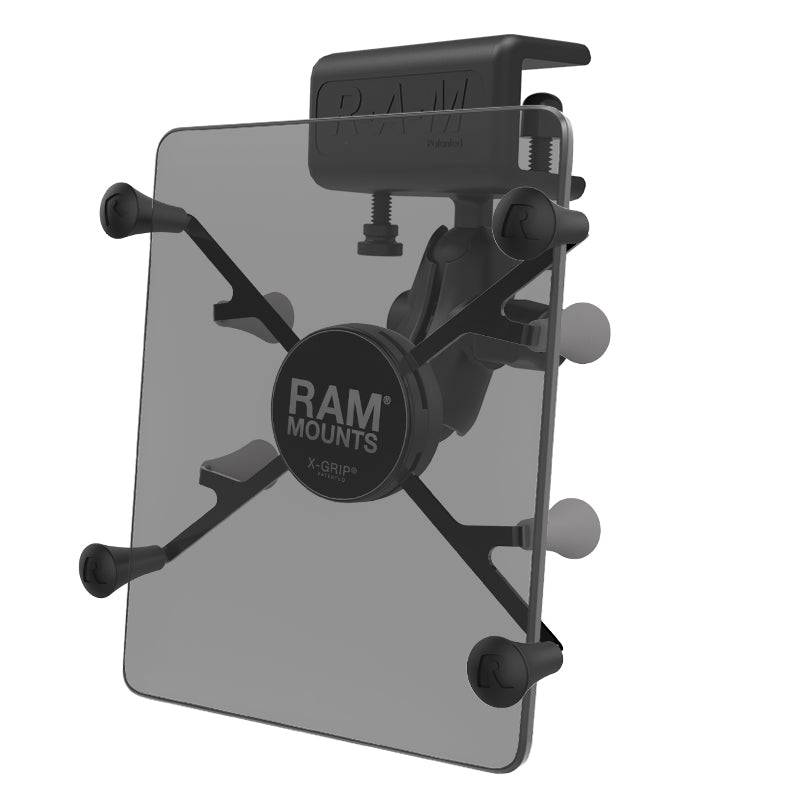

The RAM-B-177-UN8U consists of a glare shield clamp base, double socket arm and universal spring loaded X-Grip^® cradle for 7"-8" tablets. Simply locate the clamp on any clamping surface up to 5/8" thick and gently snug the nylon thumb screws. The mount is designed with a RAM 1" diameter patented rubber ball and socket system that has adjustment points at both ends of the double socket arm; this allowing for almost infinite adjustment and perfect viewing angles. The spring loaded X-Grip^® cradle expands and contracts, allowing for a perfect custom fit of your 7"-8" tablet. Included are extra easy access grip knobs, located on the back of the cradle for quick release of your tablet. The X-Grip^® includes a device tether recommended for outdoor applications. The cradle is compatible with handheld devices that will fit the dimensions listed below. It is important to verify the dimensions of your handheld device with a case/sleeve/skin when determining the overall size.

HARDWARE INCLUDED

(1) Optional Tether
(1) Glue Tube for Rubber Caps
(2) 1/4"-20 x 1.25" Composite Thumb Screws
(2) Rubber Caps
(1) 1.93" x 3.06" Rubber Adhesive Pad

HOLDER DIMENSIONS

Width Range: 2.5" - 5.75"
Depth Range: .875" max

CLAMP RANGE

.625" max

SOCKET-TO-SOCKET LENGTH

1.75"

BALL/SOCKET SIZE

B Size (1")

WEIGHT CAPACITY

Standard Use: 2 lbs
Heavy-Duty Use: 1 lb

MATERIALS

Marine-grade aluminum
High strength composite

PACKAGING TYPE

Poly Bag

WEIGHT

0.82 lbs.
