      Home / Products / RAM® Double Ball Mount with 100x100mm VESA Plate and Large Knob - RAM-D-101-NEC2U
      RAM® Double Ball Mount with 100x100mm VESA Plate and Large Knob - RAM-D-101-NEC2U - OC Mounts

      RAM-D-101-NEC2U

      RAM® Double Ball Mount with 100x100mm VESA Plate and Large Knob - RAM-D-101-NEC2U

      Out of Stock    ( Chat Live to get an ETA )

      OVERVIEW

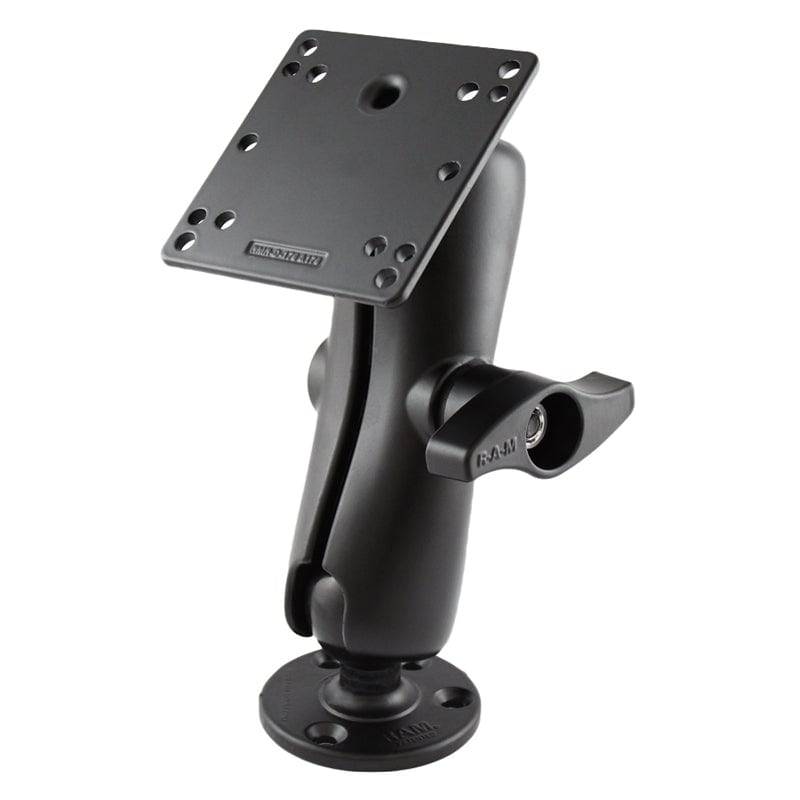

      The RAM-D-101-NEC2U consists of a 3.68" diameter round base, STANDARD length double socket arm with large knob and 4.75" square plate. The 3.68" diameter round base has pre-drilled holes, including two holes at 180 degrees and three holes at 120 degrees. The 4.75" square plate contains 4x100mm holes and 4x75mm holes in each corner. Designed into the mount is a 2.25" diameter patented rubber ball and socket system with adjustment points at both socket ends of the arm.

      PRODUCT DIMENSIONS

      Overall Height: 11.125"

      SOCKET-TO-SOCKET LENGTH

      6.88"

      HOLE PATTERN

      See Drawings

      BALL/SOCKET SIZE

      D Size (2.25")

      WEIGHT CAPACITY

      Standard Use: 6 lbs
      Heavy-Duty Use: 5 lbs

      MATERIALS

      Marine-grade aluminum

      PACKAGING TYPE

      Poly Bag

      WEIGHT

      3.62 lbs.

      Drawing File - Large Round Ball Plate - PDF

      Drawing File - 100 x 100mm VESA Plate - PDF

      RAM 4.75" Square VESA Plate With D Size 2.25" Ball - RAM-D-246URAM 4.75" Square VESA Plate With D Size 2.25" Ball - RAM-D-246U

      RAM 3.68" Diameter Round Plate With D Size 2.25" Ball - RAM-D-202URAM 3.68" Diameter Round Plate With D Size 2.25" Ball - RAM-D-202U
