RAM® Double Ball Mount with Backing Plate & Diamond Plate - RAM-B-138U-225B2

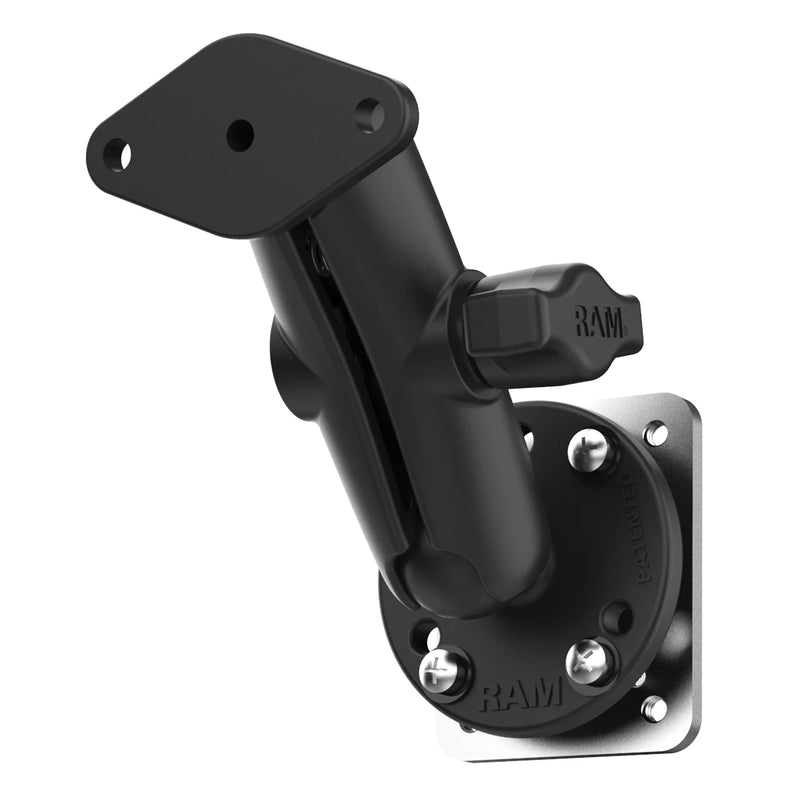

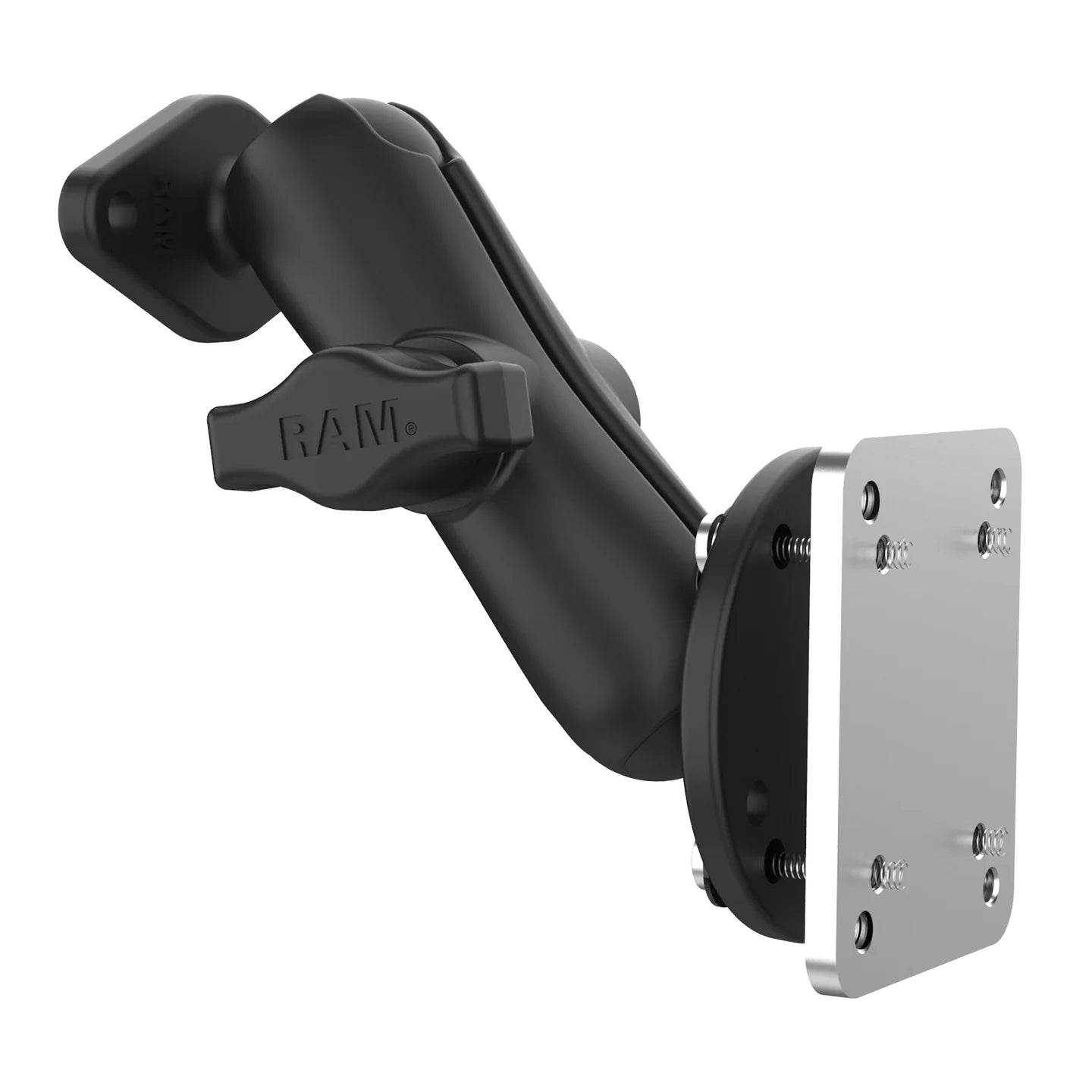

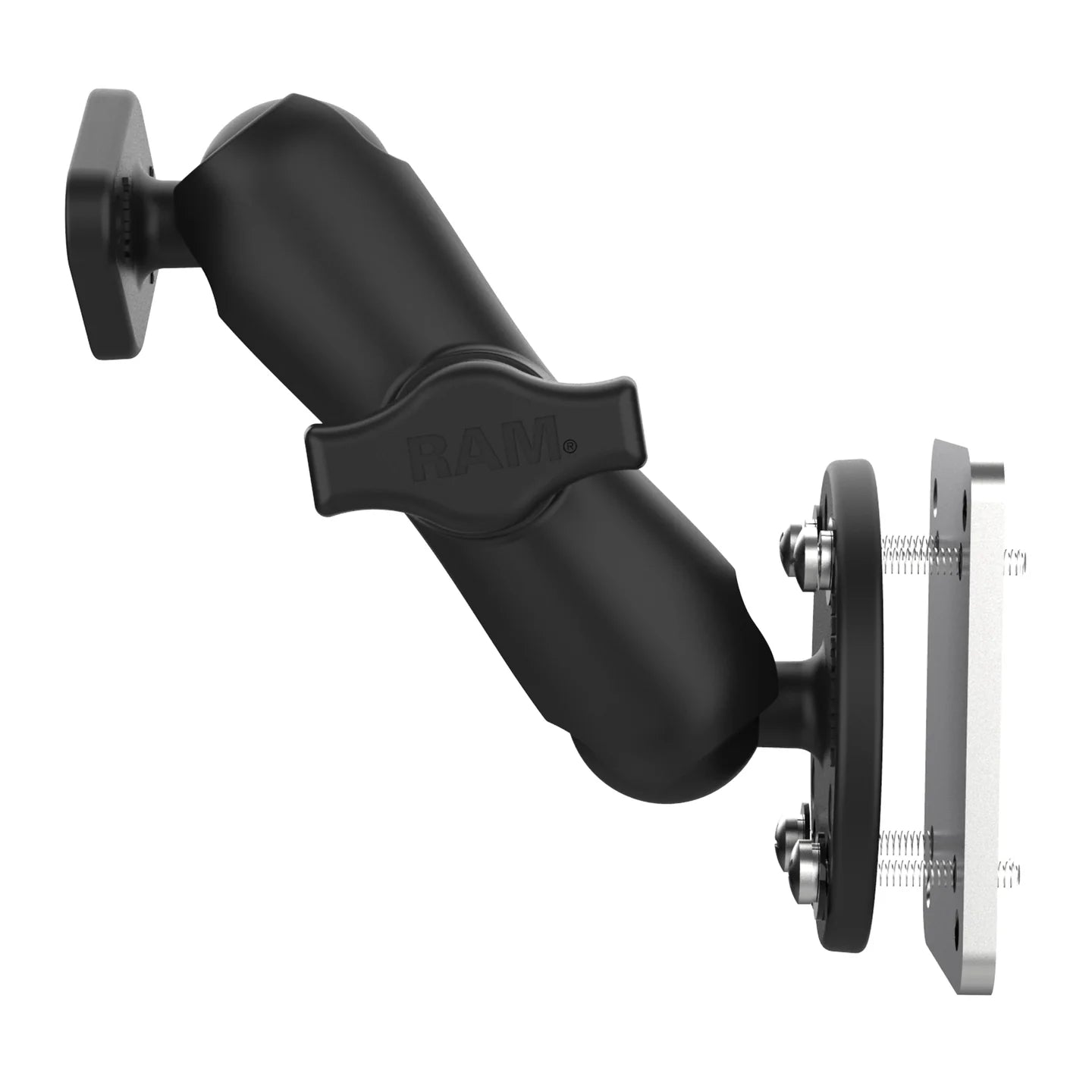

The RAM® Double Ball Mount with Backing Plate & Diamond Plate (RAM-B-138U-225B2) consists of a double socket arm, one 2.5" diameter round base, one 2.43" x 1.31" diamond base, one 2.10" x 2.60" backing plate, and mounting hardware. Each base features the universal AMPS hole pattern, making them compatible with all RAM® device holders. The mount is designed with a 1" diameter rubber ball and socket system that features adjustment points at both ends of the double socket arm, allowing for near-infinite adjustability for ideal viewing angles.

• 2.43" x 1.31" diamond base with B size 1" RAM® rubber ball connects to RAM® device holders containing the universal AMPS hole pattern; includes B size medium length double socket arm

• 2.10" x 2.60" steel backing plate provide support for mount when drilling in and securing to thin surfaces, like dashboards

• Ball and socket technology allows for near-infinite adjustability

• Made of powder-coated, marine-grade aluminum for durability and reliability in the most demanding environments

• Backed by a lifetime warranty

hardware included:
(1) 2.10" x 2.60" Steel Backing Plate
(4) #8-32 x 1" Screws
(4) #8 Split Lock Washers
(4) #8 Flat Washers

product dimensions:
Overall Height: 5"

socket to socket length:
3"

hole pattern:
2-Hole AMPS: 1.912"

ball size:
B Size (1")

weight capacity:
Standard Use: 2 lbs
Heavy-Duty Use: 1 lb

materials:
Marine-grade aluminum
Stainless steel

packaging type:
Poly Bag

Weight:
0.75 lbs
