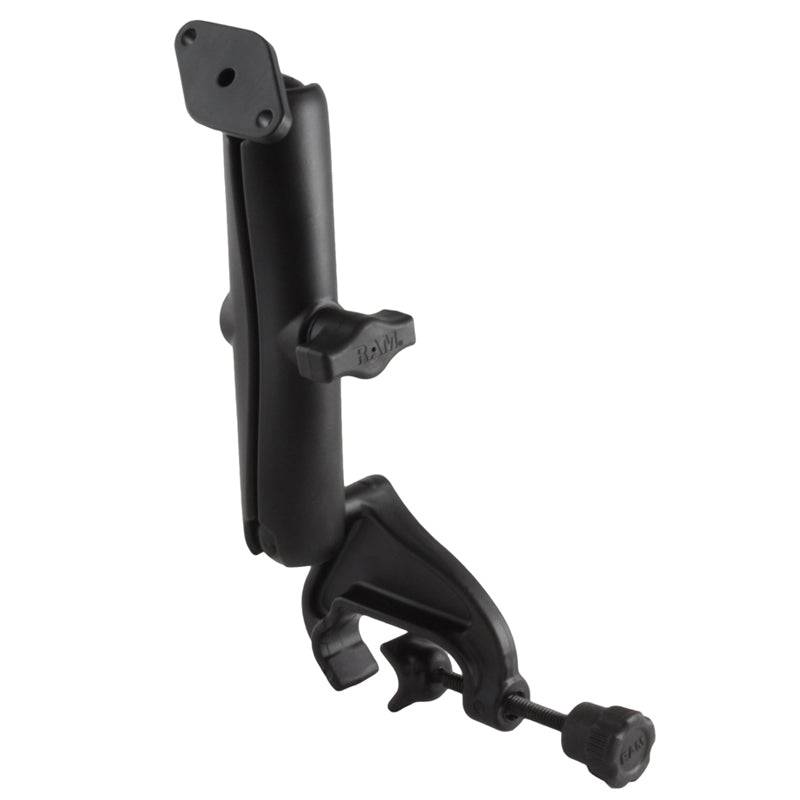

RAM® Double Ball Yoke Clamp Mount with Diamond Plate - RAM-B-121-C-238U

OVERVIEW

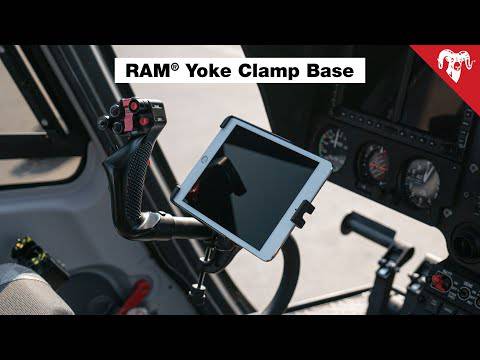

The RAM-B-121-C-238U consists of a yoke clamp base, LONG length double socket arm and 2.43" x 1.31" diamond base. The yoke clamp base will fit rails in diameter from 0.625" to a maximum of 1.25". The 1" rubber ball is at a right angle to the plane of the mount; when connected to a rail, the ball sits parallel to the rail. The diamond base has two holes 1.912" from center to center, matches the industry standard AMPS hole pattern and will connect to a large variety of RAM Mount and third party cradles. The mount is designed with a RAM 1" diameter patented rubber ball and socket system that has adjustment points at both ends of the double socket arm, allowing for almost infinite adjustment and perfect viewing angles.

CLAMP RANGE

.625" - 1.25"

SOCKET-TO-SOCKET LENGTH

5.31"

HOLE PATTERN

2-Hole AMPS: 1.912"

BALL/SOCKET SIZE

B Size (1")

WEIGHT CAPACITY

Standard Use: 2 lbs
Heavy-Duty Use: 1 lb

MATERIALS

Marine-grade aluminum

PACKAGING TYPE

Poly Bag

WEIGHT

0.72 lbs.

 RAM Yoke Clamp Base with 1" Rubber Ball - RAM-B-121BU

RAM Long Length Double Socket Arm for B Size 1" Balls - RAM-B-201U-C

RAM Diamond Plate 2.43" x 1.31" with B Size 1" Ball - RAM-B-238U

 Drawing File - Yoke Clamp Base - PDF

 Drawing File - Diamond Ball Plate - PDF

RAM 1" Add-A-Ball™ Accessory Base for any B-size Socket Arm - RAM-B-273U
