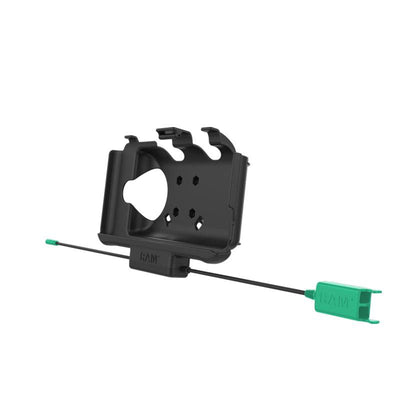

RAM® EZ Roll'r™ Dual USB Dock for Samsung Tab Active5 & 3 - RAM-HOL-SAM60PD2U

This RAM^® EZ-Roll’r^™power cradle for the Samsung Tab Active5,Tab Active3 and 2 has been designed to meet the demands of field workers in a variety of applications including transportation, field sales, logistics, manufacturing, and much more. Power and data sync capabilities are provided to the device through GDS^® pogo pins while taking advantage of this cradle's dual USB-A port supporting up to two peripherals making this the ideal, compact mounting solution for your mobile workstation. Access to the stylus remains while the device is docked. Included is a set of four nuts and bolts to connect the cradle to any B or C size RAM^® components containing the universal 4-hole AMPS pattern. This cradle also contains space in the back allowing for a GDS^® Hand-Stand^™attachment so you can easily take your Tab Active5,Tab Active3 or 2 from your vehicle, to your person, to your desk with zero hassle.

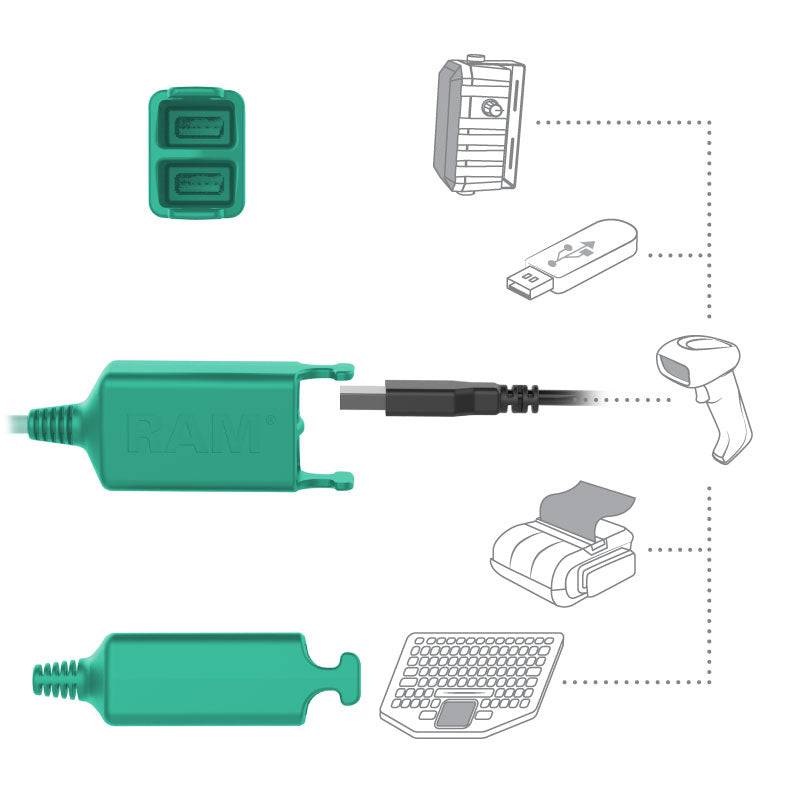

• RAM® EZ-Roll'r™ form-fit powered dock for the Samsung Galaxy Tab Active5, Tab Active3 and 2 provides charging and connects two additional USB peripherals through an integrated pogo pin connector
• Compatible with the Samsung OEM skin as well as the RAM® Skin™; built-in cavity in the back allows for GDS® Hand-Stand™ compatibility
• Access to speakers, mics, and headphone jack remain while device is docked; allows access to the GDS® shoulder strap loops on RAM® Skin™
• Backed by a 3-year warranty

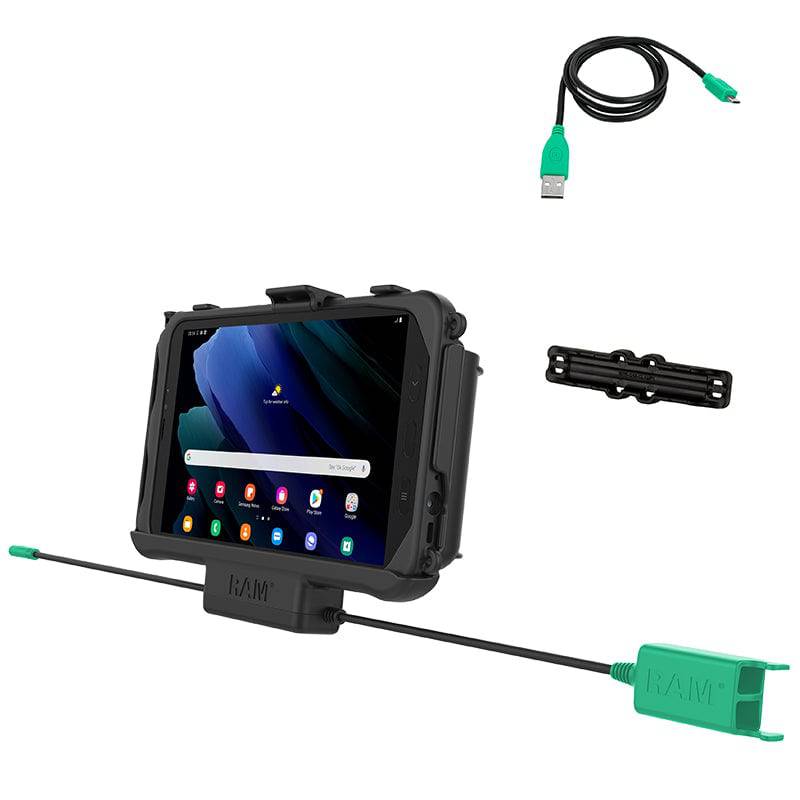

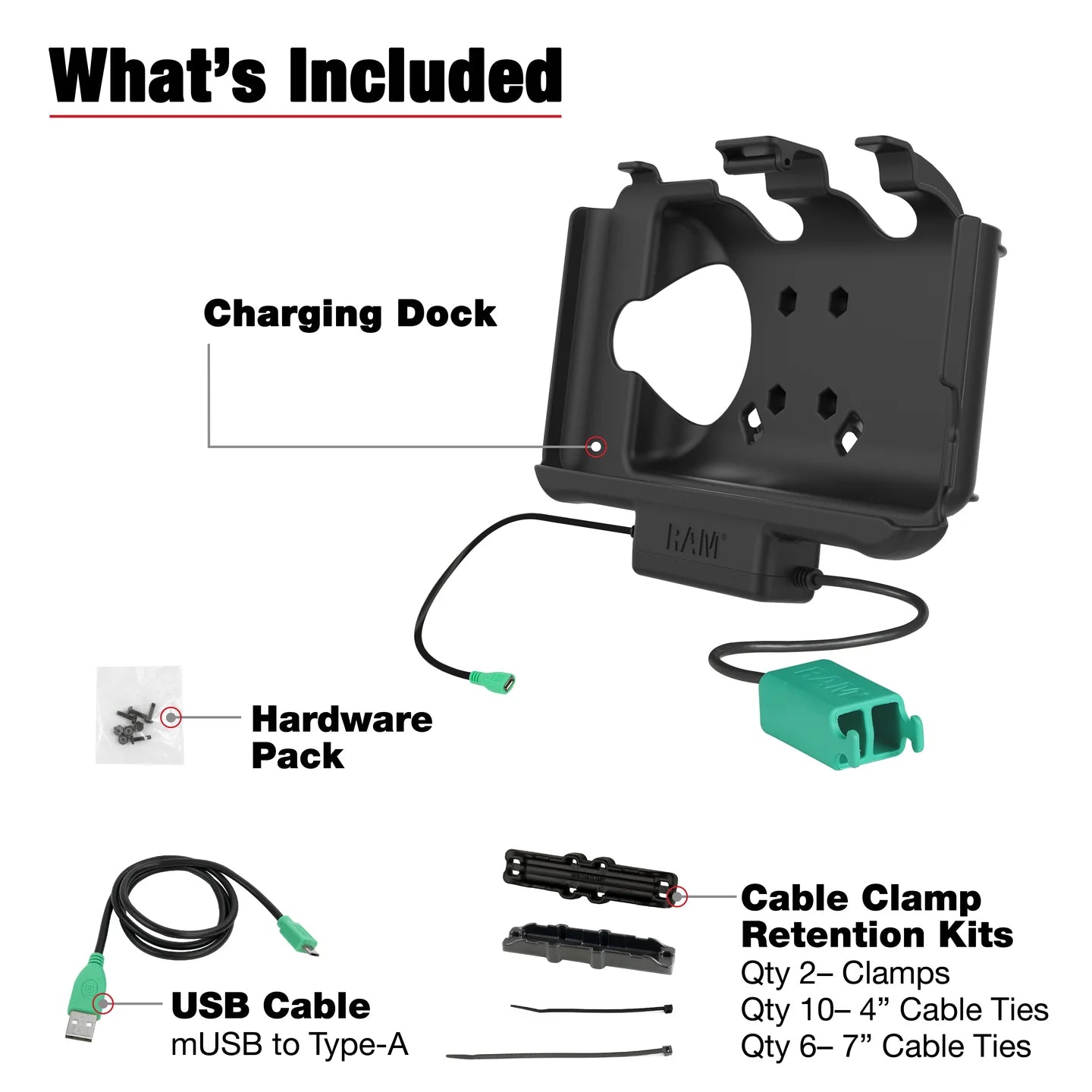

HARDWARE INCLUDED

(4) #8-32 x 5/8" Machine Screws
(4) #8-32 Nylock Nuts
(1) GDS® Genuine USB 2.0 Straight Cable
(1) Optional Cable Clamp Housing
(4) Large Cable Ties
(6) Small Cable Ties

PRODUCT DIMENSIONS

Width: 9.25"
Height: 6.375"
Depth: 2"

HOLE PATTERN

4-Hole AMPS: 1.181" x 1.496"

MATERIALS

High strength composite

PACKAGING TYPE

Poly Bag

INPUT VOLTAGE

4.4VDC - 5.4VDC (USB power source dependent)

OUTPUT VOLTAGE

4.4VDC-5.4VDC (USB power source dependent)

POWER OUTPUT

500mA per USB port

INPUT CONNECTOR

mUSB 2.0 Female

INPUT CABLE LENGTH

.22 Meter

OUTPUT CONNECTOR

(2) USB 1.1 Type A

OUTPUT CABLE LENGTH

.22 Meter

TRANSFER SPEED

12Mbps

WEIGHT

1.1 lbs.

WARRANTY STATUS

3 year warranty

Samsung

• Tab Active2

• Tab Active3

• Tab Active5
