RAM® No-Drill™ Ball Mount for '12-26 RAM 2500-5500 + More - RAM-VB-178A-DB2

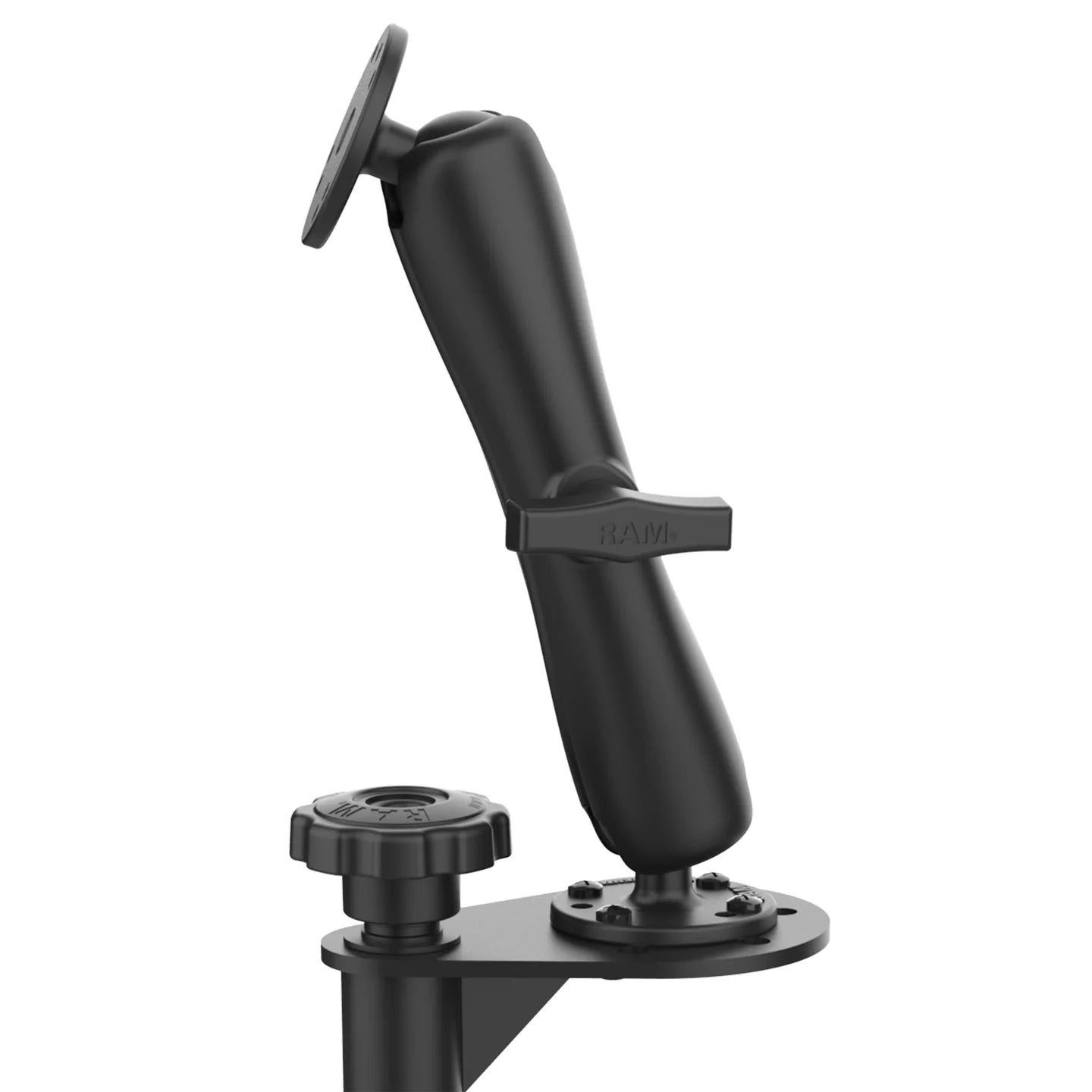

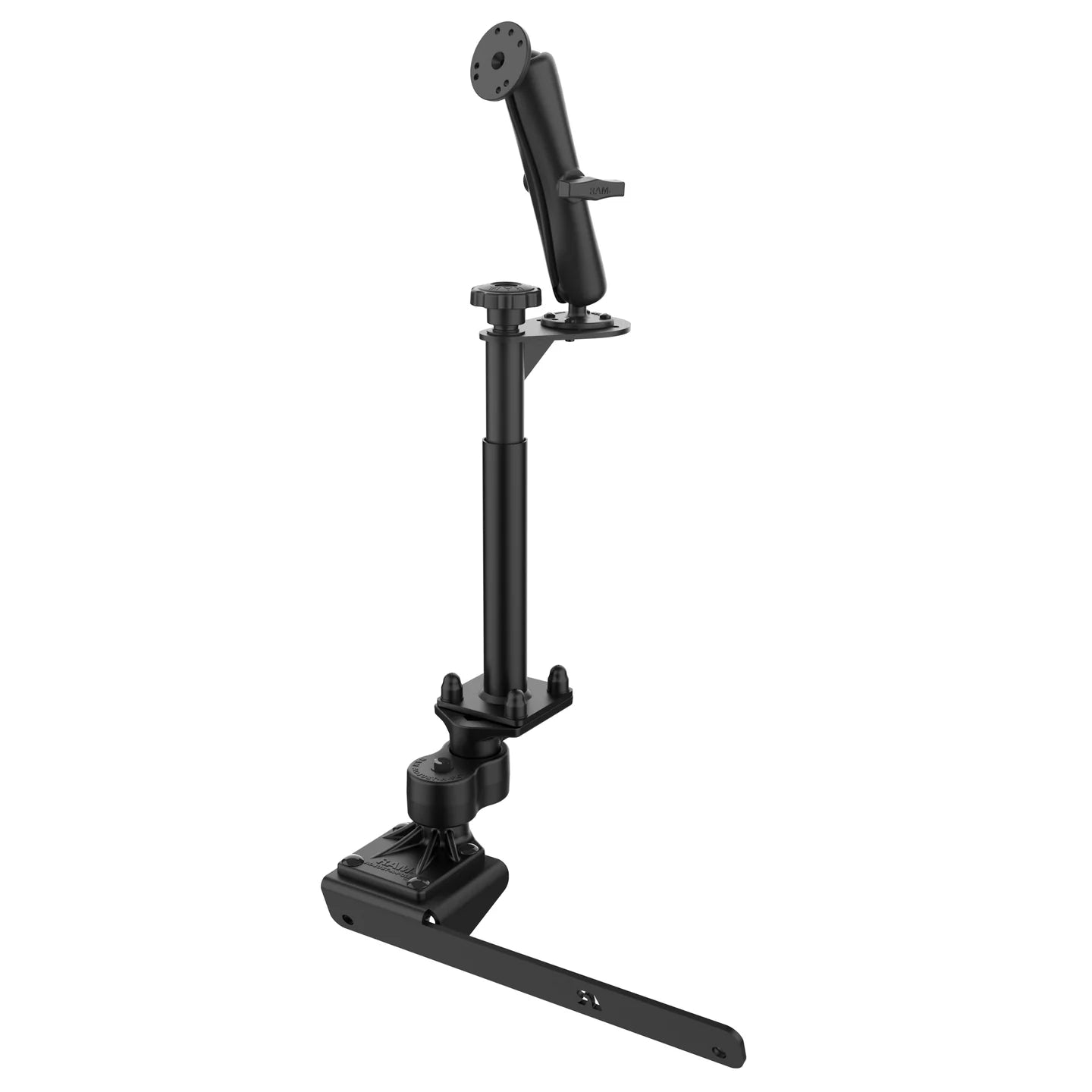

The RAM® No-Drill™ Ball Mount for '12-26 RAM 2500-5500 + More (RAM-VB-178A-DB2) installs quickly and easily into the specified vehicles using the existing hardware of the passenger side seat rails. This configuration provides a telescoping feature with upper and lower poles that allow you to set your mount to the desired height with the simple turn of a knob. The 3-part ball and socket system attached to the pole is compatible with a variety of device holders, while RAM® rubber ball and socket technology provides additional adjustability as well as shock and vibration isolation.

• Custom vehicle mount designed specifically for 2012-2026 Ram 2500-5500 trucks

• Requires no drilling into the vehicle and installs on the passenger side using the existing seat bolts

• Ball and socket mounting system offers shock and vibration damping

• Compatible with any RAM® holders or GDS® docks with a 4 hole AMPS pattern

• Backed by a lifetime warranty

HARDWARE INCLUDED
Assembly Hardware
(2) M8-1.25 x 60mm Hex Bolts
(2) 3/4" Stand-Offs
(2) 5/16" Flat Washers

SOCKET TO SOCKET LENGTH
8"

HOLE PATTERN
Seat Bolt Distance: 13.25" center to center

PLATE SIZE
2.5" Diameter

BALL SIZE
C Size (1.5")

WEIGHT CAPACITY
Standard Use: 4 lbs
Heavy-Duty Use: 3 lbs

MATERIALS
Powder coated steel
Marine grade-aluminum

PACKAGING TYPE
Box

WEIGHT
12.03 lb

Ram

• 1500 (2012-2018)

• 1500 Classic Only (2019-2023)

For 1500 - 5th Gen see RAM-VB-186ST1

• 2500-5500 (2012-2026)

GDS^® Keyboard^™ with Track Pad - RAM-KB2-USB

GDS^® Keyboard^™ with 10-Key Numeric Pad - RAM-KB4-USB

RAM^® 12" Double Swing Arm with Round Plate - C Size - RAM-VB-110-1U

RAM^® X-Grip^® Universal Holder for 12"-13" Tablets - RAM-HOL-UN11U

RAM^® Tab-Tite^™ Holder for 9"-10.5" Tablets with Heavy Duty Cases - RAM-HOL-TAB20U

RAM^® X-Grip^® Universal Holder for 9"-11" Tablets - RAM-HOL-UN9U

This kit is intended to support tablets and not laptops. Low profile design limits intrusion on passenger side leg space. Base will not interfere with levers or factory installed console or 4WD lever. Base designed to accommodate trucks with power take-off (PTO.)

  RAM^® Tele-Pole^™ Assembly Instructions

RAM No-Drill Seat Bases Instructions 178 Series

RAM^® Adjust-A-Pole^™ Instructions
