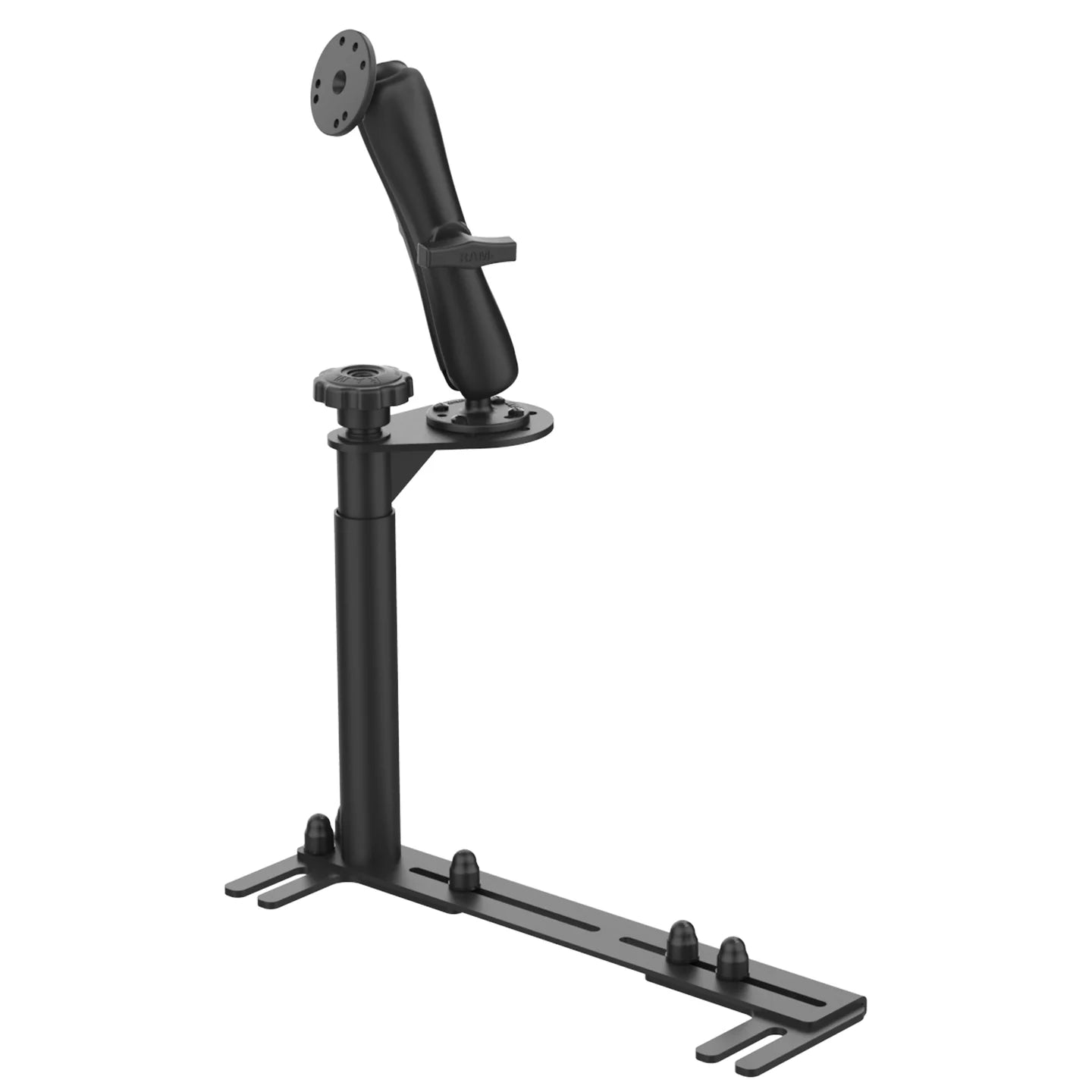

RAM® No-Drill™ Universal Vehicle Floor Mount with Double Ball Mount - RAM-VB-196-DB2

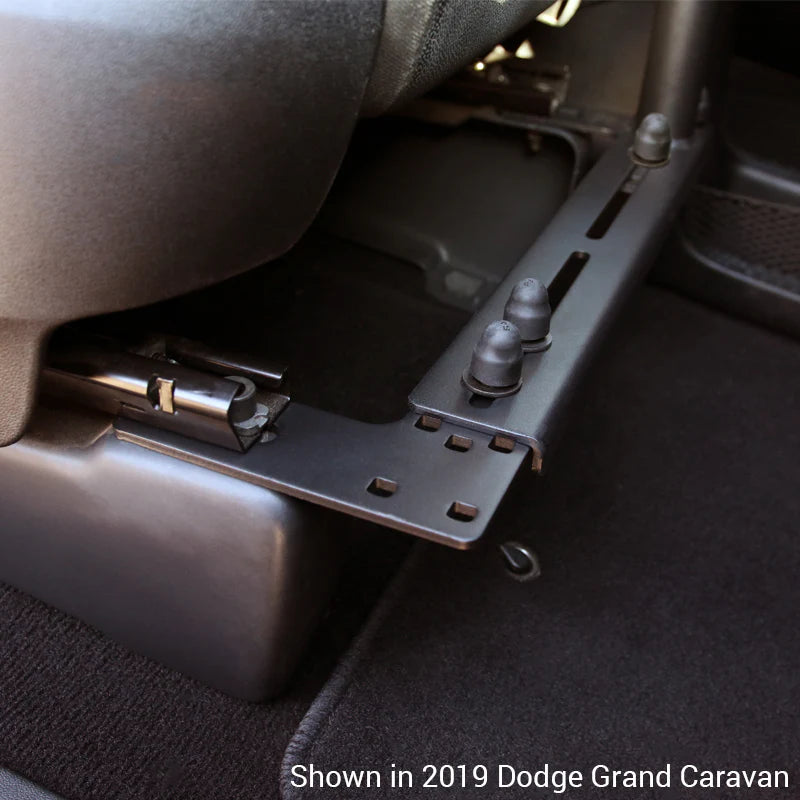

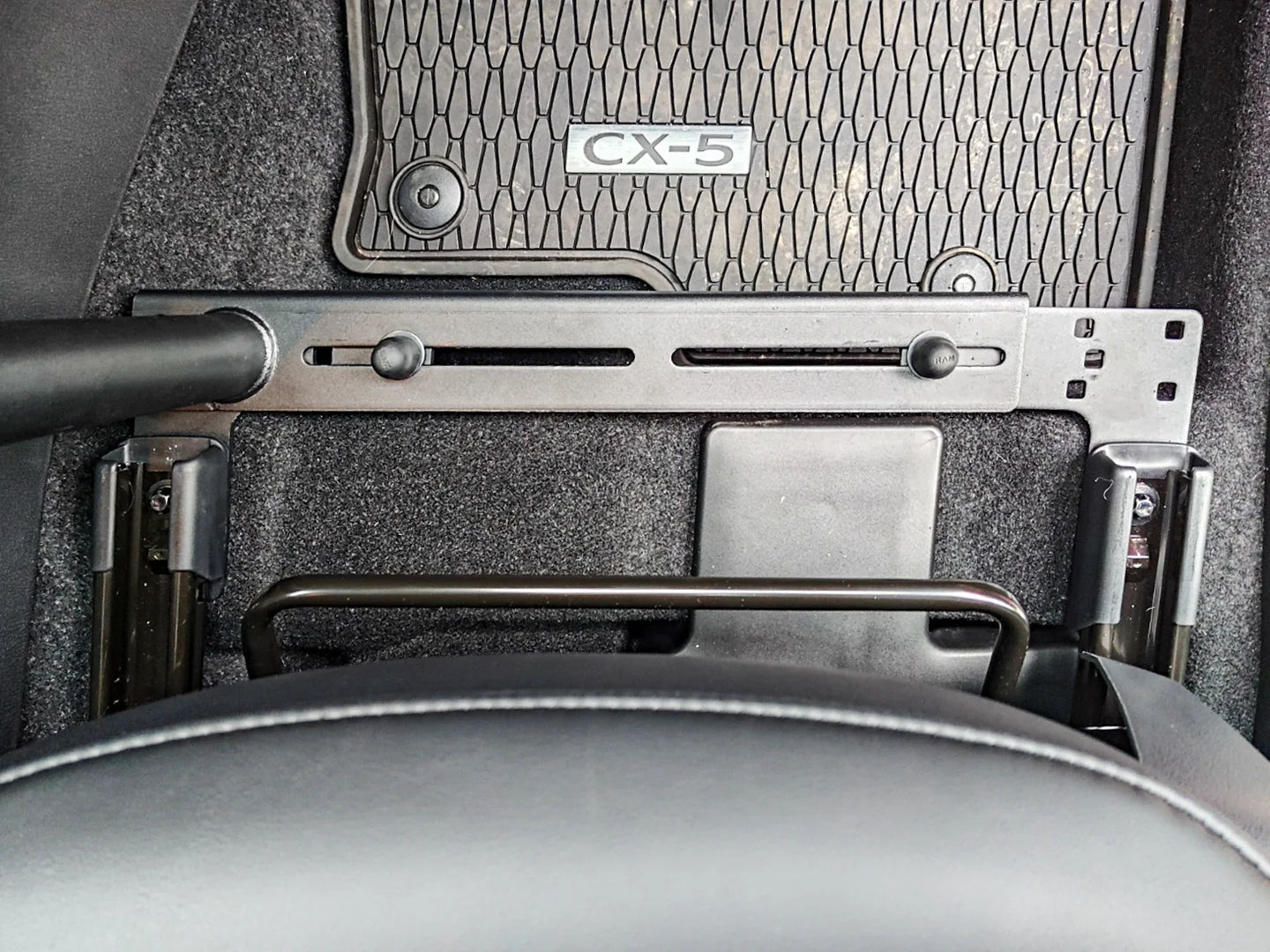

The RAM® No-Drill™ Universal Vehicle Floor Mount with Double Ball Mount (RAM-VB-196-DB2) features a heavy-duty steel mounting base designed to fit a variety of vehicles. Using the front bench or passenger side seat rail bolts as attachment points, secure the base with the existing vehicle hardware.

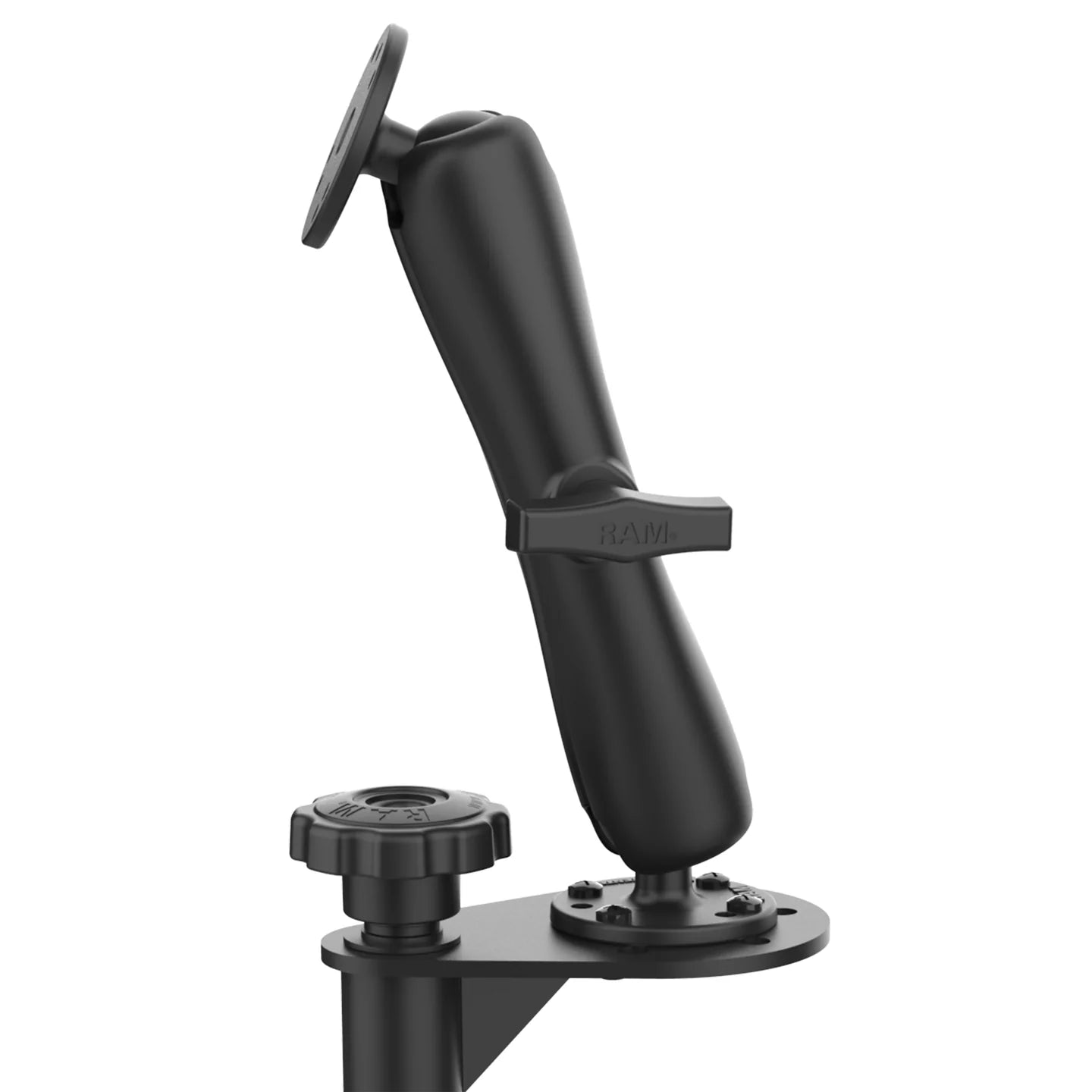

This configuration provides a telescoping feature with upper and lower poles that allow you to set your mount to the desired height with the simple turn of a knob. The 3-part ball and socket system attached to the pole is compatible with a variety of device holders, while RAM® rubber ball and socket technology provides additional adjustability as well as shock and vibration isolation.

• Custom, RAM® No-Drill™ mounting base offers lowest profile in the industry

• Universal adjustable base accommodates a wide range of vehicles (see Additional Information)

• Ball and socket mounting system offers shock and vibration damping

• Compatible with any RAM® holders or GDS® docks with a 4 hole AMPS pattern

• Backed by a lifetime warranty

HARDWARE INCLUDES
Assembly Hardware
Stabilizer Foot

SOCKET TO SOCKET LENGTH
8"

HOLE PATTERN
4-Hole AMPS: 1.181" x 1.496"
3-Hole 120-Degree: 1.812" Diameter
Seat Bolt Distance: 9"-18.875" center to center

PLATE SIZE
2.5" Diameter

BALL SIZE
C Size (1.5")

WEIGHT CAPACITY
Standard Use: 4 lbs
Heavy-Duty Use: 3 lbs

MATERIALS
Powder coated steel
Marine grade-aluminum

PACKAGING TYPE
Box

WEIGHT
11.25 lb

Will this mount install in your vehicle? Learn more by following the steps in this document:

Universal Vehicle Laptop Mount Compatibility Guide

This kit is intended to support tablets and not laptops. Depending on your vehicle, some installations may limit the adjustability of the passenger seat.
