RAM-B-149Z-A-UN14W-V7M
Out of Stock
( Chat Live to get an ETA )

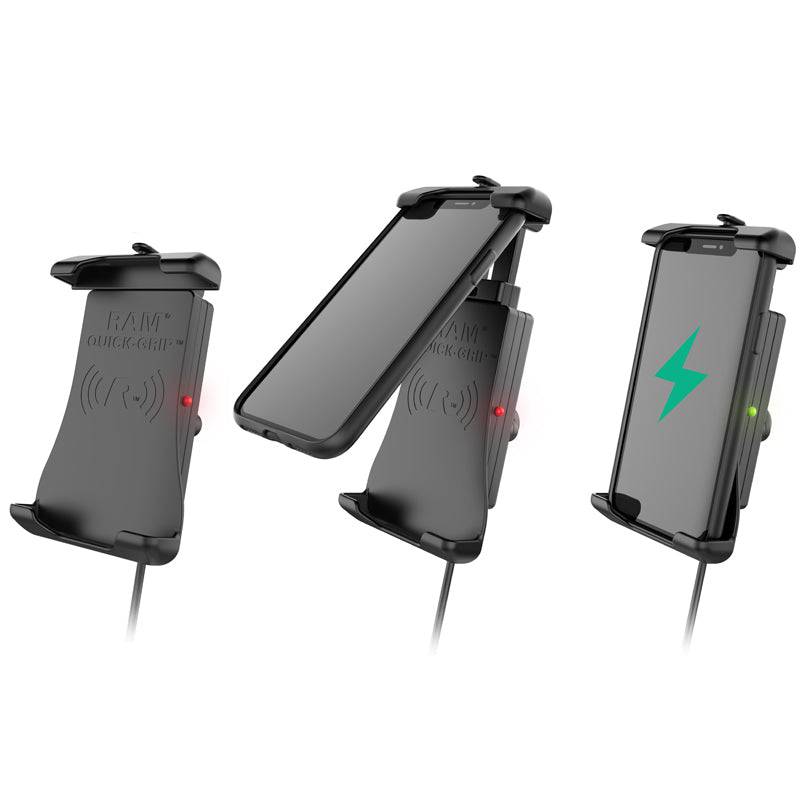

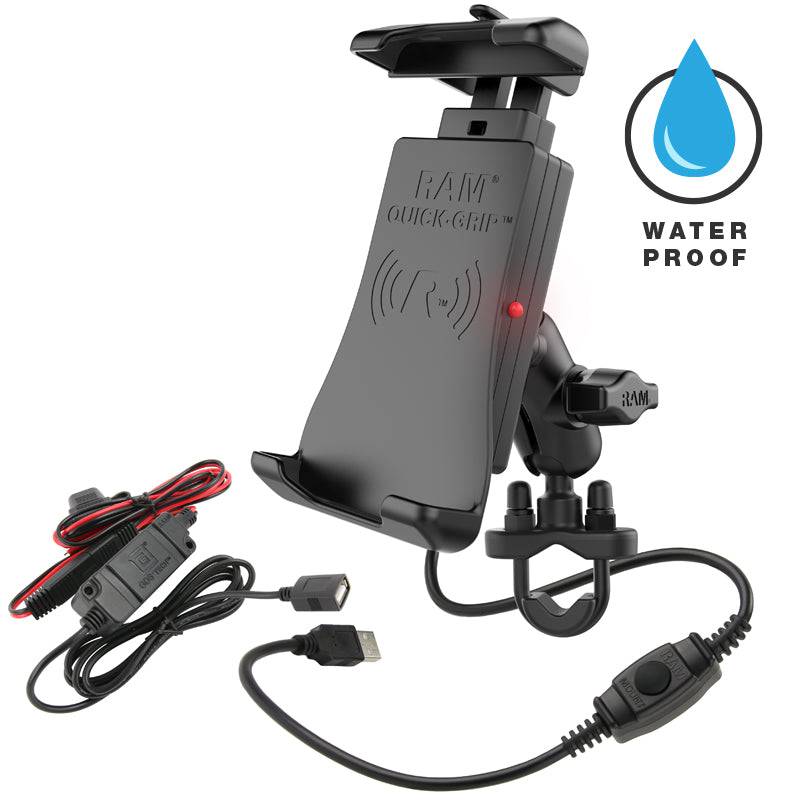

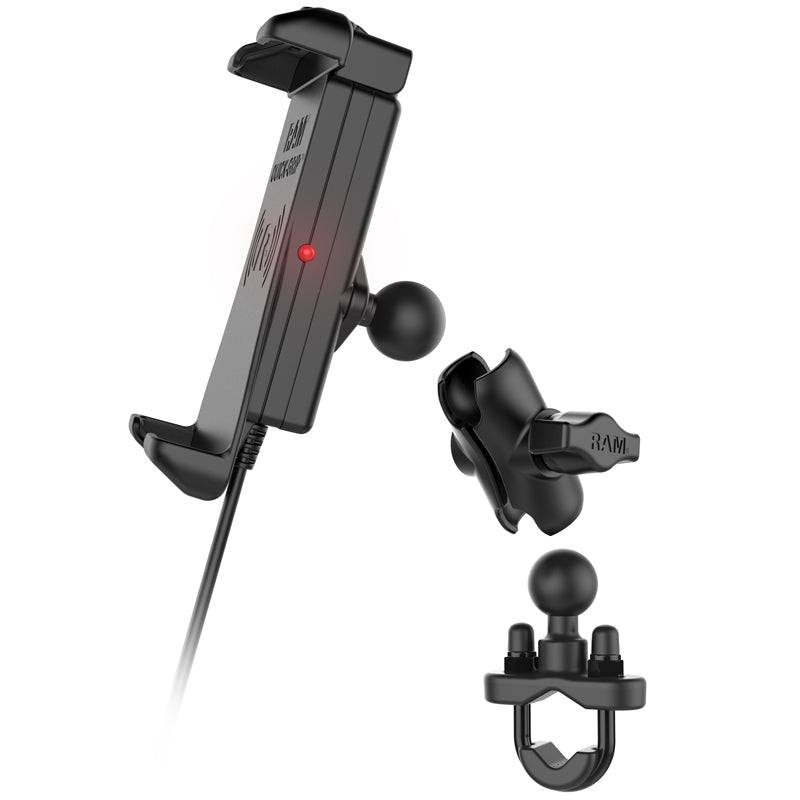

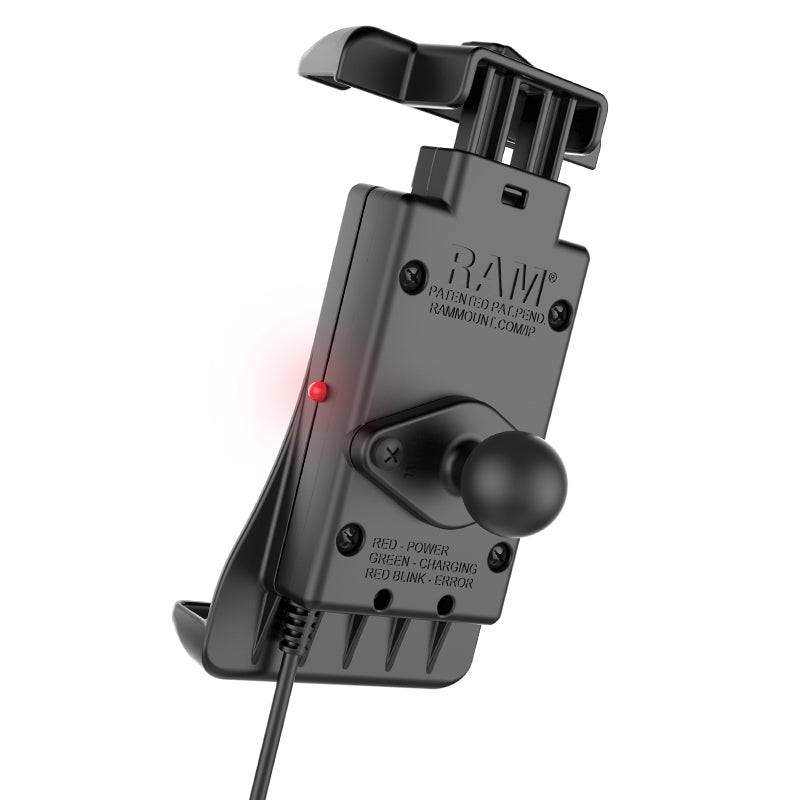

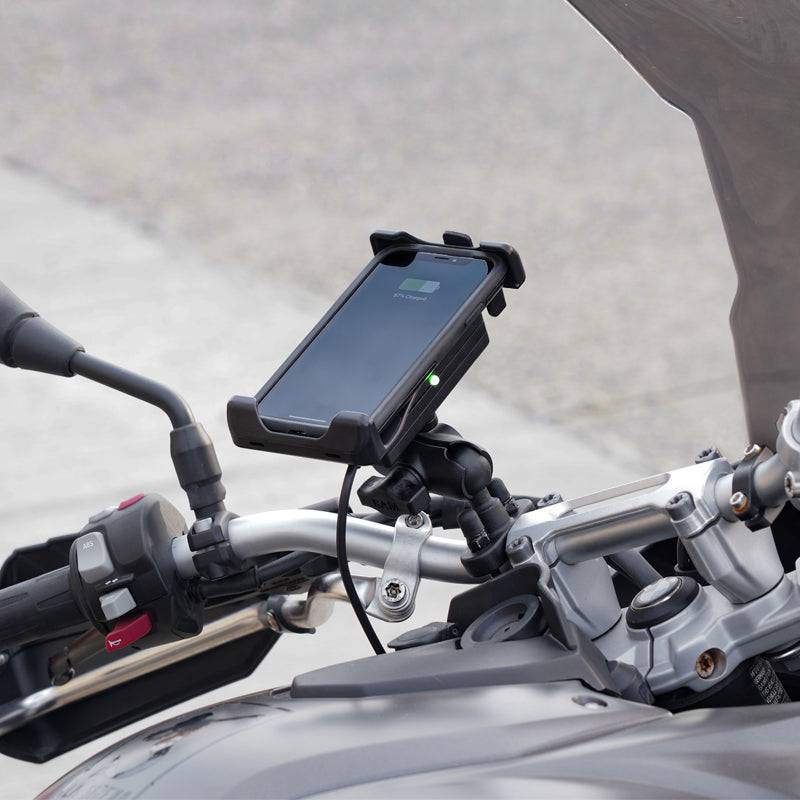

The RAM® Quick-Grip™ Wireless is a patented, universal waterproof wireless charging cradle for phones. As part of the spring-loaded RAM® Quick-Grip™ family, this cradle allows for single-handed placement and removal of your phone while taking advantage of Qi wireless phone charging. Both the top and bottom cups feature rubber to help hold your phone firmly in place. To insert your device, use your phone to push the top cup upward and then gently place your device against the cradle for a secure fit. This Qi wireless charging cradle ensures your compatible phone charges as long as it’s within the listed compatible dimensions. For added security and peace of mind, a device tether is included that’s recommended for outdoor applications. This RAM® Quick-Grip™ Wireless handlebar kit includes a B size diamond base featuring a 1” rubber ball, short length double socket arm, and zinc-coated U-bolt base. U-bolt hardware accommodates rails from .5" to 1.25" in diameter. The connected Type-A male pigtail connector features an in-line switch that allows you to turn off the wireless charging module when not in use. For in-vehicle charging, attach the pigtail to the included 1.2m Type-A male to Type-A female extension cable. This kit includes a hardwire charger. Waterproof Qi wireless phone charging cradle features spring-loaded RAM Quick-Grip design and 10W maximum output Kit includes wireless charging cradle, B size diamond ball base, short double socket arm, U-bolt handlebar base, and hardwire charger Made of powder-coated, marine-grade aluminum, stainless steel components, and high-strength composite for durability and reliability in the most demanding environments RAM Mounts backed by lifetime warranty, RAM electronics backed by 1-year warranty HARDWARE INCLUDED (1) Safety Tether HOLDER DIMENSIONS Height Range: 5.625" - 6.625" CLAMP RANGE .5" - 1.25" diameter SOCKET-TO-SOCKET LENGTH 1.75" BALL/SOCKET SIZE B Size (1") WEIGHT CAPACITY 2 lbs MATERIALS Marine-grade aluminum PACKAGING TYPE Retail Box POWER SPECIFICATIONS Input Power:5V-2A; 9V-1.67A OUTPUT CONNECTOR TYPE USB Type-A Male INPUT CABLE LENGTH 20" with optional 1.2M extension cable COMPLIANCE Over current protection, short circuit protection and over temperature protection CERTIFICATIONS FCC, IC, CE, e-Mark, WEEE, RCM, and RoHS Compliant WARRANTY STATUS 1 year warranty ADDITIONAL INFORMATION This holder will not charge phones that do not have built-in wireless charging capabilities, such as the Apple iPhone 7 or Samsung Galaxy S5.
Description Specs & Features

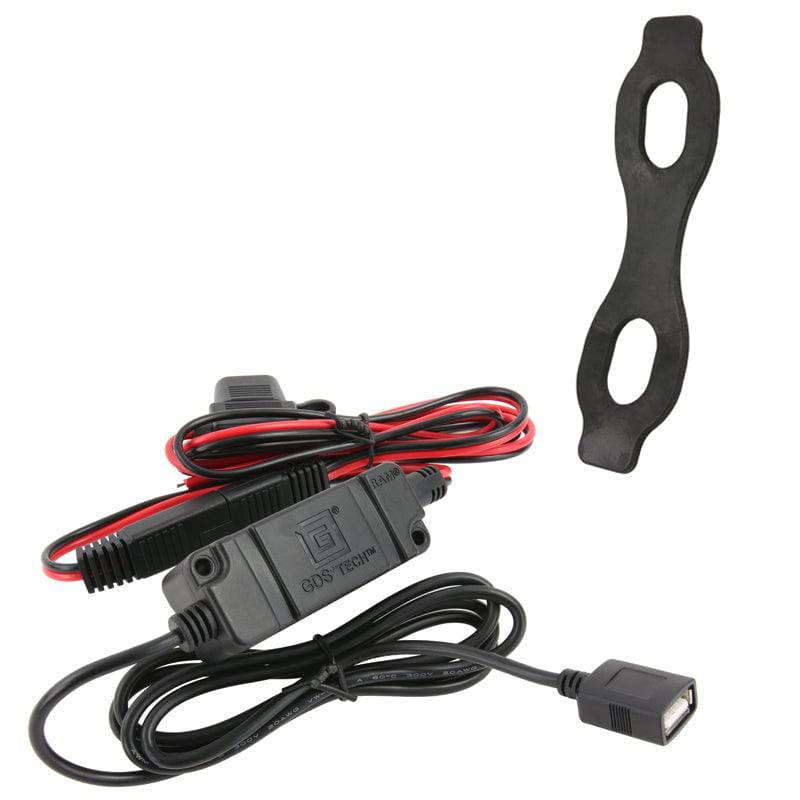

(1) Silicon sleeve for USB waterproof connection
(1) 1.2 Meter USB Extension Cable
(4) Small zip ties
(4) Large zip ties
(1) 1/4"-20 U-Bolt for .5" - 1" Rails
(1) 1/4"-20 U-Bolt for 1" - 1.25" Rails
(2) 1/4"-20 Nylock Nuts
(2) Rubber Caps
(1) U-Bolt Spacer
Max Width: 3.125"
Max Depth: .7"
High strength composite
Stainless steel
Output: 5W / 7.5W / 10W
Conversion Efficiency: 85% Max
Transmitting Distance: 5-8mm
Working Frequency: 110-205KHZ
Product Standard: WPC v.1.2.4
QI Compatible
Compatible with QC2.0/QC3.0 power supplies DOCUMENT Instructions Components Compatible Devices
Apple
Blackberry
Google
Huawei
LG
Nokia
Panasonic
Razer
Samsung
Sony
Xiaomi
ZTE
Drawing File - U-Bolt Ball Base
RAM Rail Base with B Size 1" Ball. Zinc Coated U-Bolt for Rails from 0.5" to 1.25" in Diameter - RAM-B-231ZU
RAM Short Double Socket Arm for B Size 1" Balls - RAM-B-201U-A
RAM® Quick-Grip™ Waterproof Wireless Charging Holder with Charger - RAM-HOL-UN14WB-V7M
