RAM® Strap Hose Clamp Mount with 100x100mm VESA Plate - RAM-108B-246U

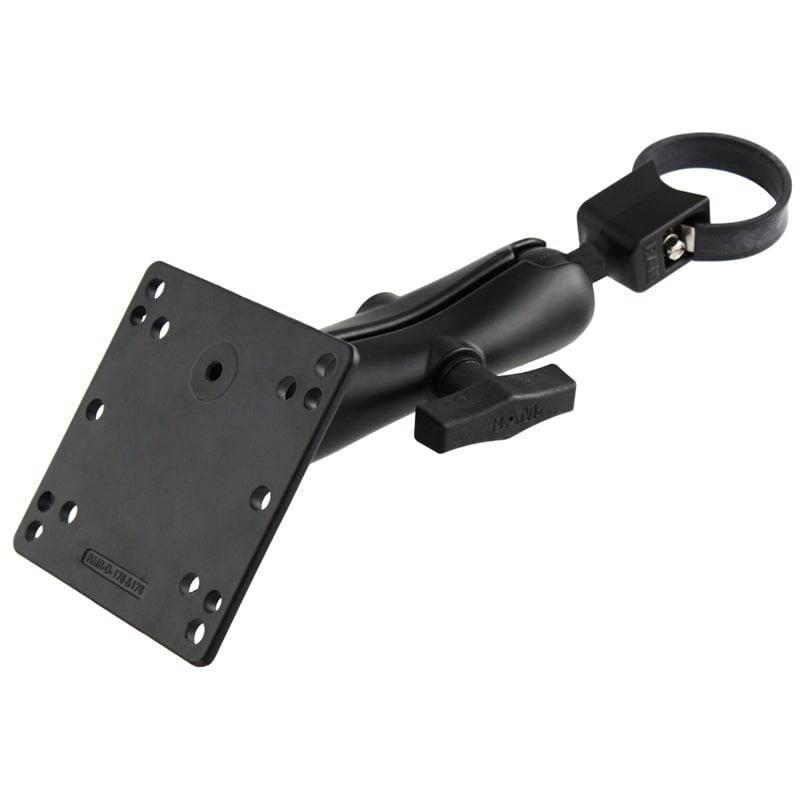

The RAM-108B-246U consists of a strap clamp 1.5" diameter ball base, standard length double socket arm and VESA (4 X 75mm) (4 X 100mm) plate. The strap will accommodate rails from 1" to 2.1" in diameter. Included is a rubber protection strip to help reduce vibration and to prevent scratching of the mounting surface. The 4.75" square plate contains 4x100mm holes and 4x75mm holes in each corner.

HARDWARE INCLUDED

(1) #20 Worm Drive Strap Clamp
(1) #28 Worm Drive Strap Clamp
(1) 6" Rubber Strip
(4) .312" x .187" Shoulder Washers

PRODUCT DIMENSIONS

Overall Height: 9"

CLAMP RANGE

1" - 2.1" diameter

SOCKET-TO-SOCKET LENGTH

4.66"

HOLE PATTERN

See Drawing

BALL/SOCKET SIZE

C Size (1.5")

WEIGHT CAPACITY

Standard Use: 4 lbs
Heavy-Duty Use: 3 lbs

MATERIALS

Marine-grade aluminum

PACKAGING TYPE

Poly Bag

WEIGHT

1.68 lbs.
