      Home / Products / RAM® Tab-Tite™ Drill-Down Mount for Large Tablets - RAM-B-138-TAB-LG

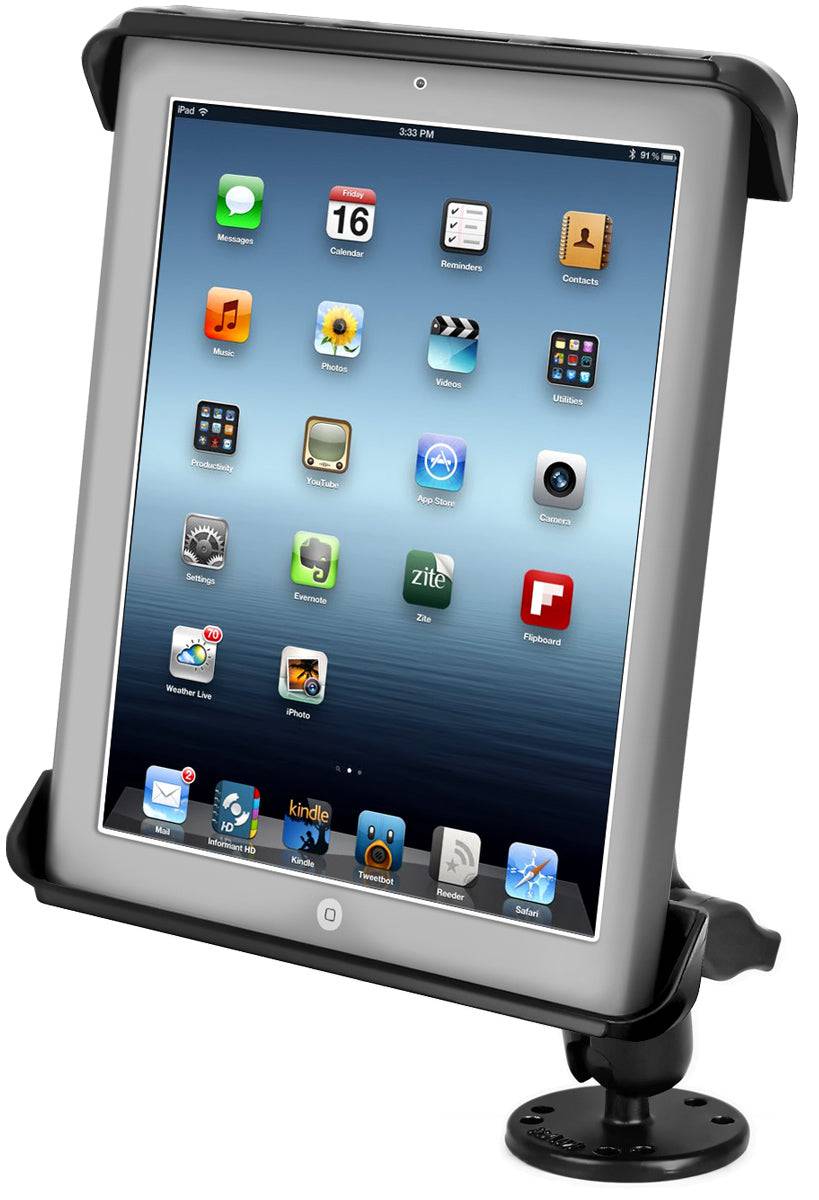

      RAM® Tab-Tite™ Drill-Down Mount for Large Tablets - RAM-B-138-TAB-LG - OC Mounts
      RAM® Tab-Tite™ Drill-Down Mount for Large Tablets - RAM-B-138-TAB-LG - OC Mounts
      RAM® Tab-Tite™ Drill-Down Mount for Large Tablets - RAM-B-138-TAB-LG - OC Mounts
      RAM® Tab-Tite™ Drill-Down Mount for Large Tablets - RAM-B-138-TAB-LG - OC Mounts

      RAM-B-138-TAB-LG

      RAM® Tab-Tite™ Drill-Down Mount for Large Tablets - RAM-B-138-TAB-LG

      Out of Stock    ( Chat Live to get an ETA )

      OVERVIEW

      Get the most out of your tablet with the RAM Tab-Tite™ universal clamping cradle. With 2 sets of interchangeable cup ends, ranging from different sizes and features, you can fit the cradle to your tablet for a near custom fit. This spring loaded design makes it easy to load and unload your tablet, along with keeping it secure while on the go. Cup ends are designed to optimize the functionality of your tablet, allowing access to audio jacks, usb, power, and other ports, your tablet can be used just as it was intended. Perfect for stationary or on the go applications, this new RAM product is just what you need to get the most out of your mobile device.

      HARDWARE INCLUDED

      Assembly Hardware

      HOLDER DIMENSIONS

      Height Range: 8.5" - 11.75"
      Width Range: 7.75" - 8.25"
      Depth Range: .56" - 1.1"

      SOCKET-TO-SOCKET LENGTH

      3"

      HOLE PATTERN

      4-Hole AMPS: 1.181" x 1.496"
      3-Hole 120-Degree: 1.812" Diameter

      PLATE SIZE

      2.5" Diameter

      BALL/SOCKET SIZE

      B Size (1")

      WEIGHT CAPACITY

      Standard Use: 2 lbs
      Heavy-Duty Use: 1 lb

      MATERIALS

      Marine-grade aluminum
      High strength composite

      PACKAGING TYPE

      Retail Bag

      WEIGHT

      1.4 lbs.

      RAM Tab-Tite™ Cradle For 10" Screen Tablets Including The Apple IPad 1-4 With LifeProof Nüüd Cases & Lifedge Cases - RAM-HOL-TAB-LGU

      RAM 1" Ball Mount with 2/2.5" Round Bases that contain the AMPs hole pattern RAM-B-101U

      10" Tablets with LifeProof nd cases

      10" Tablets with Lifedge cases

      10" Tablets with Heavy duty cases

      Apple

      iPad 4 (With Lightning Connector)

      iPad 3

      iPad 2

      iPad 1

      iPad Air 2

      iPad Air

       RAM® Tab-Tite™ Assembly Guide - PDF

      RAM® Tab-Tite™ Rugged Tablet Holder - Installation Guide
