RAM-B-166-TAB-LGU

RAM® Tab-Tite™ with RAM® Twist-Lock™ Suction Cup for Large Tablets - RAM-B-166-TAB-LGU

OVERVIEW

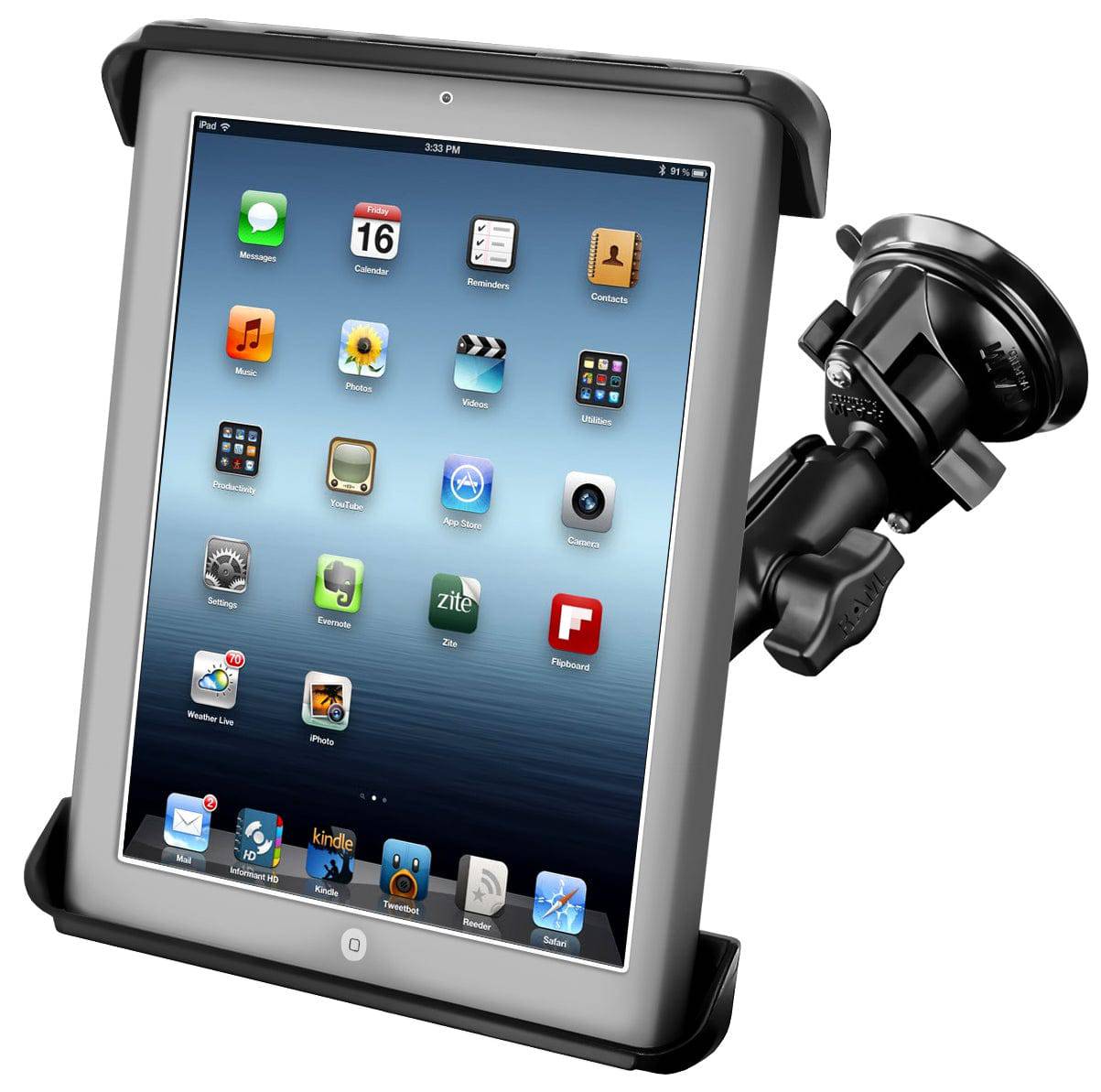

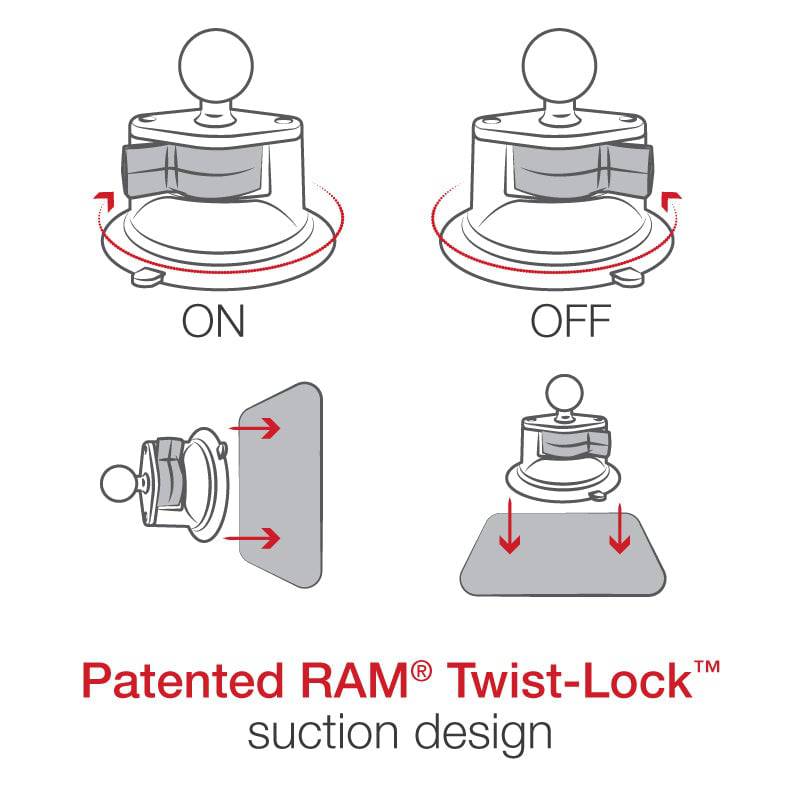

The RAM-B-166-TAB-LGU consists of a 3.3" suction cup twist lock base, double socket arm, diamond adapter base, Tab-Tite cradle and 2 sets of cup ends to accommodate for tablets of various sizes. The suction cup, twist lock base is designed to have a strong hold on glass and non-porous plastic surfaces, including RAM adhesive disks. The mount is designed with a RAM 1" diameter patented rubber ball and socket system that has adjustment points at both ends of the double socket arm; this allowing for almost infinite adjustment and perfect viewing angles. The spring loaded, quick release Tab-Tite cradle makes it easy to load and unload your tablet, along with keeping it secure while on the go. Cup ends are designed to optimize the functionality of your tablet, allowing access to audio jacks, usb, power, and other ports, your tablet can be used just as it was intended.

HARDWARE INCLUDED

Assembly Hardware


HOLDER DIMENSIONS

Height Range: 8.5" - 11.75"
Width Range: 7.75" - 8.25"
Depth Range: .56" - 1.1"


SUCTION SIZE

3.3" Diameter


SOCKET-TO-SOCKET LENGTH

3"


BALL/SOCKET SIZE

B Size (1")


WEIGHT CAPACITY

Standard Use: 2 lbs
Heavy-Duty Use: 1 lb


MATERIALS

Marine-grade aluminum
High strength composite


PACKAGING TYPE

Poly Bag


WEIGHT

0.69 lbs.
