RAM-VP-SW1-47

RAM® Tele-Pole™ with 4" & 7" Poles, Double Swing Arms & Round Plate - RAM-VP-SW1-47

OVERVIEW

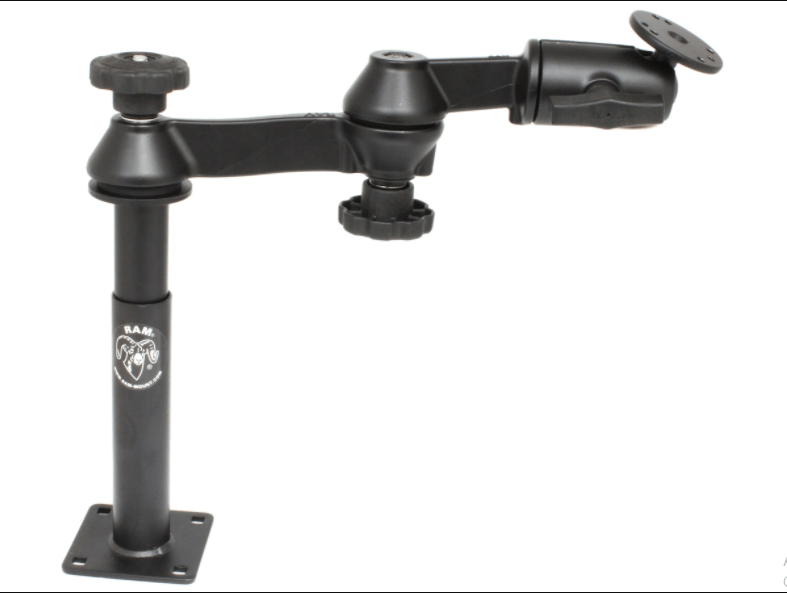

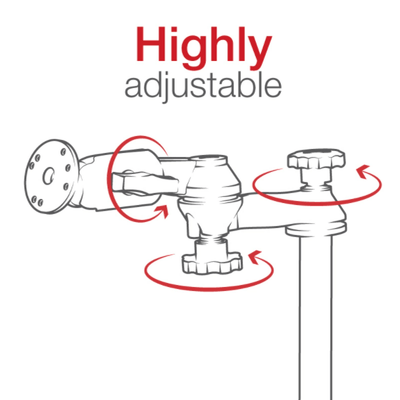

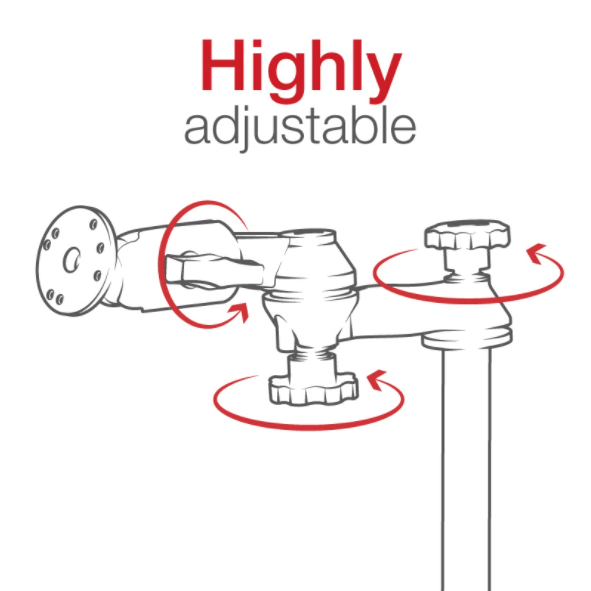

The RAM-VP-SW1-47 consists of a 7" lower female Tele-Pole, 4" upper male Tele-Pole, double swing arm and 2.5" round base that contains the universal AMPs hole pattern. The lower female Tele-Pole will attach to all RAM vehicles bases that do not contain a welded female Tele-Pole. The height of the Tele-Poles, combinded, can easily be adjusted by turning the knob at the top of the post. Once the knob has been tightened, the Tele-Pole becomes a rigid support for connecting devices or cradles. The double swing arm allows you to twist and tilt the viewing angle of your connected electronic device, when mounted on your RAM Vehicle Mount. The rotating swivel arm gives you even more viewing positions for your mounted electronic device while holding everything firmly in place. The length of the double swing arm is 12".

HARDWARE INCLUDED

Assembly Hardware
(4) 5/16"-18 x 1" Carriage Bolts
(4) 5/16"-18 Hex Nuts
(4) 5/16" Flat Washers
(4) 5/16" Split Lock Washers
(4) Rubber Caps


PRODUCT DIMENSIONS

Minimum Height: 12.3"
Maximum Height: 15.3"


HOLE PATTERN

Tele-Pole: 2.625" x 2.625"
Round Plate: 4-Hole AMPS: 1.181" x 1.496" & 3-Hole 120-Degree: 1.812" Diameter


PLATE SIZE

Round Plate: 2.5" Diameter
Lower Pole: 3.5" x 3.5"


BALL/SOCKET SIZE

C Size (1.5")


MATERIALS

Powder coated steel
Marine-grade aluminum


PACKAGING TYPE

Box


WEIGHT

6.5 lbs.
