icon

RAM-101B-TC-SAM29F-V7B1U

RAM® Tough-Case™ with Fan Bundle for Samsung Tab Active3 and Tab Active2 - RAM-101B-TC-SAM29F-V7B1U

  • RAM® Tough-Case™ holder provides charging capabilities for the Samsung Galaxy Tab Active3 and Tab Active2 in a RAM® Tough-Case™
  • Includes RAM® C size double mount, backing plate and hardwire charger for dashboard installation
  • Tethered connection of tablet to vehicle with coiled cable and durable oversized strain relief

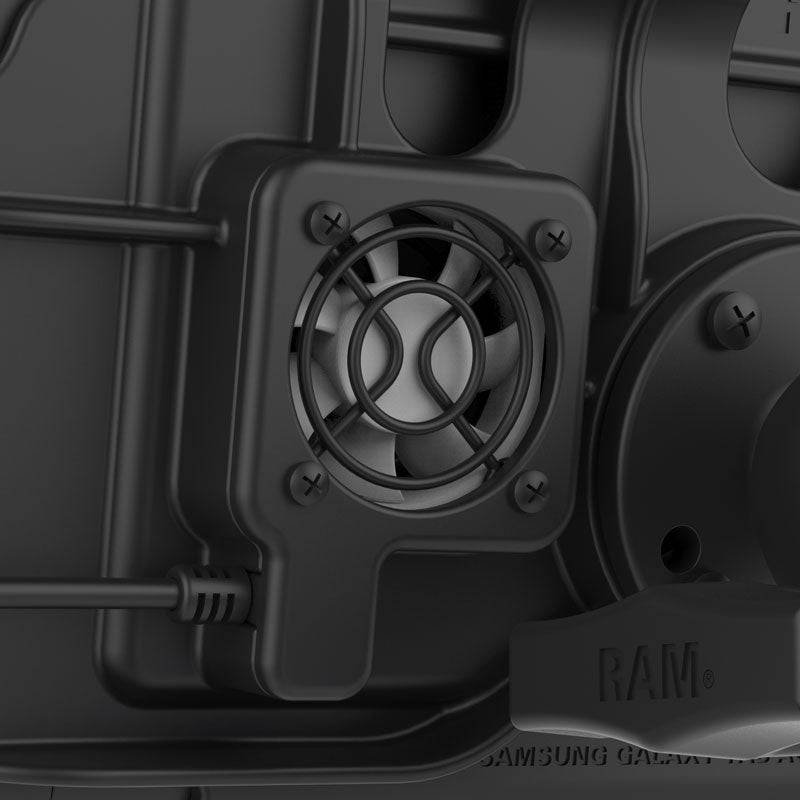

  • Built-in fan for optimized cooling of tablet
  • Integrated S Pen holder

OVERVIEW

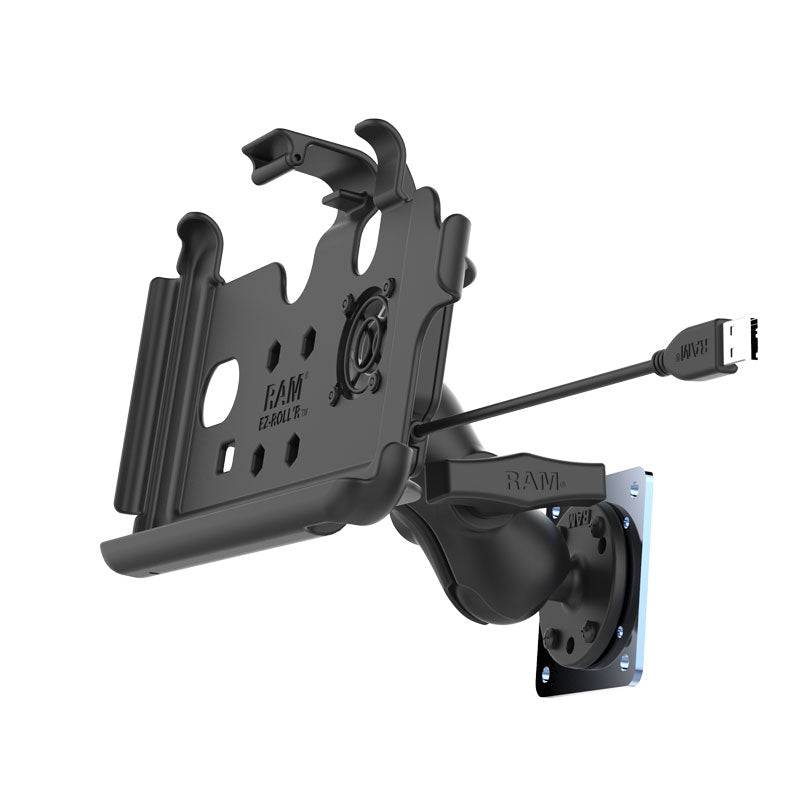

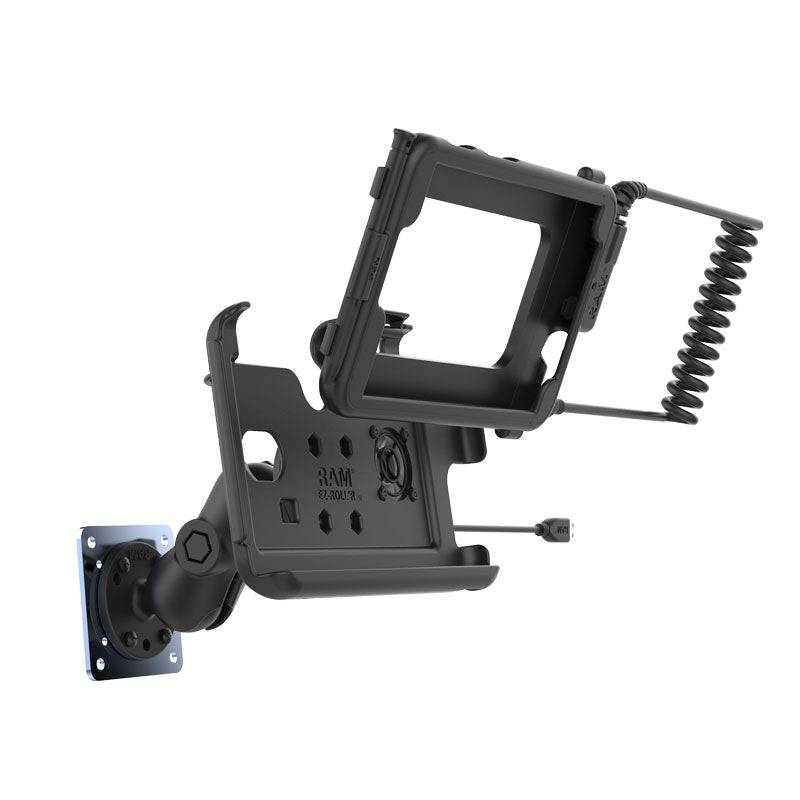

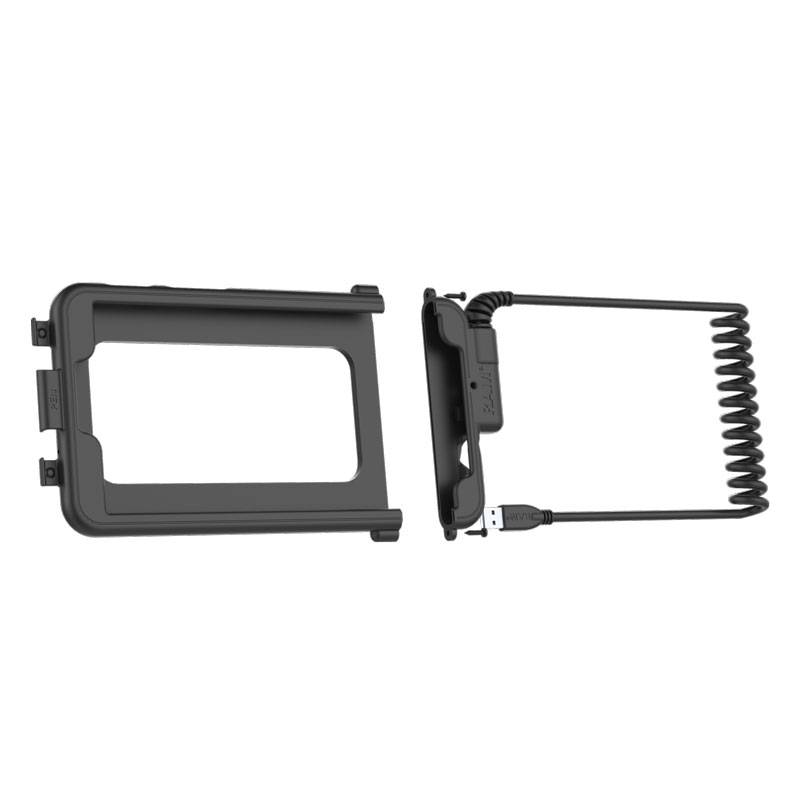

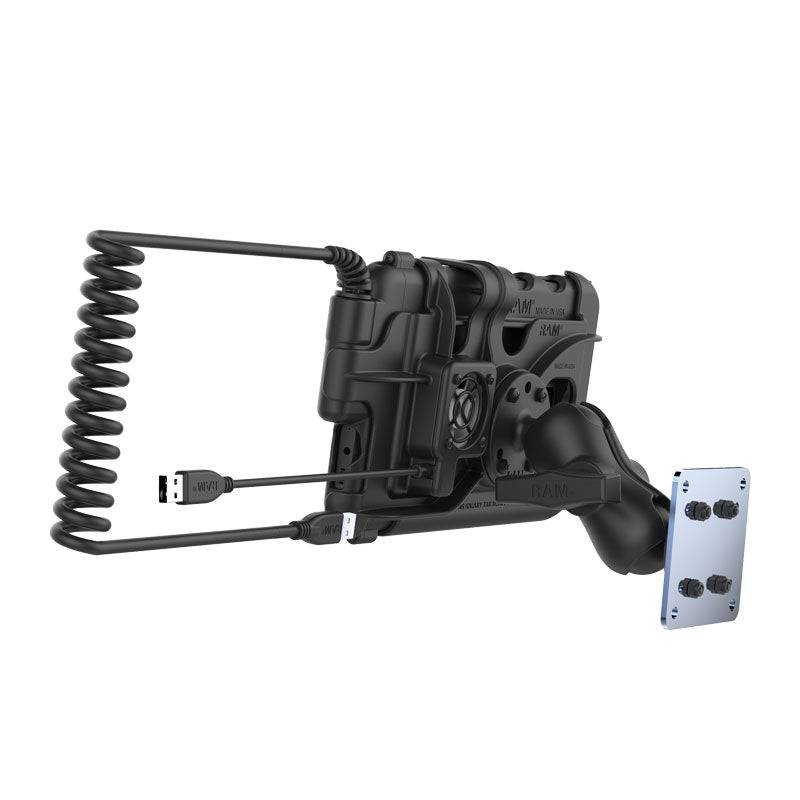

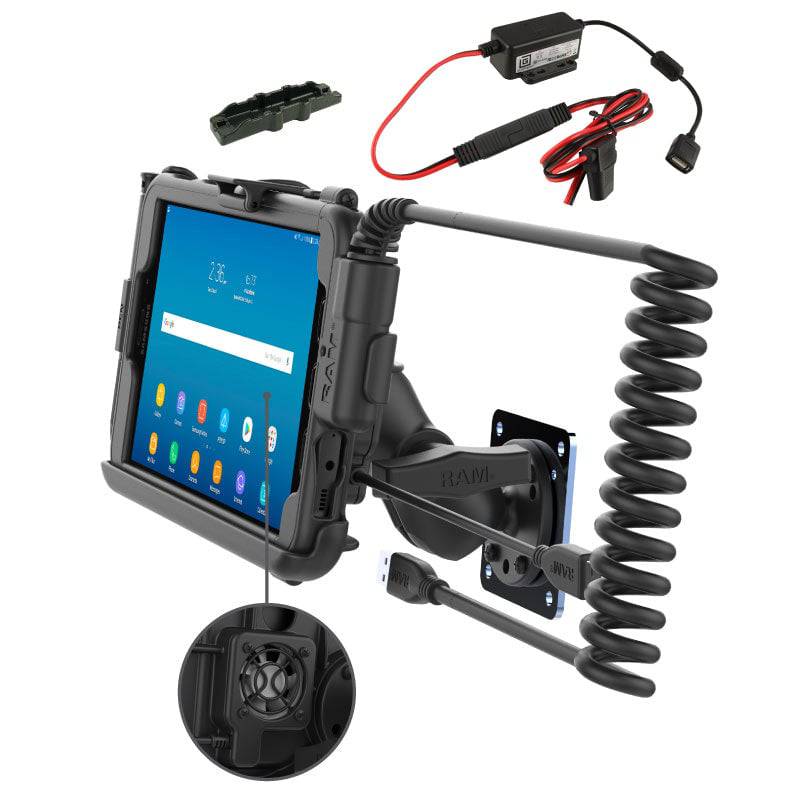

The RAM® Tough-Case bundle is a rugged mount including the RAM® Tough-Case, Tough-Case holder with built-in fan, C size double ball mount, backing plate and hardwire charger. The RAM® Tough-Case bundle is a two-piece enclosure for the Samsung Galaxy Tab Active3 and Tab Active2 that tethers the device inside of any vehicle with the help of the double ball mount and backing plate, meeting the demands of the transportation industry with ELD compliance. This ultra-low cost bundle provides power to the device through an internal USB Type-C charging connector to the device. The back of the tablet remains well exposed to allow heat to flow from the device to help maintain temperature levels. Unique features include access to the NFC reader while in the cradle for scanning NFC tags as well as the stylus. This complete mounting kit includes a 3” x 3” steel backing plate with #10-24 threaded holes, two 2.5” round ball plates, medium length double socket arm, and a GDS® modular hardwire charger – an ideal solution for providing power to the Galaxy Tab Active3 and Tab Active2. Get the Heat Out! with RAM® Tough-Case.

HARDWARE INCLUDED

Assembly Hardware
(1) 3" x 3" Steel Backing Plate
(4) #10-24 x 1" Thread Locking Screws
(4) #10-24 Nylock Nuts
Modular Hardwire Charger


SOCKET-TO-SOCKET LENGTH

2.5"


HOLE PATTERN

4-Hole AMPS: 1.181" x 1.496"
3-Hole 120-Degree: 1.812" Diameter


BALL/SOCKET SIZE

C Size (1.5")


WEIGHT CAPACITY

Standard Use: 4 lbs
Heavy-Duty Use: 3 lbs


MATERIALS

Marine-grade aluminum
High strength composite

PACKAGING TYPE

Poly Bag


INPUT VOLTAGE

10V - 30V DC


OUTPUT VOLTAGE

5-9VDC


OUTPUT CURRENT

2.5A max


INPUT CONNECTOR

Charger: Female USB Type A


INPUT CABLE LENGTH

1.2 Meters including 2 Pole Flat Marine Connector


OUTPUT CABLE LENGTH

.2 Meters


OPERATING TEMPERATURE

-10°C to +70°C


STORAGE TEMPERATURE

-40°C to +70°C

COMPLIANCE

Over Voltage Protection
Short Circuit Protection
Reverse Polarity Protection
RoHS Compliance
WEEE Compliance
SAE J-1113-5 Load Dump (Transient Voltage)
Moisture Resistant


CERTIFICATIONS

CE Certification
e-Mark Certification
RCM Certification
FCC Certification


WEIGHT

2.85 lbs.

WARRANTY STATUS

3 year warranty

Samsung

Tab Active2

Tab Active3
