RAM® X-Grip® with RAM® Twist-Lock™ Dual Suction for 7"-8" Tablets - RAM-B-189-UN8-ALA1-KRU

OVERVIEW

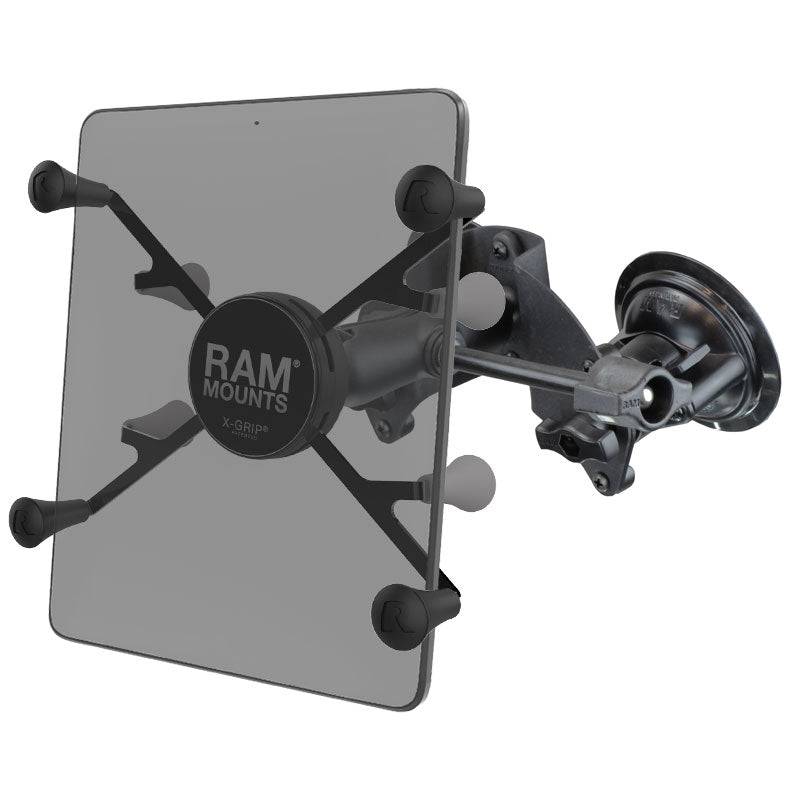

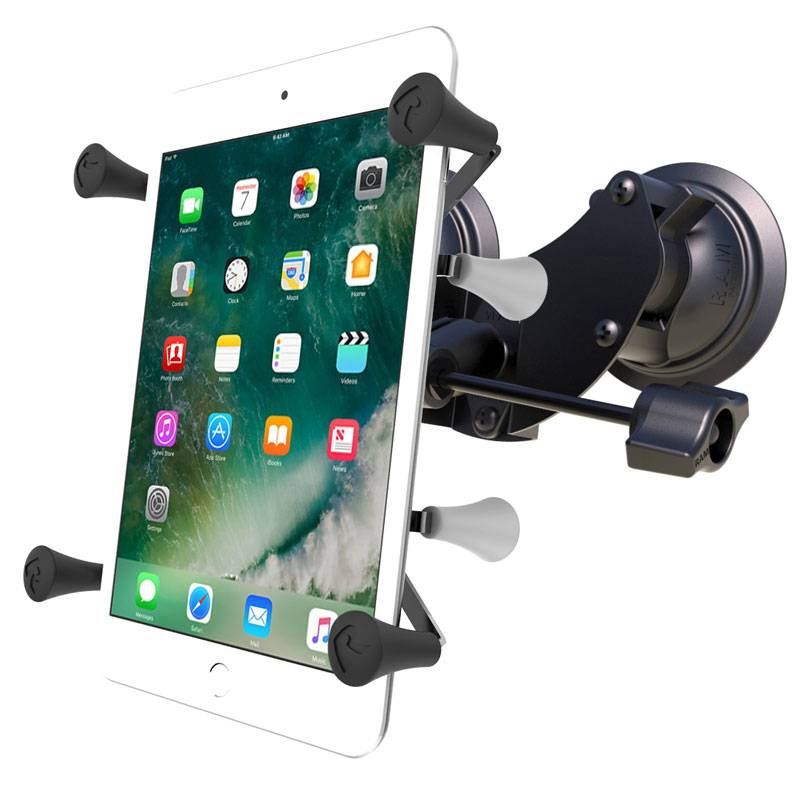

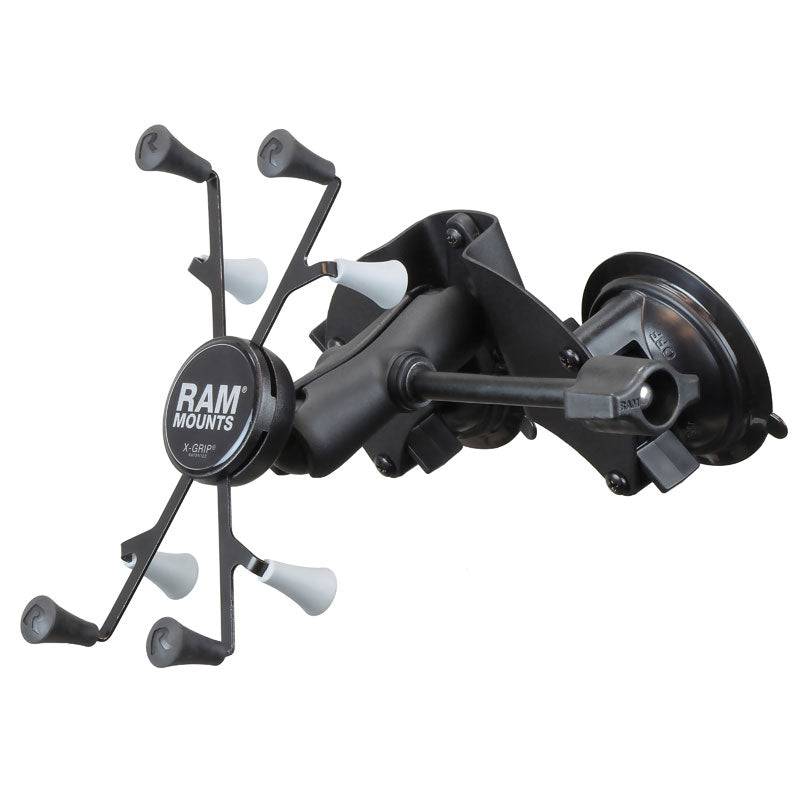

The RAM-B-189-UN8-ALA1-KRU consists of a double 3.3" twist lock suction cup base, STANDARD length double socket arm, easy access retention knob and universal spring loaded X-Grip^® cradle for 7"-8" tablets. The suction cup, twist lock base is designed to have a strong hold on glass and non-porous plastic surfaces. Included are extra easy access grip knobs, located on the back of the cradle for quick release of your tablet. The RAM-B-189-UN8-ALA1-KRU expands and contracts for perfect fit of most 7"-8" tablets with or without sleeves, as well as some smaller tablets. Please verify dimensions of your tablet below for compatibility with the X-Grip^®. The X-Grip^® includes a device tether recommended for outdoor applications. The cradle is compatible with handheld devices that will fit the dimensions listed below. It is important to verify the dimensions of your handheld device with a case/sleeve/skin when determining the overall size.

HARDWARE INCLUDED

Assembly Hardware
(1) Optional Tether
(1) Glue Tube for Rubber Caps

HOLDER DIMENSIONS

Width Range: 2.5" - 5.75"
Depth Range: .875" max

SUCTION SIZE

(2) 3.3" Diameter Bases, Total Width 7.95"

SOCKET-TO-SOCKET LENGTH

3"

BALL/SOCKET SIZE

B Size (1")

WEIGHT CAPACITY

Standard Use: 2 lbs
Heavy-Duty Use: 1 lb

MATERIALS

Powder coated steel
Marine-grade aluminum
High strength composite

PACKAGING TYPE

Poly Bag

WEIGHT

1.57 lbs.

RAM® X-Grip® Universal Holder For 7"- 8" Tablets - Includes Ball - RAM-HOL-UN8BU

RAM Dual Suction Cup Base With Medium Length Arm And Retention Knob - RAM-B-189B-201-ALA1-KRU

7"-8" Tablets

Amazon

Fire 7

Fire HD 8

Kindle

Kindle Oasis

Kindle Paperwhite

Kindle Voyage

Apple

iPad mini (1^st Gen)

iPad mini 2

iPad mini 3

iPad mini 4

iPad mini 5

iPad mini 6

Asus

MeMO Pad 8

Vivo Tab 8

ZenPad 8.0

ZenPad C 7.0

ZenPad S 8.0

ZenPad Z8

ZedPad Z8s

Dell

Venue 7

Venue 7 (2014)

Venue 7 3741

Venue 8

Venue 8 Pro 5855

HP

Pro Tablet 408

Slate 7

Huawei

MediaPad M3

MediaPad M3 Lite

MediaPad T1 7.0

MediaPad T1 8.0

MediaPad T3 7

MediaPad T3 8

Lenovo

Ideapad Miix 300

Idea Tab A1000

Idea Tab A2107

Idea Tab A3000

Tab 2 A7-10

Tab 2 A7-20

Tab 2 A7-30

Tab 2 A8

Tab 4 8

Tab 4 8 Plus

Tab 7 Essential

Tab A7-30

Tab A7-40

Tab A7-50

Tab A8-50

Tab M8 HD

Tab S8

Tab3 7

Tab3 8

Yoga Tablet 8

LG
G Pad 7.0

G Pad F 8.0 (2^nd Gen)

G Pad F2 8.0

G Pad II 8.0

G Pad X 8.0

G Pad X II 8.0

Nvidia

 Shield Table

Rand

McNally OverDryve 7

McNally OverDryve 7 Pro

McNally OverDryve 7 RV

McNally OverDryve 7c

McNally OverDryve 8 Pro

McNally Road Explorer 7

McNally Road Explorer 70

McNally RV Tablet 70

McNally RVND 7

McNally TND 740

McNally TND Tablet 70

McNally TND Tablet 80

Samsung

Galaxy Tab 2 7.0

Galaxy Tab 3 7.0

Galaxy Tab 3 8.0

Galaxy Tab 3 Lite 7.0

Galaxy Tab 4 7.0

Galaxy Tab 4 8.0

Galaxy Tab 7.7

Galaxy Tab A 7.0

Galaxy Tab A 8.0

Galaxy Tab A 8.0 (2017)

Galaxy Tab A 8.0 (2018)

Galaxy Tab A 8.0 (2019)

Galaxy Tab A 8.4

Galaxy Tab A7 Lite 8.7

Galaxy Tab A 8.4

Galaxy Tab A7 Lite 8.7

Galaxy Tab Active2

Galaxy Tab E 7.0

Galaxy Tab E 8.0

Galaxy Tab Pro 8.4

Galaxy Tab S 8.4

Galaxy Tab S2 8.0

Vankyo

Matrix Z1 7”
