RAM® X-Grip® with RAM® Twist-Lock™ Dual Suction for 9"-10" Tablets - RAM-B-189-UN9-FRO1-KRU

OVERVIEW

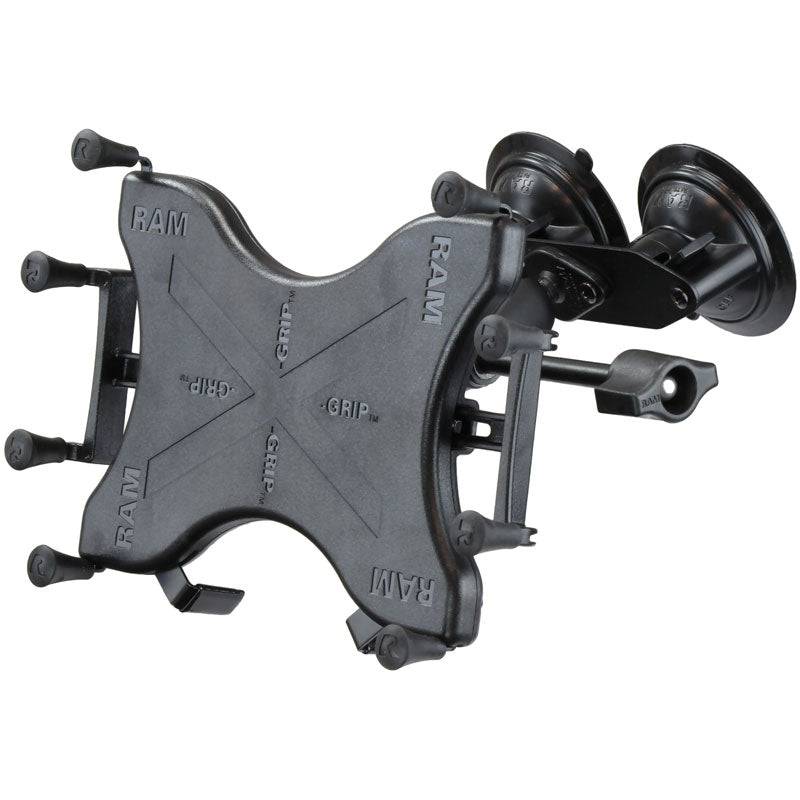

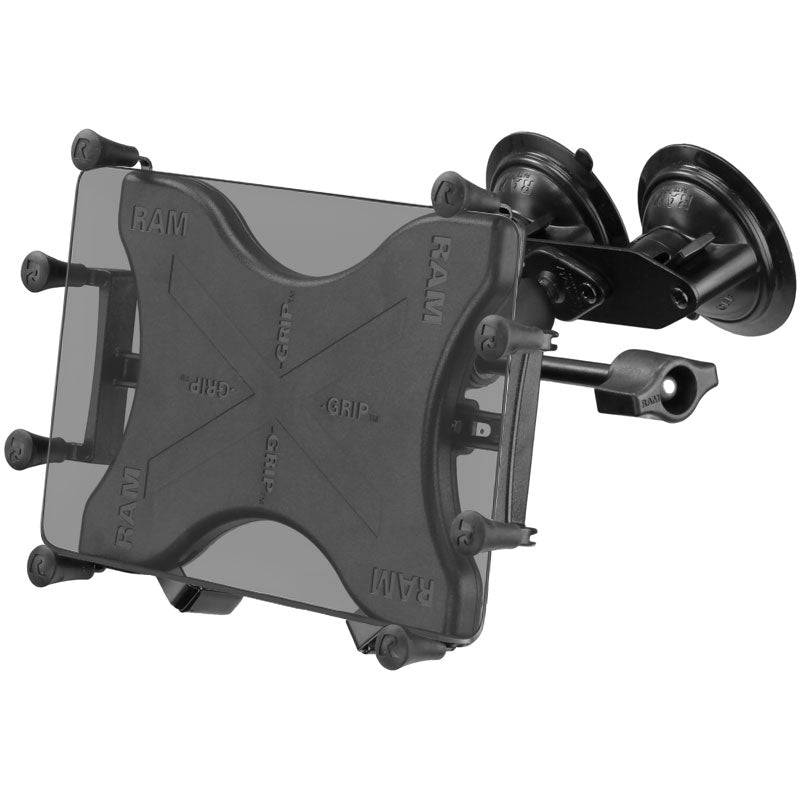

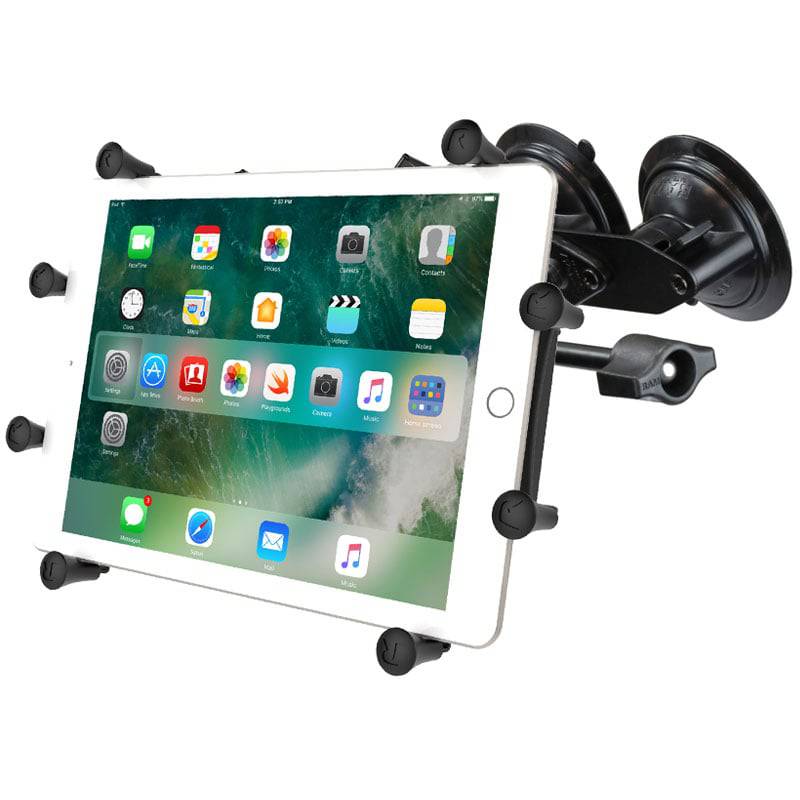

The RAM-B-189-UN9-FRO1-KRU consists of a double 3.3" twist lock suction cup base, double socket arm, extended retention knob and universal X-Grip^® cradle for 10" Tablets. Included are extra easy access grip knobs, located on the back of the cradle for quick release of your tablet. The RAM-B-189-UN9-FRO1-KRU expands and contracts for perfect fit of most 10" tablets with or without sleeves, as well as some smaller tablets. Please verify dimensions of your tablet below for compatibility with the X-Grip^®. The X-Grip^® cradle is compatible with handheld devices that will fit the dimensions listed below. It is important to verify the dimensions of your handheld device with a case/sleeve/skin when determining the overall size.

HARDWARE INCLUDED

Assembly Hardware

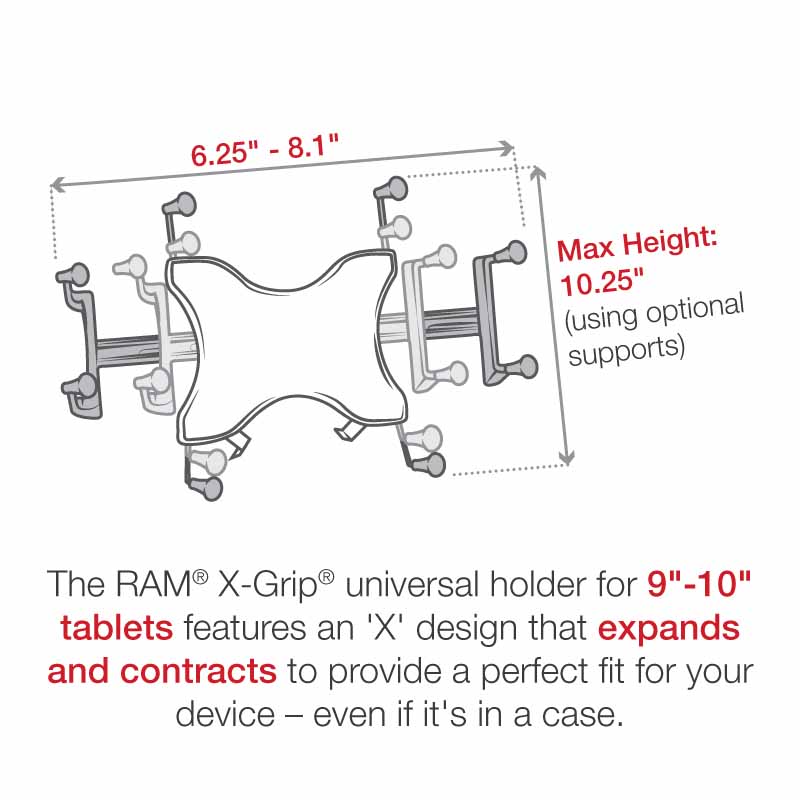

HOLDER DIMENSIONS

Max Height: 10.25" (using optional supports)
Width Range: 6.25" - 8.1"
Max Depth: .875"

SUCTION SIZE

(2) 3.3" Diameter Bases, Total Width 7.15"

SOCKET-TO-SOCKET LENGTH

3"

BALL/SOCKET SIZE

B Size (1")

WEIGHT CAPACITY

Standard Use: 2 lbs
Heavy-Duty Use: 1 lb

MATERIALS

Powder coated steel
Marine-grade aluminum
High strength composite

PACKAGING TYPE

Poly Bag

WEIGHT

2.24 lbs.

RAM® X-Grip® Cradle with Round Base Adapter for 10" Large Tablets - RAM-B-202-UN9U

RAM Double Socket Arm With Retention Knob For B Size 1" Balls - RAM-B-201-ALA1-KRU

RAM Diamond Plate 2.43" X 1.31" With B Size 1" Ball - RAM-B-238U

RAM® Twist-Lock™ Dual Suction Cup Base with Straight Plate - RAM-B-189B-FRO1U

9"-10" Tablets
