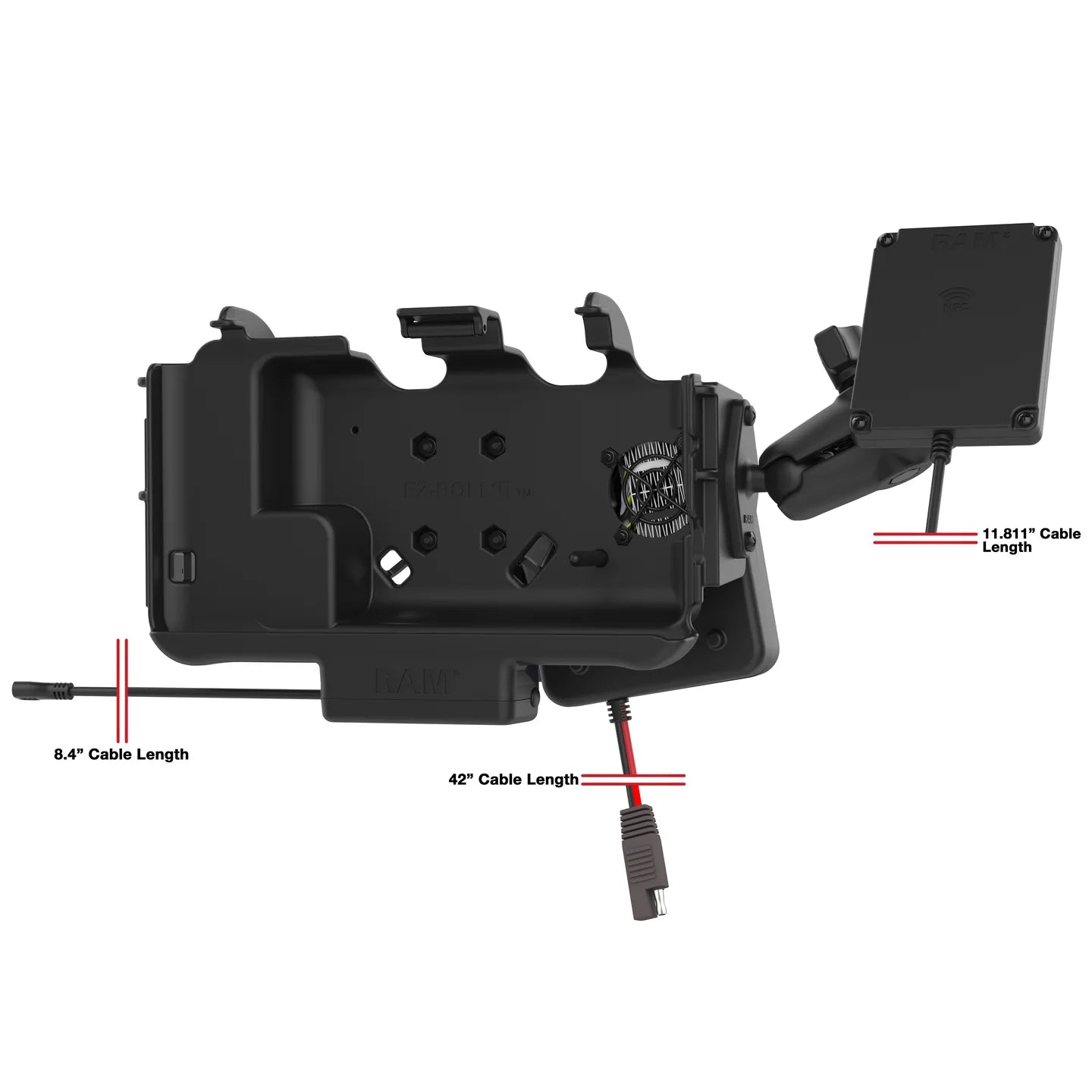

RAM® Vehicle Mount for Tab Active3 with Temp-Right™ & NFC Repeater - RAM-101-B-SAM60PH-V7B1-NFCU

This powered vehicle mount bundle (RAM-101-B-SAM60PH-V7B1-NFCU) for the Samsung Tab Active3 and Tab Active2 comes with a RAM® Temp-Right™ Heater Module, NFC repeater, C size dashboard mount with 2.10" x 2.60" backing plate, and 10-30V hardwire charger. This powered vehicle mount bundle is a turnkey ELD compliant vehicle docking solution for commercial truck drivers, field service technicians, pupil transporters, and more. The Temp-Right™ Heater Module attachment contains its own 11-16VDC hardwire charger for power, a thermistor, and safety plunger to prevent overheating the tablet or activating the heater when the device is undocked. Power capabilities through the dock are provided to the device through pogo pin technology, taking advantage of the Tab Active3's pogo pad docking contacts—simply dock the device and the pogo pins match the pattern of the pogo pads for a seamless charging experience. This dock is also compatible with the RAM® Skin™ or factory device skin, as well as GDS® Hand-Stand™ and shoulder strap accessories. Access to the stylus remains while the device is docked. Included is a set of four nuts and bolts to connect the dock to any RAM® components containing the universal AMPS hole pattern. Also included is the mUSB female pigtail, GDS® USB 2.0 cable, cable clamp, zip ties, and a 10-30V hardwire charger.

• Form-fit powered dock designed specifically for the Samsung Galaxy Tab Active3 & Tab Active2 providing power via mUSB cable; includes 10-30VDC hardwire charger
• Includes 2.10" x 2.60" steel backing plate with B size RAM^® double ball mount and NFC repeater
• Includes RAM^® Temp-Right^™ heater module to regulate device temperatures and maintain functionality in extreme cold environments; contains integrated 11-16VDC hardwire charger
• Heater module includes thermistor attachment and safety plunger to prevent overheating of the tablet and prevent activation of the module when tablet is undocked
• Backed by a 3-year warranty

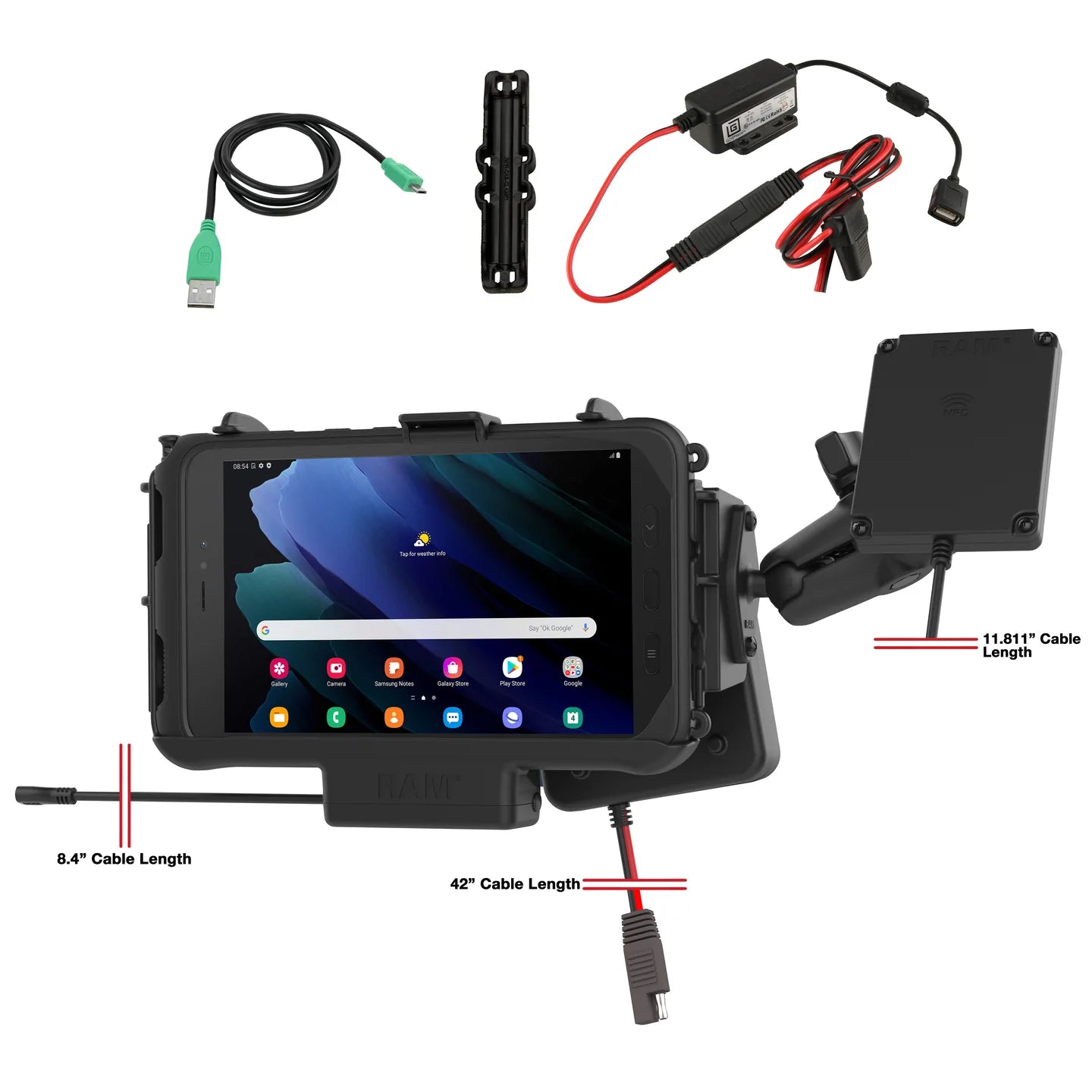

HARDWARE INCLUDED:
(1) 2.10" x 2.60" Steel Backing Plate
(4) #8-32 x 1" Screws
(4) #8 Split Lock Washers
(4) #8 Flat Washers
(1) mUSB 2.0 Cable
(1) NFC Repeater Extension Kit
(1) Hardwire Charger
(1) Cable Clamp

SOCKET TO SOCKET LENGTH:
2.5"

HOLE PATTERN:
4-Hole AMPS: 1.181" x 1.496" 3-Hole 120-Degree: 1.812" Diameter

BALL SIZE:
C Size (1.5")

WEIGHT CAPACITY:
Standard Use: 4 lbs Heavy-Duty Use: 3 lbs

MATERIALS:
Steel Marine-grade aluminum High strength composite

PACKAGING TYPE:
Poly Bag

POWER SPECIFICATIONS:
RAM® Temp-Right™ Heater Module: 75W Heater Input Voltage: 11 - 16VDC Heater Output: 7A @ 12V

INPUT VOLTAGE:
Dock: 4.4VDC - 5.4VDC (USB power source dependent) Charger: 10V - 30V DC

OUTPUT VOLTAGE:
Dock: 4.4VDC - 5.4VDC (USB power source dependent) Charger: 5-9VDC*

INPUT CONNECTOR:
mUSB 2.0

INPUT CABLE LENGTH:
.21 Meter

OPERATING TEMPERATURE:
-30C° to 70C°

STORAGE TEMPERATURE:
-40C° to 85C°

COMPLIANCE:
Over Voltage Protection Short Circuit Protection Reverse Polarity Protection RoHS Compliance WEEE Compliance SAE J-1113-5 Load Dump (Transient Voltage) Moisture Resistant

CERTIFICATIONS:
CE Certification e-Mark Certification RCM Certification FCC Certification

WEIGHT:
4.0 lb

ADDITIONAL INFORMATION:
*5V output is by way of USB 2.0 BC1.2 and DCP mode. 9V output is by way of AFC and QC 2.0. Potential interference of NFC functionality may occur when positioned close to strong magnets. This product will not support the "No Battery Mode" function of the Tab Active4 Pro. To support "No Battery Mode", see RAM® Tough-Case™ options here.

• Samsung:

  Tab Active3
  Tab Active2
