RAM® Tough-Case™ Power Delivery Bundle for Samsung Tab Active5 & 3 - RAM-101B2-TC-SAM29C-V3FCU

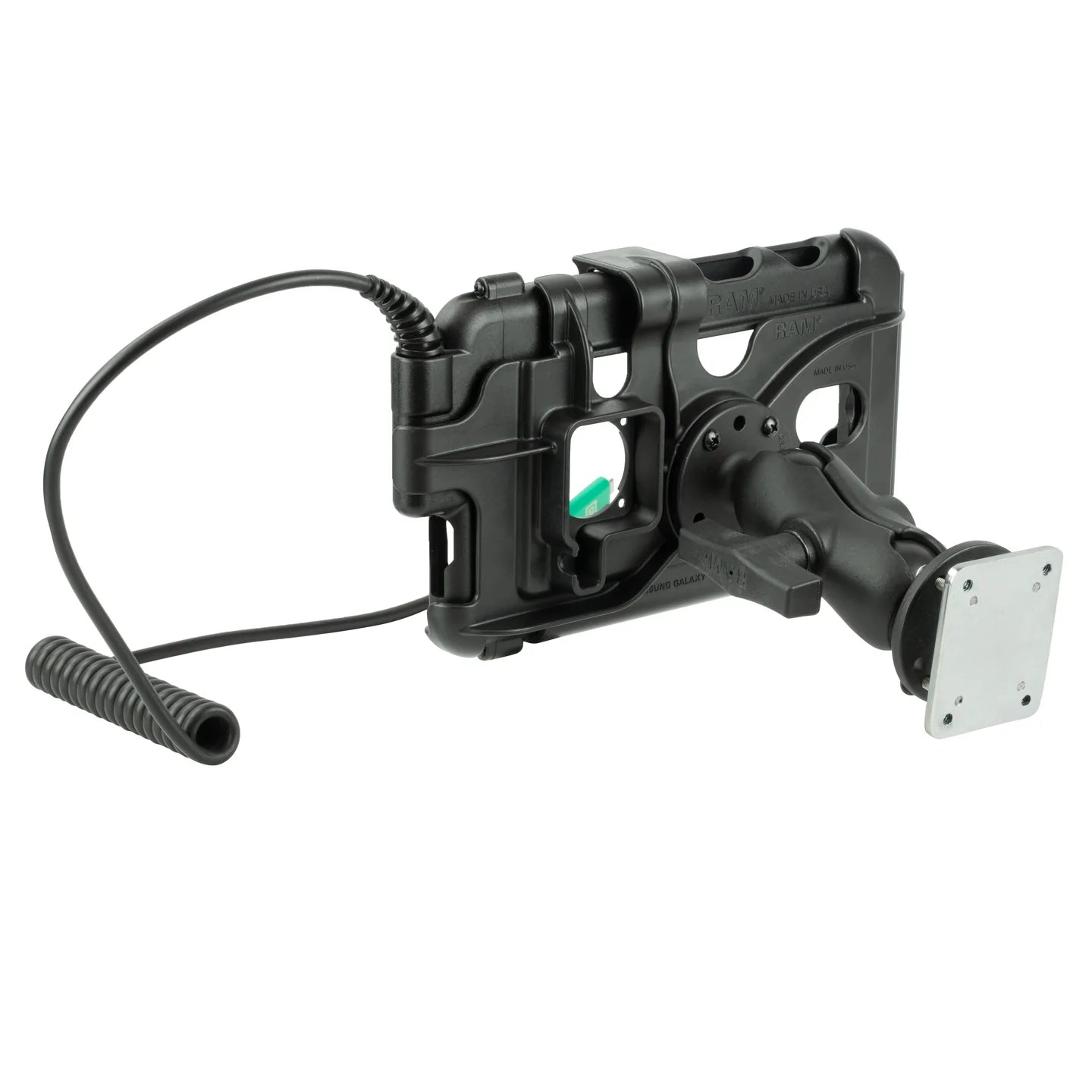

This RAM® Tough-Case™ bundle is a rugged vehicle mount including the RAM® Tough-Case™, Tough-Case™ holder, C size double ball mount, backing and hardwire charger. The RAM® Tough-Case™ is a two-piece enclosure for the Samsung Galaxy Tab Active5 & Tab Active3 that tethers the device inside of any vehicle with the help of the double ball mount and backing plate, meeting the demands of the transportation industry with ELD compliance.

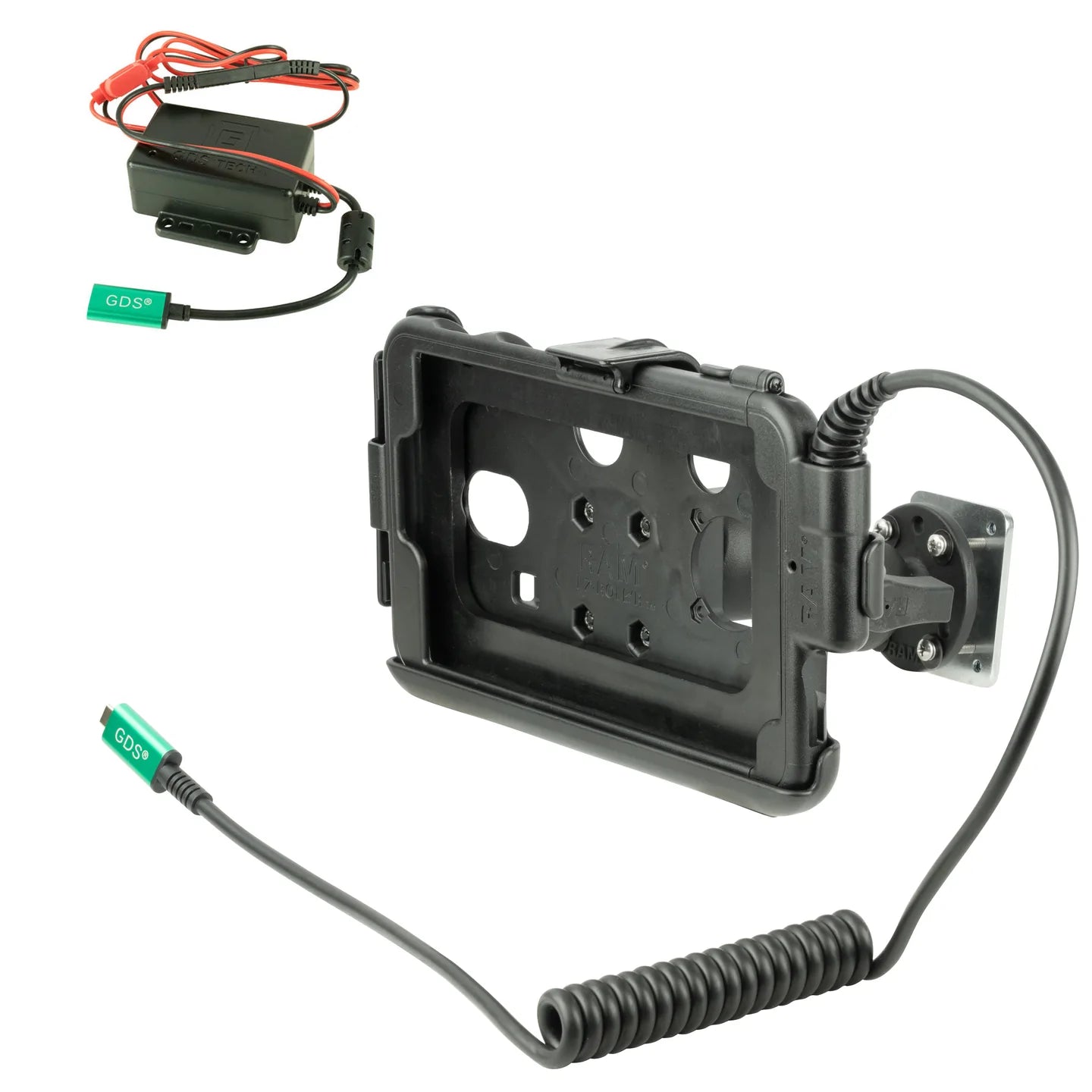

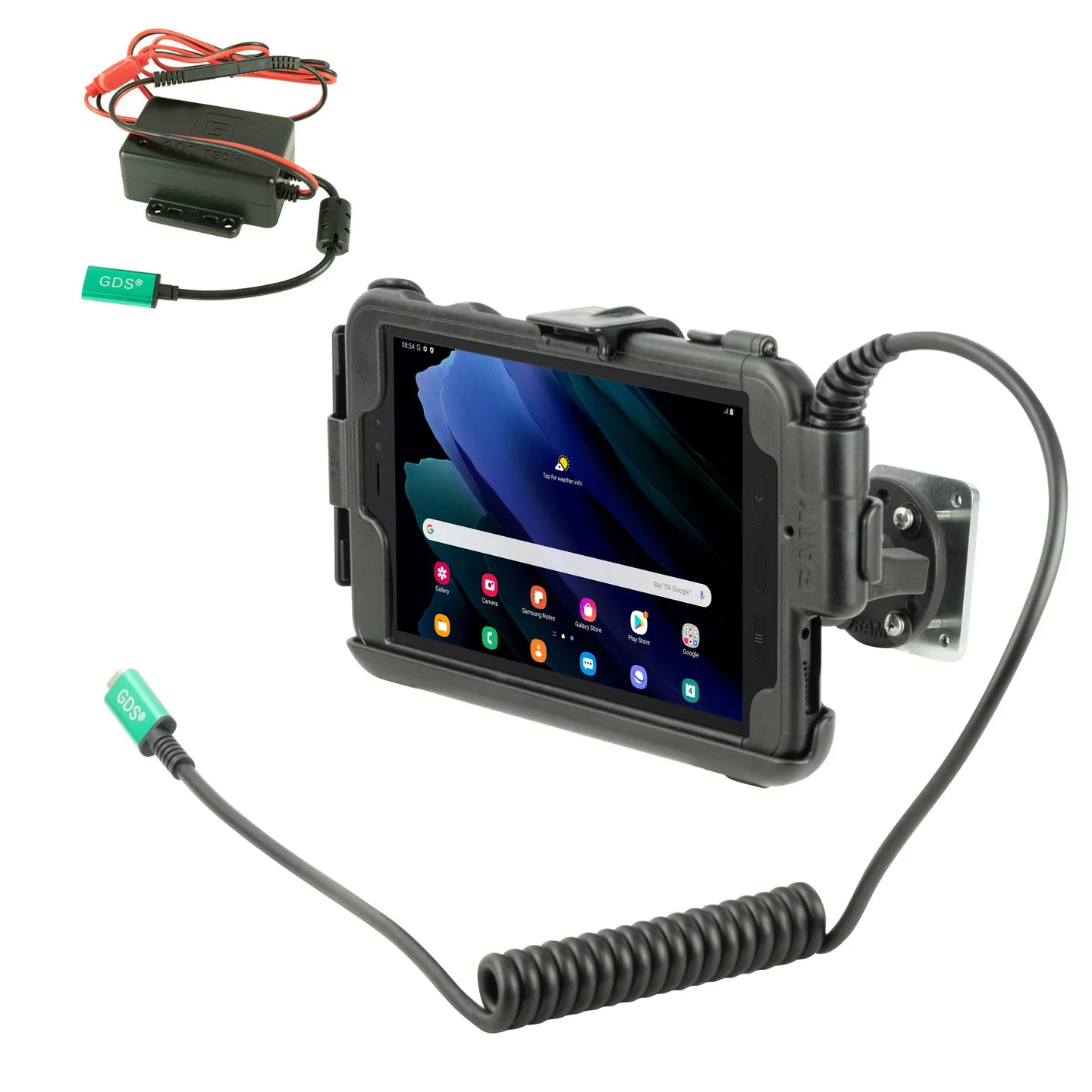

This bundle provides power to the device through the hardwire charger connected from the vehicle's battery to the RAM® Tough-Case™ via USB Type-C connection. This tethered USB Type-C connection perfectly supports the "No Battery Mode" feature, allowing you to remove the battery and remain connected to the tablet with all of its functions.

This complete mounting kit includes a 2.10" x 2.60" steel backing plate with #8-32 threaded holes, two 2.5” round ball plates, short length double socket arm, and a GDS® modular hardwire charger with Power Delivery – an ideal solution for providing power to the Galaxy Tab Active5 & Tab Active3. Get the Heat Out!™ with RAM® Tough-Case™.

• RAM^® Tough-Case^™ provides a tethered USB Type-C to USB Type-C connection providing charging capabilities for the Samsung Galaxy Tab Active5 & Tab Active3
• Includes RAM^® Tough-Case^™ holder, RAM^® C size double ball mount, backing plate and hardwire charger for dashboard installation
• Supports the Tab Active3's 'No Battery Mode' feature
• RAM^® Tough-Case^™ has integrated 7ft coiled cable and durable oversized strain relief to keep the tablet connected to the power source while undocked
• Integrated S Pen holder

HARDWARE INCLUDED:
Assembly Hardware
(1) 2.10" x 2.60" Steel Backing Plate
(4) #8-32 x 1" Screws
(4) #8 Split Lock Washers
(4) #8 Flat Washers
Modular Hardwire Charger
Cable Clamp Assembly

SOCKET TO SOCKET LENGTH:
2.5"

HOLE PATTERN:
4-Hole AMPS: 1.181" x 1.496"
3-Hole 120-Degree: 1.812" Diameter

BALL SIZE:
C Size (1.5")

WEIGHT CAPACITY:
Standard Use: 4 lbs
Heavy-Duty Use: 3 lbs

MATERIALS:
Marine-grade aluminum
High strength composite

PACKAGING TYPE:
Poly Bag

INPUT VOLTAGE:
12V - 24V (Vehicles)

OUTPUT VOLTAGE:
5V @ 3A (15W)
9V @ 3A (27W)
12V @ 3A (36W) 15V @ 2.5A (37.5W)

POWER OUTPUT:
37.5W Total

OUTPUT CURRENT:
3A max

INPUT CONNECTOR:
Female USB Type-C

INPUT CABLE LENGTH:
1.2 Meters including 2 Pole Flat Marine Connector

OUTPUT CABLE LENGTH:
150mm

OPERATING TEMPERATURE:
-20°C to +70°C

STORAGE TEMPERATURE:
-40°C to +85°C

COMPLIANCE:
Meets SAE J-1113 5a, Integrated Short Circuit Protection (SCP), Integrated Over Voltage Protection (OVP)

CERTIFICATIONS:
FCC, IC, CE RCM, WEEE, RoHS Compliant
USB Power Delivery 2.0 and 3.0 Support

WARRANTY:
3 year warranty

WEIGHT:
2.65 lb

COMPATIBLE DEVICES

• Samsung:

  Galaxy Tab Active3
  Galaxy Tab Active5
