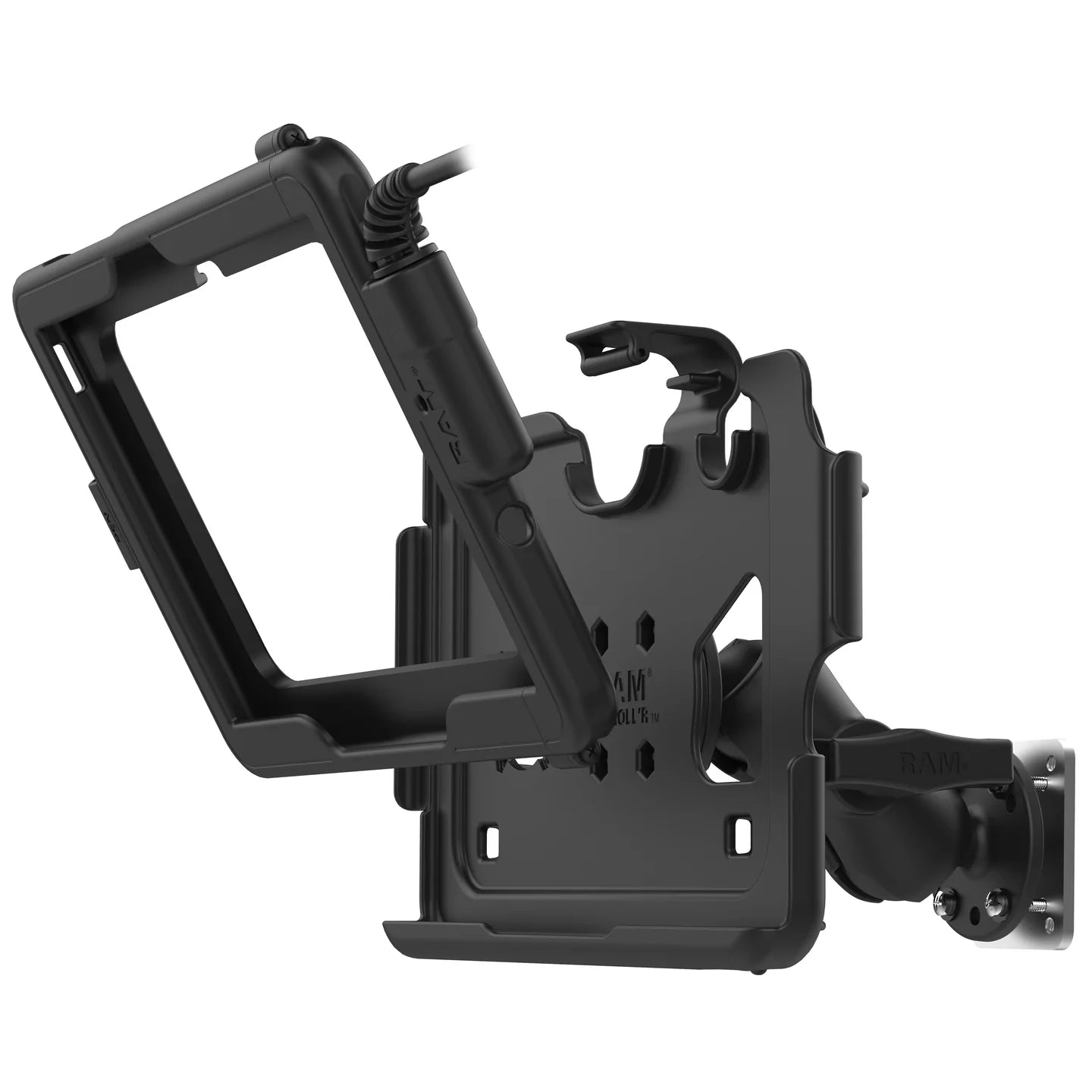

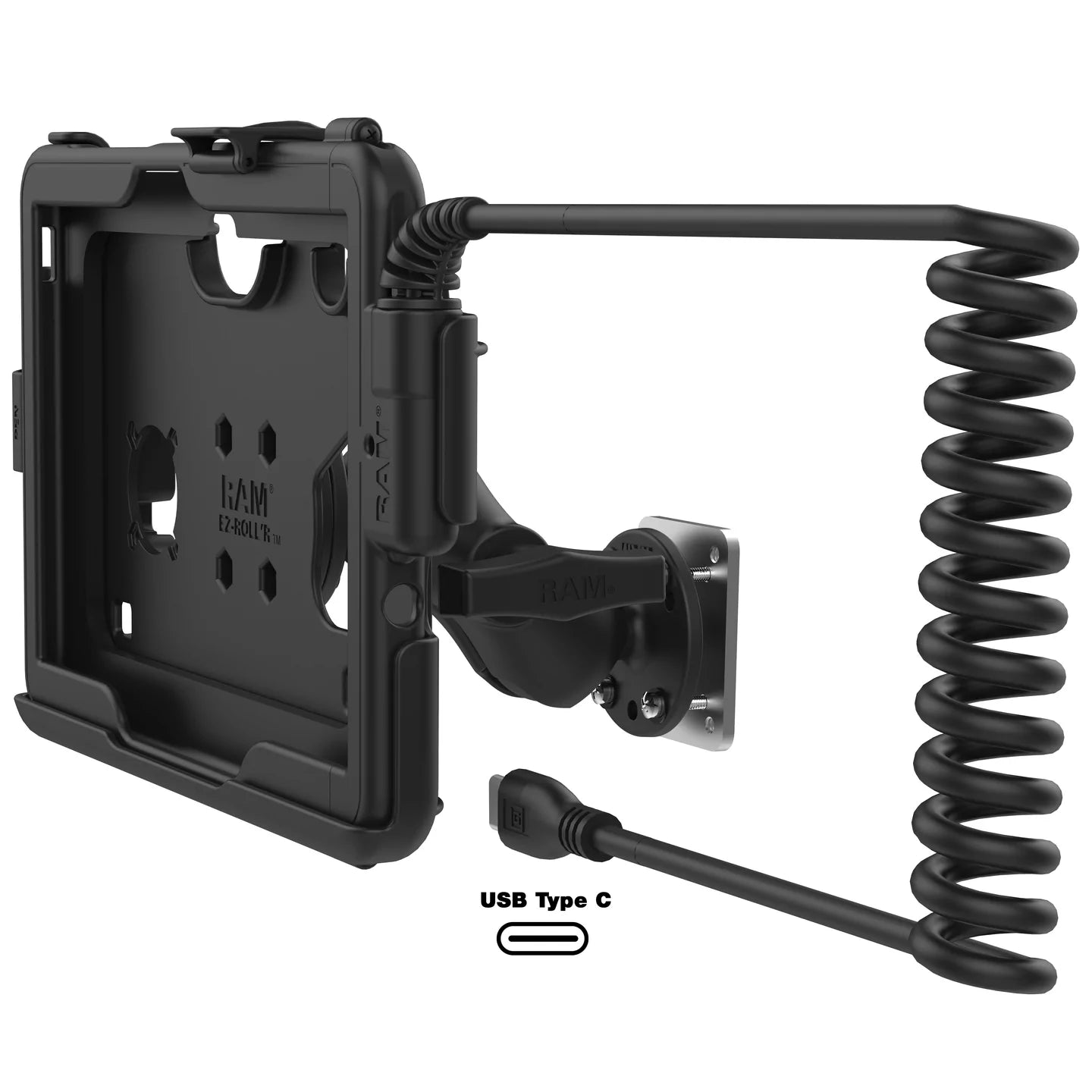

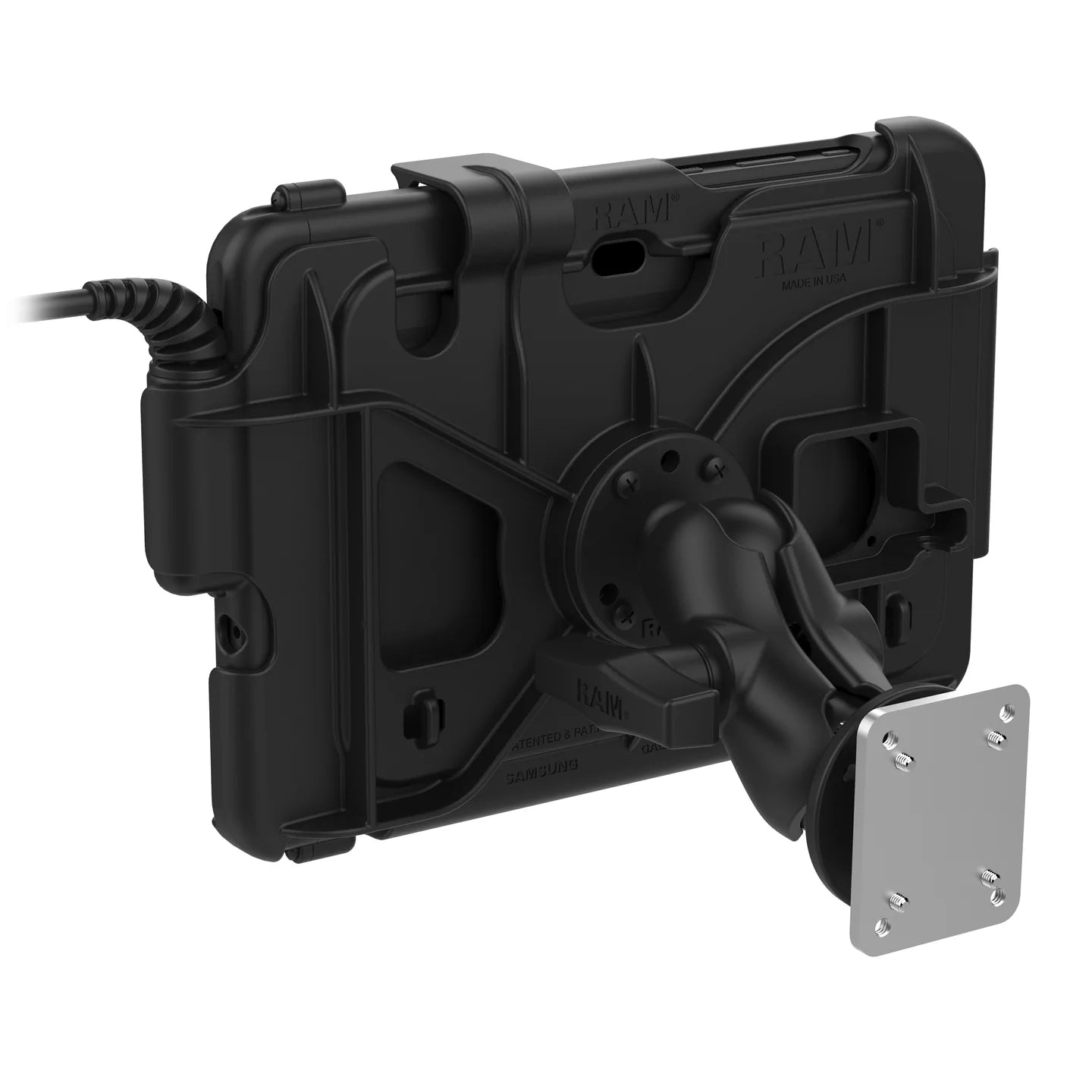

RAM® Tough-Case™ Bundle for Tab Active4 Pro with Power Delivery Charger - RAM-101B2-TC-SAM54C-V3FCU

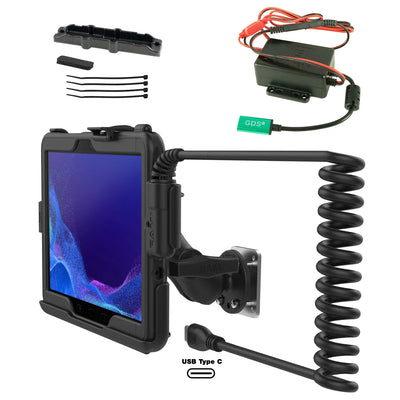

The RAM® Tough-Case™ bundle is a rugged mount including the RAM® Tough-Case™, Tough-Case™ holder, C size double ball mount, backing plate and Power Delivery Hardwire Charger. The RAM® Tough-Case™ bundle is a two-piece enclosure for the Samsung Galaxy Tab Active4 Pro that tethers the device inside of any vehicle with the help of the double ball mount and backing plate, meeting the demands of the transportation industry with ELD compliance and supports the device in No Battery Mode. This ultra-low cost bundle provides power to the device through a USB Type-C Male connector. The back of the tablet remains well exposed to allow heat to flow from the device to help maintain temperature levels. Unique features include access to the NFC reader while in the cradle for scanning NFC tags as well as the stylus. This complete mounting kit includes a 2.10" x 2.60" steel backing plate with #8-32 threaded holes, two 2.5” round ball plates, medium length double socket arm, and a GDS® Power Delivery Hardwire Charger – an ideal solution for providing power to the Samsung Galaxy Tab Active4 Pro. Get the Heat Out!™ with RAM® Tough-Case™.

• RAM^® Tough-Case^™ holder provides charging capabilities for the Samsung Galaxy Tab Active4 Pro in a RAM^® Tough-Case^™
• Includes RAM^® C size double mount, backing plate and Power Delivery Hardwire Charger for dashboard installation
• Tethered connection of tablet to vehicle with coiled cable and durable oversized strain relief
• Compartment on the back of the holder for optional cooling fan
• Integrated S Pen holder

HARDWARE INCLUDED:
Assembly Hardware
(1) 2.10" x 2.60" Steel Backing Plate
(4) #8-32 x 1" Screws
(4) #8 Split Lock Washers
(4) #8 Flat Washers
Modular Hardwire Charger
Cable Clamp Assembly

SOCKET TO SOCKET LENGTH:
2.5"

HOLE PATTERN:
4-Hole AMPS: 1.181" x 1.496"
3-Hole 120-Degree: 1.812" Diameter

BALL SIZE:
C Size (1.5")

WEIGHT CAPACITY:
Standard Use: 4 lbs
Heavy-Duty Use: 3 lbs

MATERIALS:
Marine-grade aluminum
High strength composite

PACKAGING TYPE:
Poly Bag

INPUT VOLTAGE:
12V - 24V (Vehicles)

OUTPUT VOLTAGE:
5V @ 3A (15W)
9V @ 3A (27W)
12V @ 3A (36W)
15V @ 2.5A (37.5W)

POWER OUTPUT:
37.5W Total

OUTPUT CURRENT:
3A max

INPUT CONNECTOR:
Female USB Type-C

INPUT CABLE LENGTH:
1.2 Meters including 2 Pole Flat Marine Connector

OUTPUT CABLE LENGTH:
150mm

OPERATING TEMPERATURE:
-20°C to +70°C

STORAGE TEMPERATURE:
-40°C to +85°C

COMPLIANCE:
Meets SAE J-1113 5a, Integrated Short Circuit Protection (SCP), Integrated Over Voltage Protection (OVP)

CERTIFICATIONS:
FCC, IC, CE RCM, WEEE, RoHS Compliant
USB Power Delivery 2.0 and 3.0 Support

WARRANTY:
3 year warranty

WEIGHT:
3.0 lb

• Samsung:

  Tab Active Pro
  Tab Active4 Pro
