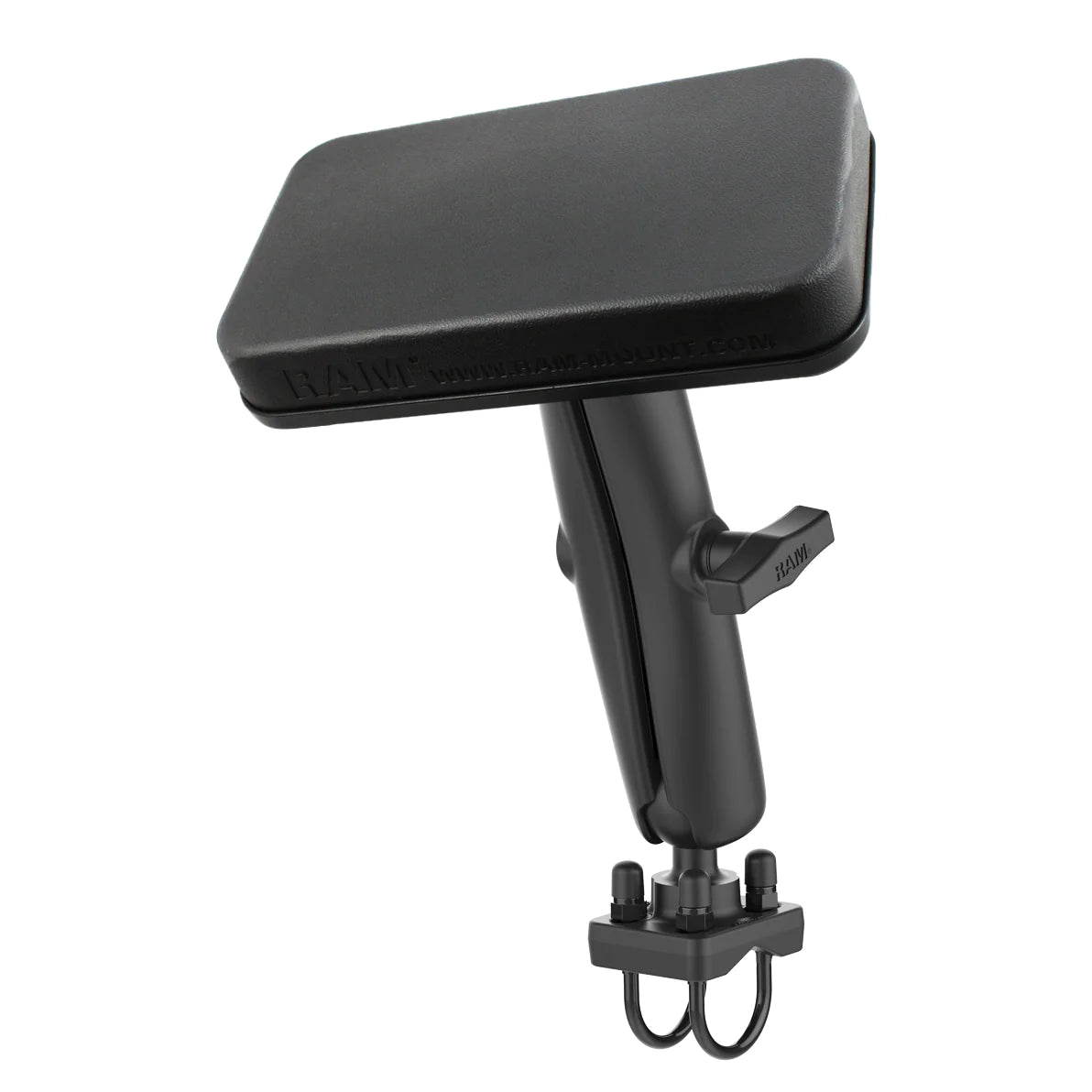

RAM® Double U-Bolt Mount with Back Rest for ATV's - C Size Medium - RAM-101U-D-235Z-BR1

The RAM-101U-D-235Z-BR1 consists of a long double socket arm, double u-bolt base that will fit rails from 1" to 1.25" in diameter and back rest pad for ATV's. Designed into the mount is a 1.5" diameter patented rubber ball and socket system with adjustment points at both socket ends of the arm.

HARDWARE INCLUDED:
Assembly Hardware
(2) 1/4"-20 U-Bolts for 1" - 1.25" Rails
(4) 1/4"-20 Nylock Nuts
(4) Rubber Caps

CLAMP RANGE:
1" - 1.25" diameter

SOCKET TO SOCKET LENGTH:
8"

BALL SIZE:
C Size (1.5")

WEIGHT CAPACITY:
Standard Use: 4 lbs
Heavy-Duty Use: 3 lbs

MATERIALS:
Marine-grade aluminum

PACKAGING TYPE:
Poly Bag

WEIGHT:
3.94 lb
