RAM-109V-2U

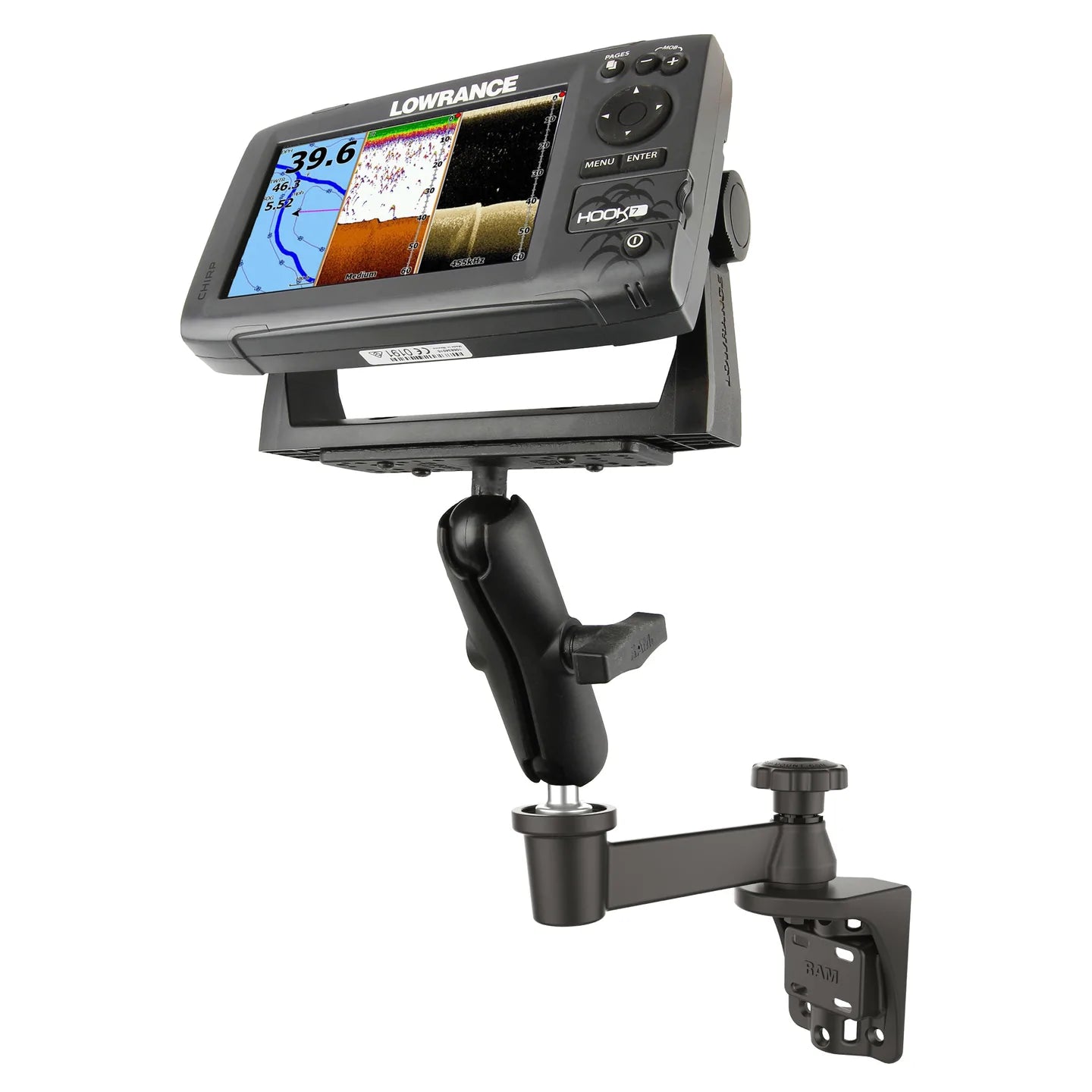

RAM® Vertical Swing Arm with Double Ball Mount - RAM-109V-2U

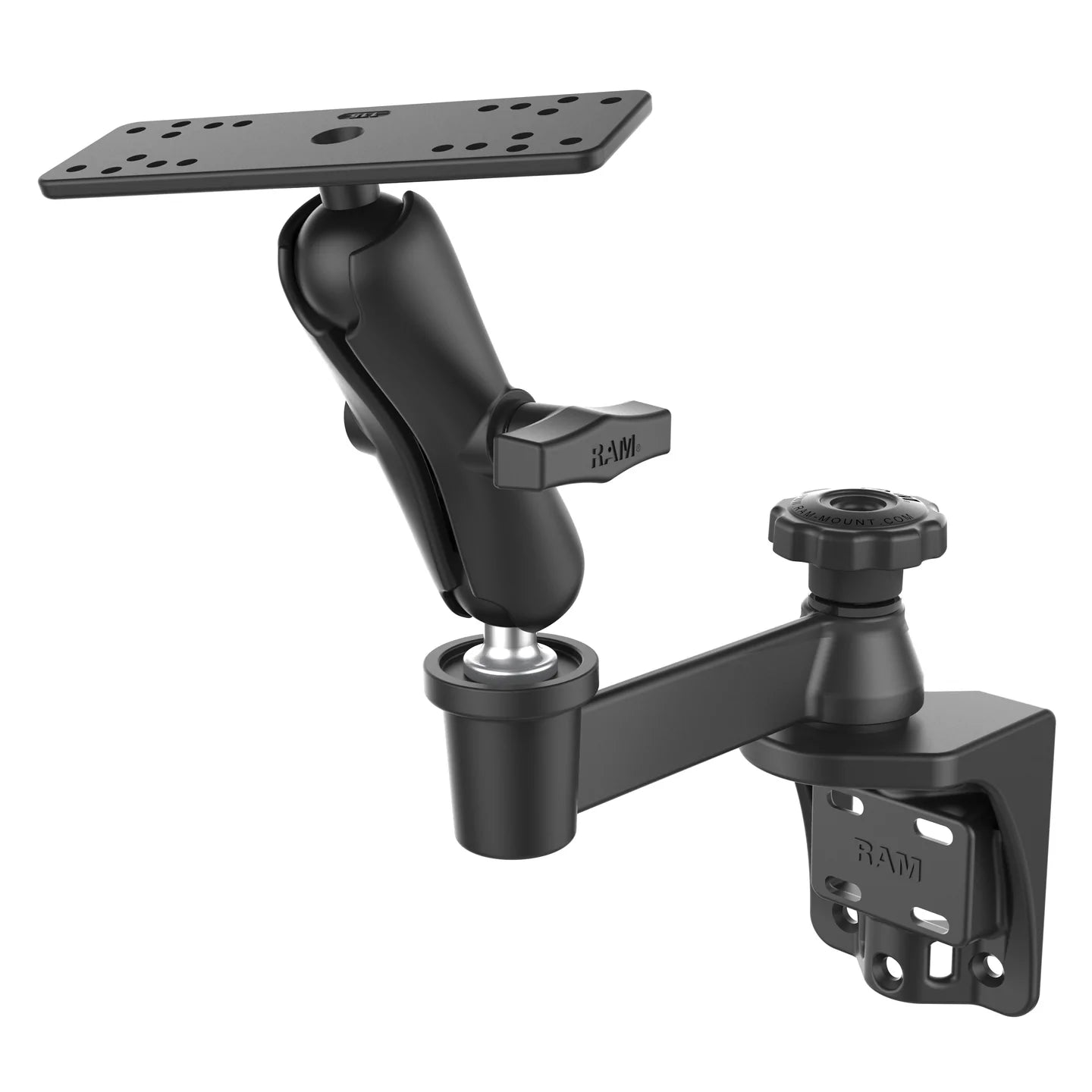

The RAM single swing and socket arm mount includes a 6" straight swing arm mounted on a vertical surface mounting base. At the end of the mount is a rectangular 6.25" x 2" top base. The bolt pivoting point of the mount allows a 360 degree rotation.

PRODUCT DIMENSIONS:
Overall Height: 8.89" Total Swing Arm Length: 6"

SOCKET TO SOCKET LENGTH:
4.66"

HOLE PATTERN:
See Drawing

BALL SIZE:
C Size (1.5")

WEIGHT CAPACITY:
Standard Use: 4 lbs Heavy-Duty Use: 3 lbs

MATERIALS:
Marine-grade aluminum

PACKAGING TYPE:
Poly Bag

WEIGHT:
3.29 lb

ADDITIONAL INFORMATION:
The included plate is a universal mounting bracket with a selection of mounting hole locations. In certain applications additional holes may need to be drilled for proper fit with your electronic device.

  • Garmin:

    ECHOMAP Plus 72cv
    ECHOMAP Plus 73cv
    ECHOMAP Plus 74cv
    ECHOMAP Plus 75cv
    ECHOMAP Plus 77cv
    ECHOMAP UHD2 52cv
    ECHOMAP UHD2 72cv
    GPSMAP 722
    GPSMAP 722xs
    GPSMAP 723
    GPSMAP 723xsv
    GPSMAP 742
    GPSMAP 742xs
    GPSMAP 743
    GPSMAP 743xsv
    Striker Plus 5cv
    Striker Vivid 5cv
    Striker Plus 7cv
    Striker Plus 7sv
    Striker Vivid 5cv
    Striker Vivid 7cv
    Striker Vivid 7sv
    other Fishfinders and GPS Chartplotters

  • Lowrance

    HDS Carbon 7
    HDS LIVE 7
    other Fishfinders and GPS Chartplotters

  • Humminbird

    Fishfinders and GPS Chartplotters

  • Raymarine

    Fishfinders and GPS Chartplotters
