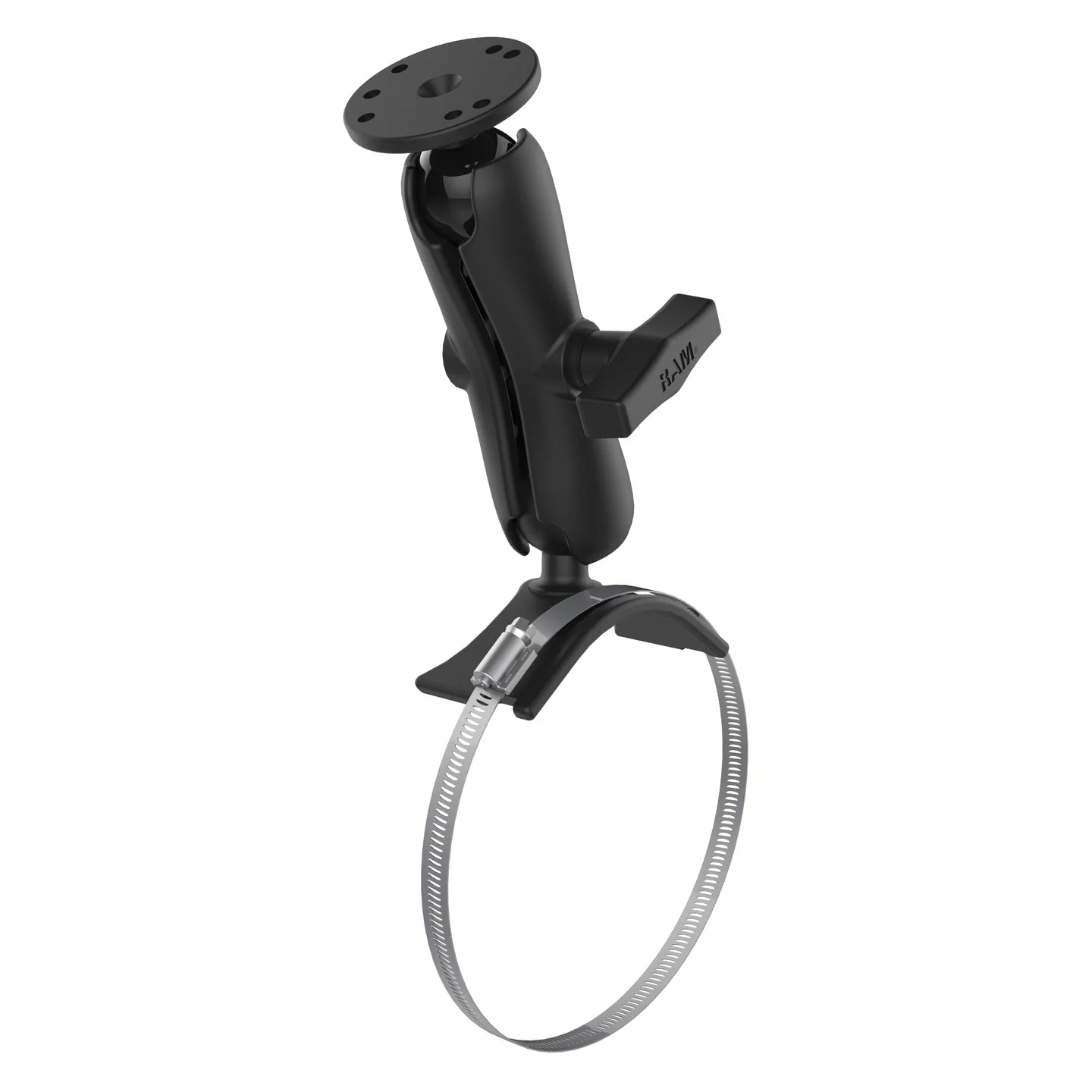

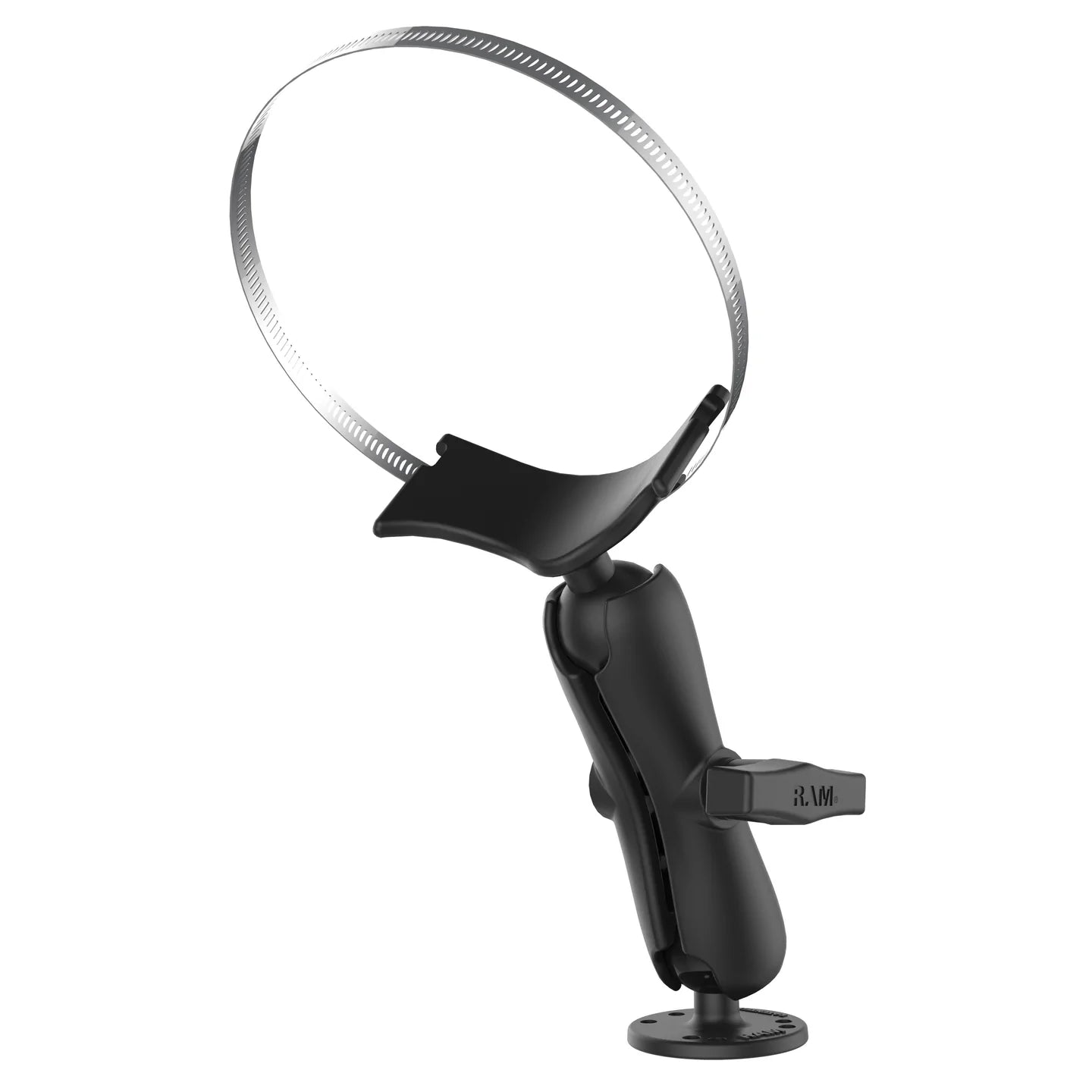

RAM® Saddle Strap Mount for Lanterns and Large Posts - RAM-118U

The RAM-118U consists of a double socket arm, 2.5" diameter round base with the universal AMPS hole pattern and large "U" shaped cradle that can strap around a 4" to 5.5" pipe. Originally design for strapping to a lantern base, this mount can also be used as a base to strap to a round rail.

HARDWARE INCLUDED:
(1) #88 Worm Drive Strap Clamp

CLAMP RANGE:
4" - 5.5" diameter

SOCKET TO SOCKET LENGTH:
4.66"

BALL SIZE:
C Size (1.5")

WEIGHT CAPACITY:
Standard Use: 4 lbs Heavy-Duty Use: 3 lbs

MATERIALS:
Marine-grade aluminum

PACKAGING TYPE:
Poly Bag

WEIGHT:
1.25 lb
