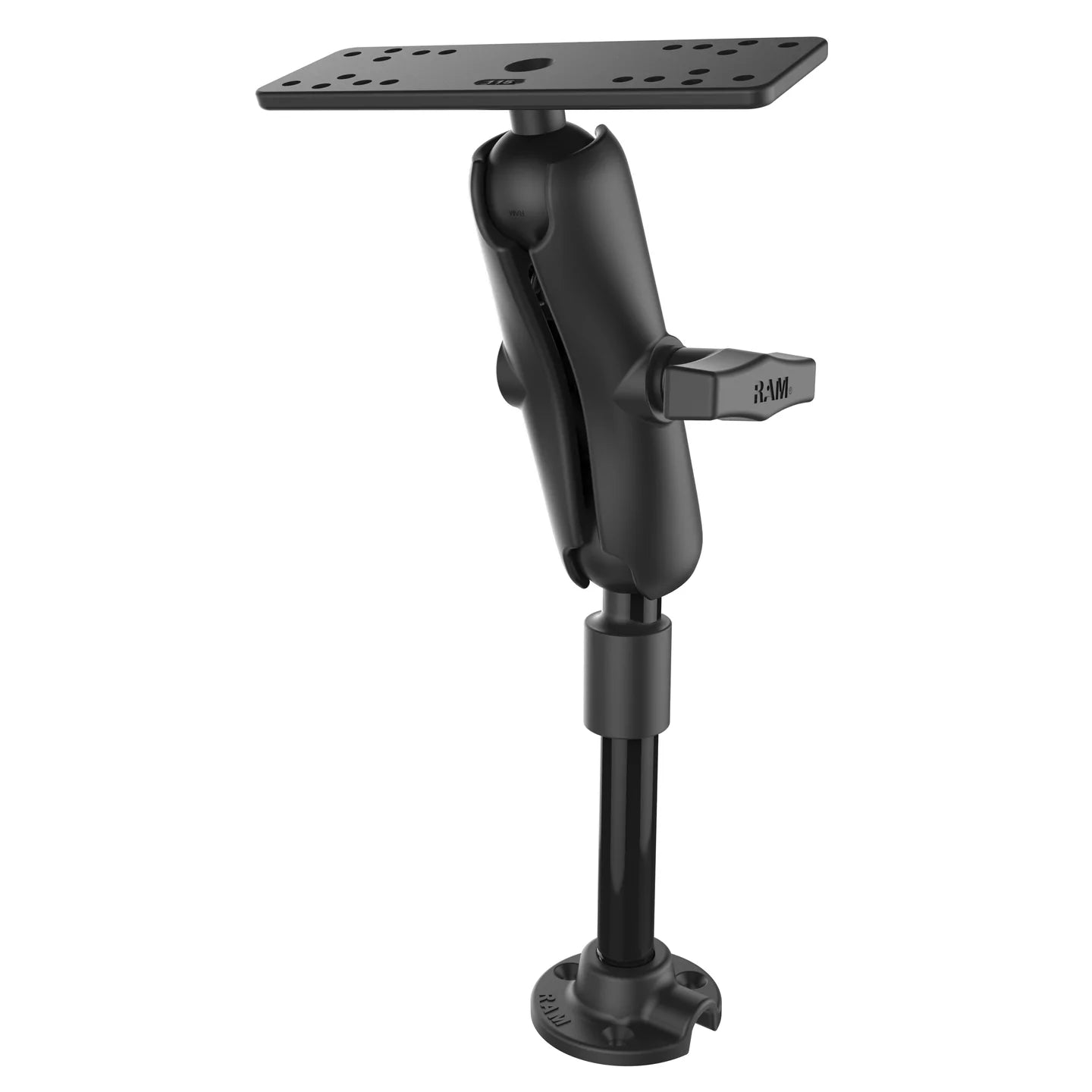

RAM® 6" Long 90° NPT Pipe Mount with Double Ball Mount - RAM-134-90

This mount connects directly to the floor, or any mounting surface with the 2.5" diameter base which is at 90, 45 or 0 degrees to the 6" long vertical pole. At the top of the pole is a 1.5" ball attached to the socket of a standard 4 5/8" 1.5" double socket arm. There is a 6.25" x 2" marine mount plate on top. Mounting hardware for the base is not included. The base unscrews from the pole, allowing the mount to be moved to other locations.

SOCKET TO SOCKET LENGTH:
4.66"

HOLE PATTERN:
3-Hole 120-Degree: 1.812" Diameter See Drawing

BALL SIZE:
C Size (1.5")

WEIGHT CAPACITY:
Standard Use: 4 lbs Heavy-Duty Use: 3 lbs

MATERIALS:
Marine-grade aluminum

PACKAGING TYPE:
Poly Bag

WEIGHT:
2.9 lb

ADDITIONAL INFORMATION:
The included plate is a universal mounting bracket with a selection of mounting hole locations. In certain applications additional holes may need to be drilled for proper fit with your electronic device.
