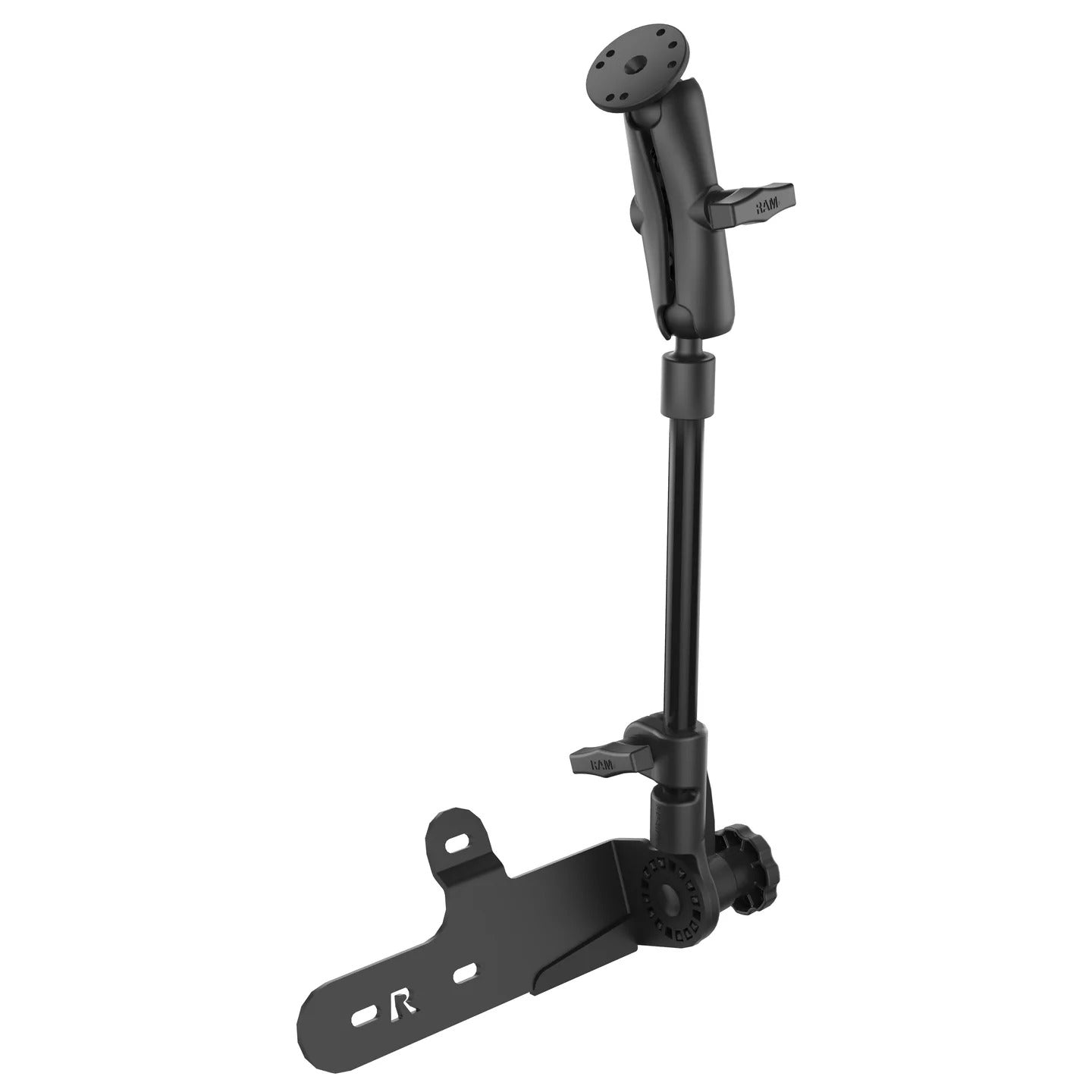

RAM® Pod HD™ Vehicle Mount for ’07-’19 Mercedes Sprinter Van - RAM-316-HD-18-202-SPRU

Blending the best of versatility, strength and installation ease, the RAM® Pod HD™ is a workhorse for fleet transportation and serious consumers alike. This version of the RAM® Pod HD™ vehicle mount is designed for 2007-2019 Mercedes Sprinter vans, and is RAM® Mounts Compatible™ with device holders for tablets, small laptops, and other devices. Requiring minimal space in the vehicle cab, the RAM® Pod HD™ can be removed without the use of tools.

HARDWARE INCLUDED:
Assembly Hardware
(3) 1.68" Stand-Offs
(3) M8-1.25 x 70mm Hex Bolts
(4) M8 Steel Washers
(3) 5/16" Lock Washers
(1) M8-1.25 Nut
Stabilizer Foot

PRODUCT DIMENSIONS:
Height Range: 24.75" - 31.75"

SOCKET TO SOCKET LENGTH:
4.66"

HOLE PATTERN:
4-Hole AMPS: 1.181" x 1.496"
3-Hole 120-Degree: 1.812" Diameter

PLATE SIZE:
See Drawing

BALL SIZE:
C Size (1.5")

WEIGHT CAPACITY:
Standard Use: 4 lbs
Heavy-Duty Use: 3 lbs

MATERIALS:
Powder coated steel
Marine-grade aluminum

PACKAGING TYPE:
Poly Bag

WEIGHT:
4.72 lb

• Mercedes:

  Sprinter Van (2007-2019)

  RAM® 1/2" NPT Hole and Ratchet Adapter with Male Teeth - RAM-284U

RAM® 18" Long 1/2" NPT Male Threaded Pipe - RAM-PA8218

RAM® 1/2" NPT Female Threaded Hole with Ball - RAM-218-1U

  RAM® Double Socket Arm - C Size Medium - RAM-201U

  RAM ^® Round Plate with Ball - C Size - RAM-202U

  RAM® Pin-Lock™ Security Kit for RAM® Pod HD™ - RAP-S-KNOB-316HD
