      Home / Products / RAM 4" Max Width Clamp Base with D Size 2.25" Diameter Ball - RAM-D-247U-4
      RAM 4" Max Width Clamp Base with D Size 2.25" Diameter Ball - RAM-D-247U-4 - OC Mounts
      RAM 4" Max Width Clamp Base with D Size 2.25" Diameter Ball - RAM-D-247U-4 - OC Mounts
      RAM 4" Max Width Clamp Base with D Size 2.25" Diameter Ball - RAM-D-247U-4 - OC Mounts
      RAM 4" Max Width Clamp Base with D Size 2.25" Diameter Ball - RAM-D-247U-4 - OC Mounts

      RAM-D-247U-4

      RAM 4" Max Width Clamp Base with D Size 2.25" Diameter Ball - RAM-D-247U-4

      $57.99 $63.49

      In Stock  - Ships for Free!

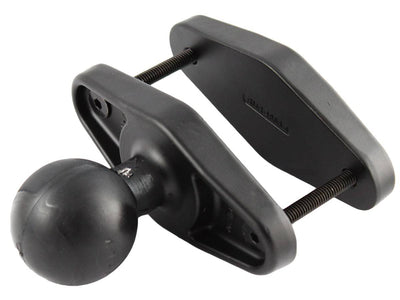

      This square post mount is ideal for forklift mounting and consists of a 4" clamp base with a D size 2.25" ball. Attach any length D size socket arm, D size ball adapter and a device holder of your choosing for an ultra-rugged mounting solution for your forklift.

      While the base can support up to a maximum post width of 4", it can support any lesser width by rotating the base on the post, bringing the mounting bolts flush against the post.

      Hardware Included: (2) 5/16"-18 x 3" Machine Screws
      (2) 5/16"-18 Nylock Nuts

      Clamp Range:
      4" max width

      Ball Size:
      D Size (2.25")

      Weight Capacity:
      Standard Use: 6 lbs
      Heavy-Duty Use: 5 lbs

      Materials:
      Marine-grade aluminum

      Packaging type:
      Poly Bag

      Weight:
      1.5 lb

      Compatible Arms and Mounts

      RAM Medium Length Double Socket Arm for D Size 2.25" Balls - RAM-D-201URAM Medium Length Double Socket Arm for D Size 2.25" Balls - RAM-D-201U

      RAM Vertical Mounting Base With Single Socket D Size 2.25" Swing Arm - RAM-D-162V-MC3RAM Vertical Mounting Base With Single Socket D Size 2.25" Swing Arm - RAM-D-162V-MC3

      RAM Horizontal Mounting Base With Single Swing Arm And D Size 2.25" Ball Socket - RAM-D-109HS-4URAM Horizontal Mounting Base With Single Swing Arm And D Size 2.25" Ball Socket - RAM-D-109HS-4U

      RAM Short Length Double Socket Arm for D Size 2.25" Balls - RAM-D-201U-CRAM Short Length Double Socket Arm for D Size 2.25" Balls - RAM-D-201U-C

      RAM Double Socket Arm With RAM® Pin-Lock™ Security Nut And Key Knob For D Size 2.25" Balls - RAM-D-201-SURAM Double Socket Arm With RAM® Pin-Lock™ Security Nut And Key Knob For D Size 2.25" Balls - RAM-D-201-SU

      RAM Long Length Double Socket Arm For D Size 2.25" Balls - RAM-D-201U-ERAM Long Length Double Socket Arm For D Size 2.25" Balls - RAM-D-201U-E

      RAM Double Socket Arm With Jam Nut For D Size 2.25" Balls - RAM-D-201U-MI1RAM Double Socket Arm With Jam Nut For D Size 2.25" Balls - RAM-D-201U-MI1

      RAM HORZ. SWING ARM SYSTEM W/O BALL BASE - RAM-D-162H-MC3RAM HORZ. SWING ARM SYSTEM W/O BALL BASE - RAM-D-162H-MC3

      RAM Short Double Socket Arm With Jam Nut For D Size 2.25" Balls - RAM-D-201U-C-MI1RAM Short Double Socket Arm With Jam Nut For D Size 2.25" Balls - RAM-D-201U-C-MI1
